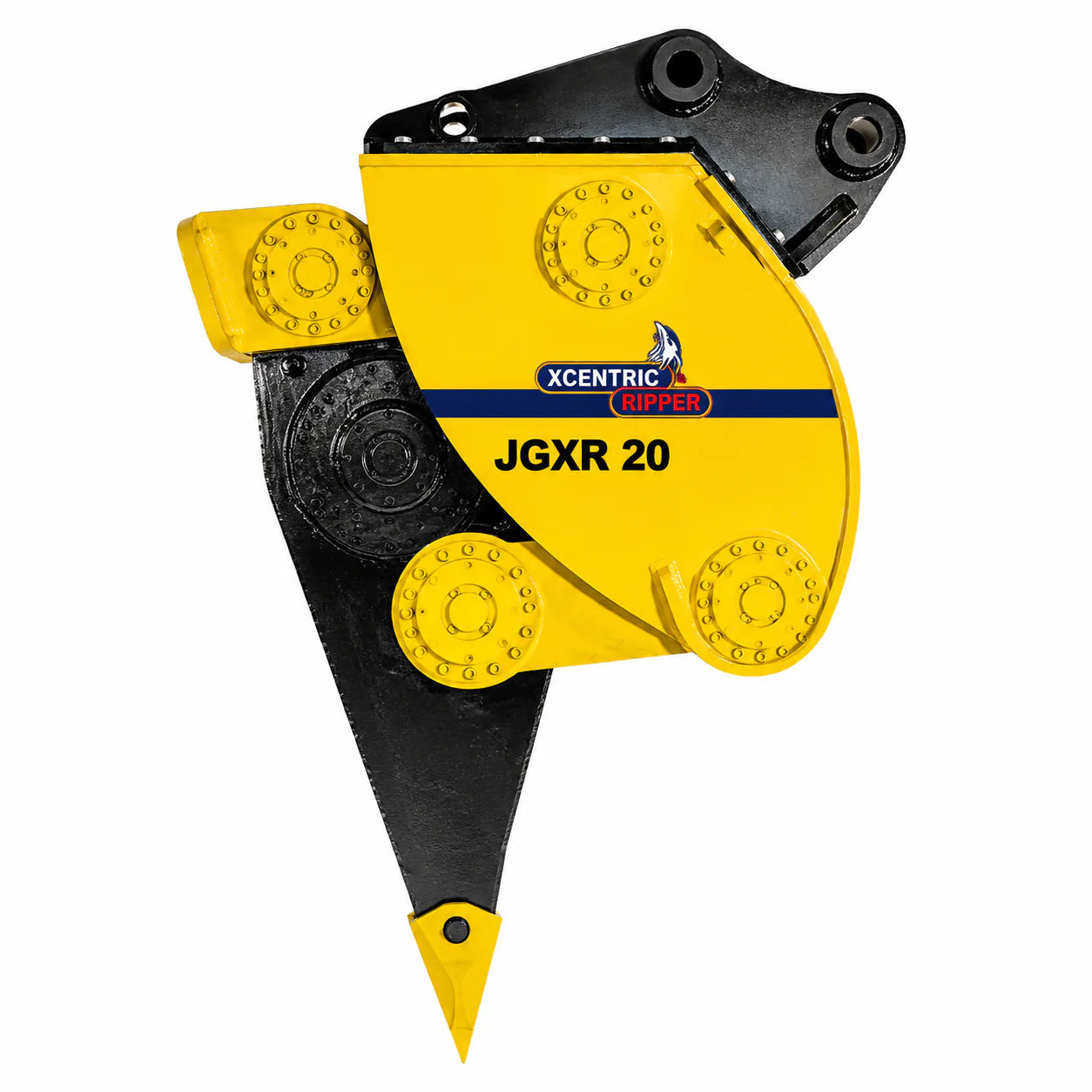

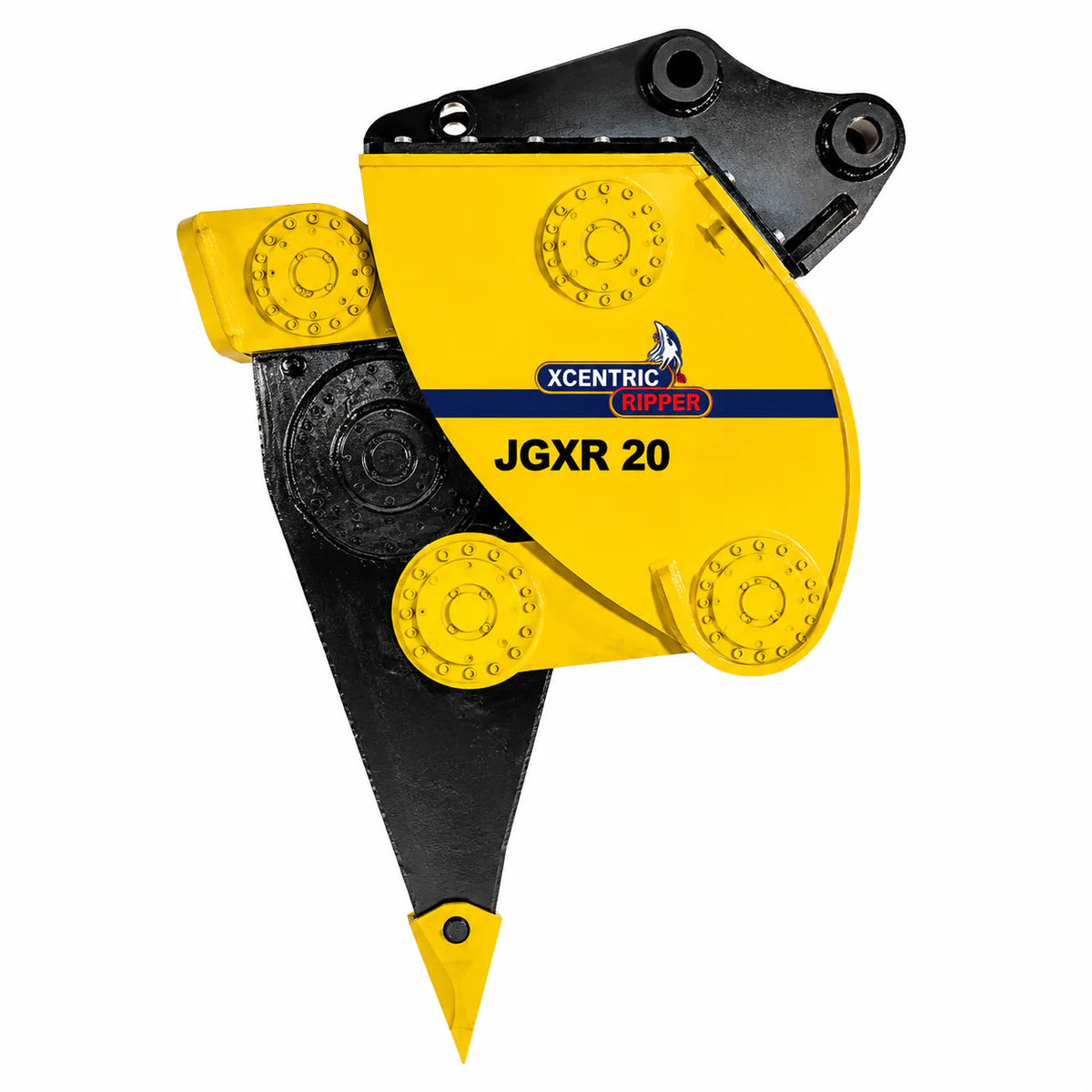

JGXR-20 Xcentric Ripper
The Montabert JGXR-20 Xcentric Ripper is engineered for 18 to 23 metric ton excavators and delivers exceptional rock excavation and demolition performance with production rates significantly higher than traditional hydraulic breakers. Designed for trenching, quarry applications, demolition, and infrastructure projects, the JGXR-20 combines durability, low maintenance requirements, and efficient hydraulic performance for demanding excavation environments.
Overview
Designed for efficient rock excavation and demolition work, the JGXR-20 Xcentric Ripper delivers powerful ripping force while reducing operating costs, vibration, and maintenance compared to conventional breaker systems. Manufactured from wear-resistant steel and designed for severe-duty applications, the JGXR-20 performs reliably in quarry, trenching, demolition, and excavation environments.
Key Features
- Up to 2–5 times greater production than hydraulic breakers.
- Extremely low maintenance with extended lubrication intervals.
- Operates underwater without special preparation requirements.
- Reduced fuel consumption and emissions per ton produced.
- Minimal noise and vibration levels during operation.
- Heavy-duty wear-resistant steel construction.
- Reduced wear parts consumption and downtime.
Built for Versatile Applications
The JGXR-20 is ideal for mid-size excavators working in demanding applications including utility trenching, quarry work, frozen ground, demolition, landscaping, and infrastructure construction where drilling and blasting may not be practical.
Common Applications
The Montabert JGXR-20 Xcentric Ripper is designed for severe-duty excavation and demolition environments.
Utility Trenching
Efficient excavation for utility and pipeline installation projects.
Rock Excavation
Breaks layered and fractured rock formations efficiently.
Demolition
Supports concrete and rock demolition applications.
Frozen Ground
Ideal for difficult ground conditions and excavation work.
Quarry Work
Reliable production performance in quarry and aggregate applications.
Infrastructure Work
Reliable performance in municipal and construction projects.
JGXR-20 Specifications
Review key operating, hydraulic, dimensional, and excavator compatibility specifications for the Montabert JGXR-20 Xcentric Ripper.
| Specification | JGXR-20 |
|---|---|
| Excavator Class | 18 – 23 mt |
| Weight w/ Bracket | 5,512 lbs / 2,500 kg |
| Weight w/o Bracket | 4,850 lbs / 2,200 kg |
| Frequency | 1,300 – 1,400 bpm |
| Hydraulic Working Pressure | 2,610 – 2,900 psi / 18 – 20 MPa |
| Hydraulic Return Pressure | 90 psi / 0.6 MPa |
| Case Drain Max Pressure | 60 psi / 0.4 MPa |
| Hydraulic Oil Flow | 42 GPM / 160 L/min |
| Dimension L | 95 in / 2,400 mm |
| Dimension W | 31 in / 780 mm |
| Dimension H | 69 in / 1,750 mm |
Specifications are based on current Montabert Xcentric Ripper literature and technical specification sheets. Contact BHE Attachments to verify excavator compatibility, hydraulic requirements, and mounting configuration prior to ordering.
Performance Advantages
The JGXR-20 provides exceptional production efficiency while reducing operating costs compared to drilling, blasting, and hydraulic breaker applications. Its rugged design and low-maintenance operation help maximize uptime in severe-duty environments.
Need Compatibility Assistance?
Our team can help verify excavator compatibility, hydraulic requirements, mounting configurations, and ripper sizing for your specific machine and application.
Ready to quote the JGXR-20?
Brown's Heavy Equipment can help you review excavator compatibility, hydraulic requirements, mounting configurations, and pricing for the Montabert JGXR-20 Xcentric Ripper.
