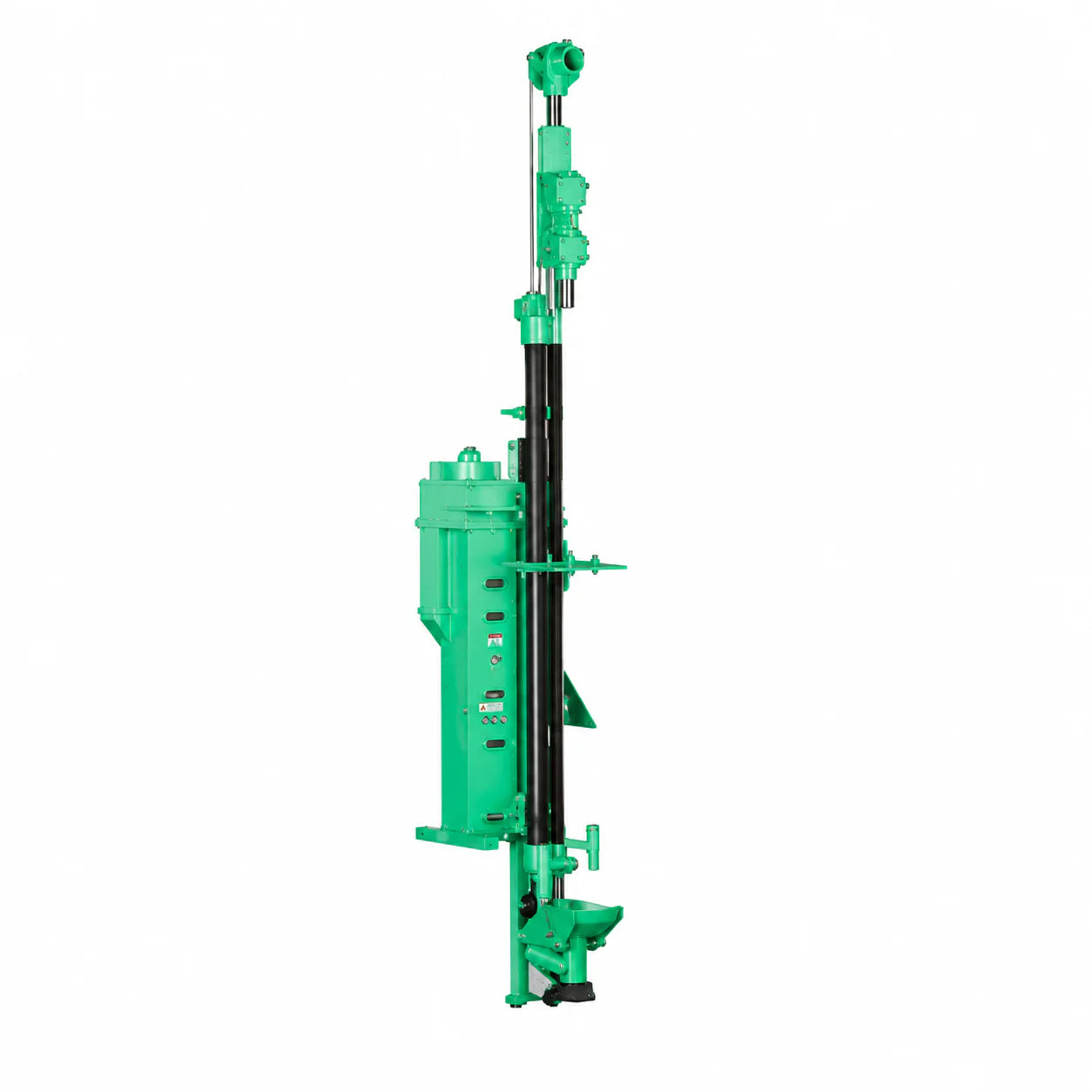

CPA295 Drilling Attachment
The Montabert CPA295 Drilling Attachment is engineered for large excavators working in quarry drilling, high-production drill & blast operations, anchoring, utility work, and infrastructure drilling applications. Designed for maximum drilling productivity and low cost per meter performance, the CPA295 combines Montabert HC95 drifter technology with excavator versatility for demanding drilling environments.
High-Production Drilling Performance
The CPA295 drilling attachment transforms compatible excavators into high-performance drilling carriers capable of handling demanding quarry, mining, and infrastructure drilling applications. Designed for long-hole drilling capability and maximum productivity, the CPA295 helps contractors reduce fleet complexity while improving drilling efficiency across difficult jobsites.
Key Features
- Designed for high-production drill & blast, anchoring, and infrastructure drilling applications.
- Compatible with quick couplers for faster attachment changes.
- Montabert HC95 drifter delivers high drilling efficiency with low cost per meter.
- Automatic hydraulic parameter adjustment improves drilling precision and productivity.
- Supports air or water injection for cuttings evacuation.
- Remote control capability available for increased operational flexibility.
- Low maintenance requirements help maximize machine uptime.
- Allows excavators to perform multiple jobsite functions with one carrier platform.
Built for Severe-Duty Applications
The CPA295 is engineered for contractors requiring larger hole diameters and deep drilling capability in difficult operating conditions. Its combination of HC95 drifter technology, excavator flexibility, and efficient hydraulic control systems helps deliver reliable drilling performance while reducing overall operating costs.
Common Applications
The CPA295 drilling attachment is designed for demanding high-production drilling operations across quarrying, mining, utility, and infrastructure projects.
Drill & Blast
High-production drilling performance for quarry and mining blast hole applications.
Rock Bolting
Supports reinforcement and stabilization drilling operations in difficult ground conditions.
Anchoring
Ideal for large anchoring and roadside stabilization projects.
Utility Work
Suitable for demanding underground utility and infrastructure drilling operations.
High Reach Drilling
Designed for difficult access and long-hole drilling applications.
Heavy Quarry Work
Reliable drilling performance for severe-duty quarry and aggregate production environments.
CPA295 Specifications
Review the key specifications for the Montabert CPA295 drilling attachment.
| Specification | CPA295 |
|---|---|
| Carrier Weight Range (T) | 25 – 35 |
| Operating Weight (kg) | 2,740 |
| Operating Weight (lb) | 6,040 |
| Oil Flow Range (L/min) | 185 – 195 |
| Oil Flow Range (GPM) | 48.9 – 51.5 |
| Drifter Model | HC95 |
| Hole Diameter (mm) | 76 – 105 |
| Hole Diameter (in) | 3 – 4.1 |
| Maximum Hole Depth (m) | 21 |
| Maximum Hole Depth (ft) | 68.9 |
Specifications may vary depending on excavator configuration, hydraulic capabilities, drilling setup, and application requirements. Contact BHE Attachments to confirm compatibility with your carrier and drilling application.
Why Choose the CPA295?
The CPA295 delivers powerful long-hole drilling performance while maximizing excavator versatility across severe-duty jobsite applications. Its combination of Montabert HC95 drifter technology, automatic drilling adjustment, and flexible carrier compatibility helps improve drilling productivity while reducing overall operating costs.
Need Compatibility Assistance?
Send us your excavator make, model, hydraulic flow, and drilling application requirements. Our team can help determine the right CPA295 drilling attachment configuration for your machine and operating environment.
Ready to quote a Montabert CPA295 drilling attachment?
Brown's Heavy Equipment can help you review drilling attachment compatibility, compare drilling configurations, and request pricing for the right CPA drilling solution for your operation.
