HCM 750 M

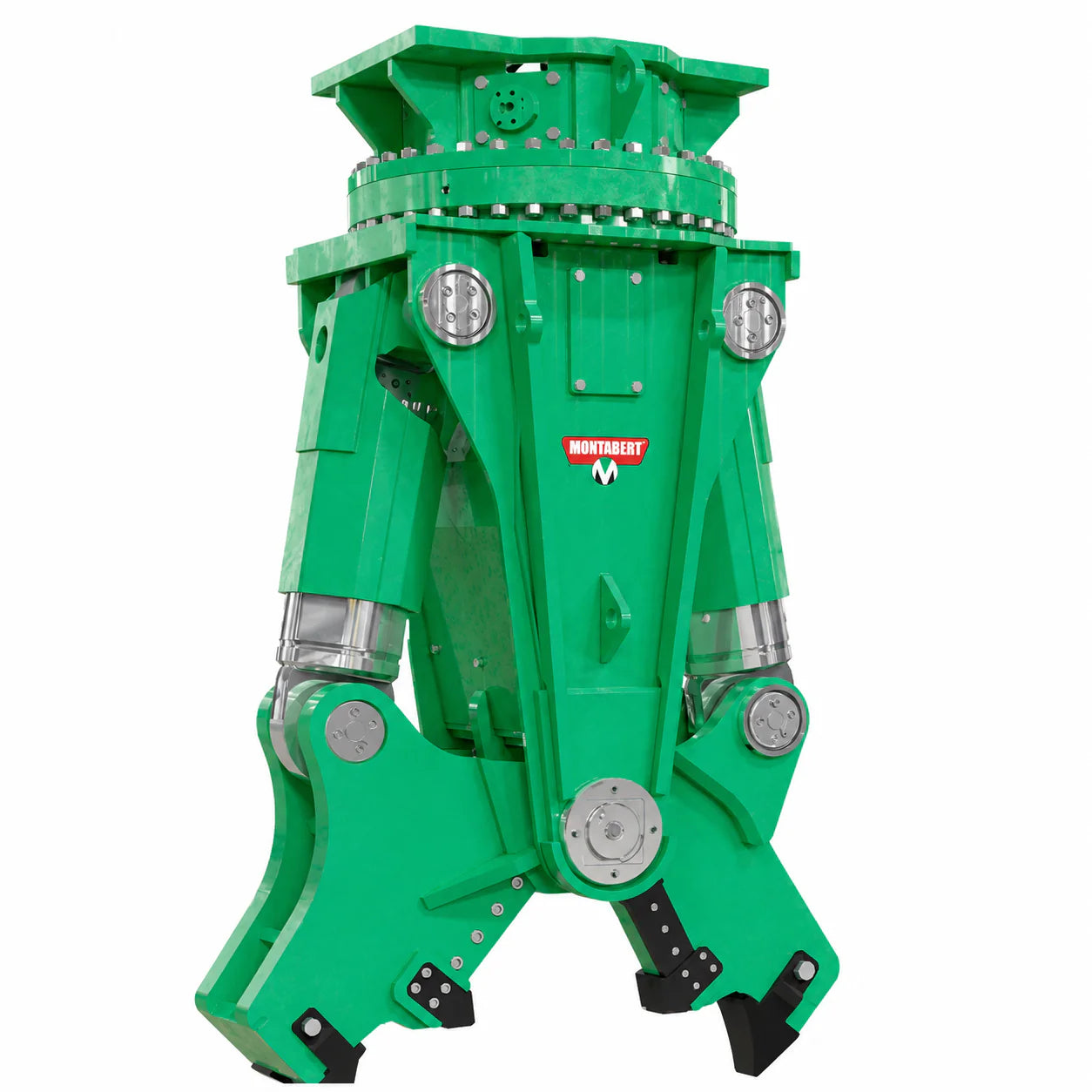

The Montabert HCM 750 M Multiprocessor is engineered for 25 to 40 ton carriers performing demolition, recycling, concrete processing, and infrastructure dismantling applications. Featuring a multifunction jaw design, continuous hydraulic rotation, and powerful crushing capability, the HCM 750 M delivers versatile material processing performance for demanding heavy-duty jobsites.
Overview
The HCM 750 M is designed to provide versatile crushing and cutting performance for demolition and recycling contractors. Its multifunction jaws are engineered to shear scrap laterally and longitudinally while front teeth maximize crushing performance for efficient material separation and recycling operations.
Key Features
- Standard 360° continuous hydraulic rotation for precise positioning.
- Multifunction jaws designed for cutting, crushing, and material separation.
- Two protected inverted cylinders with rod feed for symmetrical crushing force.
- Front crushing teeth designed for concrete and infrastructure demolition.
- High-strength hardened steel blades and teeth for long service life.
- Replaceable and reversible wear components for simplified maintenance.
- Designed for demolition, recycling, and concrete processing applications.
Built for Heavy-Duty Material Processing
The HCM 750 M delivers dependable performance in demolition, recycling, infrastructure dismantling, and concrete processing applications where versatile crushing and cutting capability are required for larger-scale operations.
Common Applications
The Montabert HCM 750 M is commonly used in demolition, recycling, concrete processing, and infrastructure dismantling applications.
Concrete Processing
Break down reinforced concrete structures efficiently for recycling and disposal.
Infrastructure Demolition
Handle demanding infrastructure dismantling and controlled demolition applications.
Material Recycling
Separate concrete and steel efficiently for material recovery operations.
Scrap Cutting
Process scrap and embedded steel during demolition and recycling work.
General Demolition
Support building demolition and structural dismantling applications.
All Materials Processing
Handle a wide range of demolition and recycling materials efficiently.
HCM 750 M Specifications
Review key carrier, hydraulic, and attachment specifications for the Montabert HCM 750 M Multiprocessor - Multifunction Jaw.
| Specification | HCM 750 M |
|---|---|
| Carrier Weight Range | 25 - 40 Tons |
| Operating Weight Without Adapter Plate | 2,790 kg / 6,151 lbs |
| Closing Force | 90 - 350 Tons |
| Oil Flow Range | 200 - 300 L/min / 52.8 - 79.2 GPM |
| Opening & Closing Pressure | 380 bar / 5,510 PSI |
| Rotation Flow | 45 L/min / 11.9 GPM |
| Rotation Pressure | 90 bar / 1,305 PSI |
| Jaw Width | 593 mm / 23.3 in |
| Jaw Depth | 625 mm / 24.6 in |
Specifications are based on the current Montabert HCM 750 M product literature and specification sheet. Contact BHE Attachments to confirm carrier compatibility, mounting requirements, and hydraulic setup before ordering.
Why Choose the HCM 750 M?
The HCM 750 M combines durable construction, versatile crushing capability, and efficient material separation performance for demolition and recycling contractors. Its multifunction jaw design allows operators to process concrete, steel, and demolition material efficiently using a single attachment.
