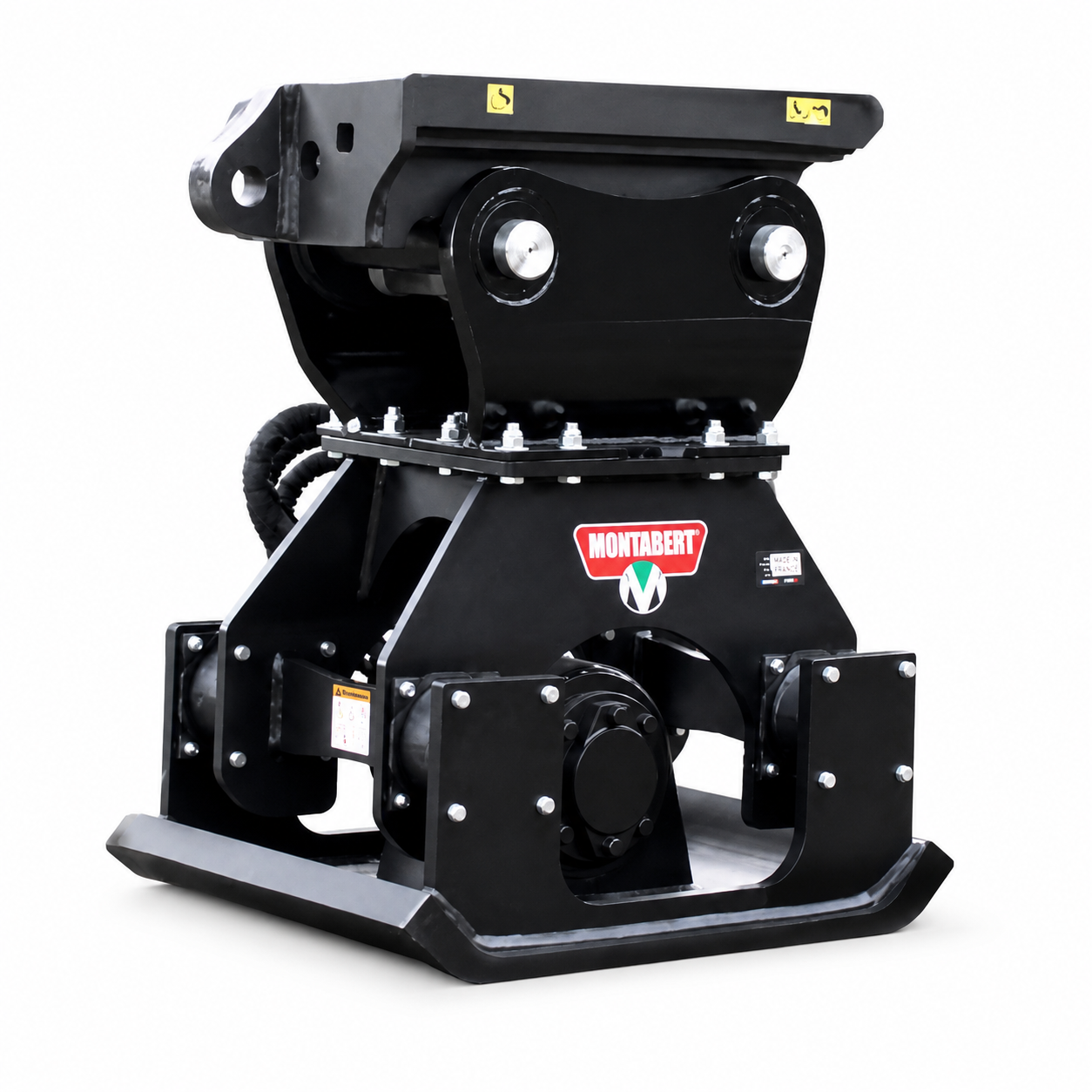

TR14 Plate Compactor
The Montabert TR14 hydraulic plate compactor is designed for 5 to 15 ton carriers and delivers powerful soil compaction performance with minimal maintenance requirements and efficient hydraulic operation. Featuring oversized eccentric technology, durable vibration isolation, and rugged construction, the TR14 is ideal for trench compaction, foundation preparation, utility work, and general construction applications.
Overview
The Montabert TR14 plate compactor combines dependable vibration performance, efficient hydraulic power, and durable construction for mid-sized excavators and carrier machines. Built with oil bath bearings, integral baseplate construction, and heavy-duty isolators, the TR14 reduces maintenance while delivering reliable compaction productivity in demanding working environments.
Key Features
- Oversized eccentric system produces powerful compaction force.
- Oil bath bearings eliminate routine greasing requirements.
- Heavy rubber isolators reduce vibration transfer to the carrier.
- Integral baseplate and housing minimize maintenance points.
- Quick installation kits simplify excavator hookup.
- Suitable for vibratory pile driving applications.
- Heavy-duty construction designed for demanding jobsite conditions.
Built for Utility & Construction Applications
The TR14 is engineered for contractors requiring reliable compaction performance for utility trenching, backfill compaction, foundation work, landscaping, and general construction projects.
Common Applications
The Montabert TR14 plate compactor is commonly used across utility, excavation, and construction applications.
Trench Compaction
Efficient backfill compaction for trenching and utility projects.
Utility Installation
Reliable soil compaction around underground utilities.
Foundation Preparation
Compacts soil for concrete pads and structural foundations.
Road Construction
Supports roadway preparation and infrastructure work.
Pile Driving
Can be used for signposts and lightweight pile installations.
General Construction
Ideal for demanding excavation and compaction applications.
TR14 Specifications
Review key carrier, hydraulic, and operating specifications for the Montabert TR14 hydraulic plate compactor.
| Specification | TR14 |
|---|---|
| Recommended Carrier Weight | 5 – 15 Tons |
| Centrifugal Force | 7,000 – 14,500 lbs / 3,175 – 6,575 kg |
| Cycles Per Minute | 1,800 – 2,600 RPM |
| Motor A Oil Flow Range | 12 – 18 GPM / 46 – 69 LPM |
| Motor B Oil Flow Range | 24 – 30 GPM / 91 – 114 LPM |
| Working Weight | 850 lbs / 385 kg |
| Baseplate Dimensions | 23 × 35 in / 584 × 889 mm |
| Estimated Lift | 24 – 48 in / 610 – 1220 mm |
| Dimension A | 14 in / 356 mm |
| Dimension B | N/A |
| Dimension C | 2.2 in / 56 mm |
| Dimension D | 15 in / 381 mm |
| Dimension E | 10.5 in / 267 mm |
| Dimension F | 28.25 in / 718 mm |
Specifications are based on current Montabert TR14 hydraulic plate compactor literature. Contact BHE Attachments to confirm machine compatibility, mounting requirements, and hydraulic flow setup before ordering.
Why Choose the TR14?
The TR14 combines powerful compaction force, dependable hydraulic performance, and low maintenance operation to help contractors maximize productivity across utility, excavation, and construction projects.
Need Compatibility Assistance?
Our team can help verify excavator compatibility, hydraulic flow requirements, mounting configurations, and plate compactor sizing for your machine and application.
Ready to quote the TR14?
Brown's Heavy Equipment can help you review carrier compatibility, hydraulic requirements, mounting options, and current pricing for the Montabert TR14 hydraulic plate compactor.
