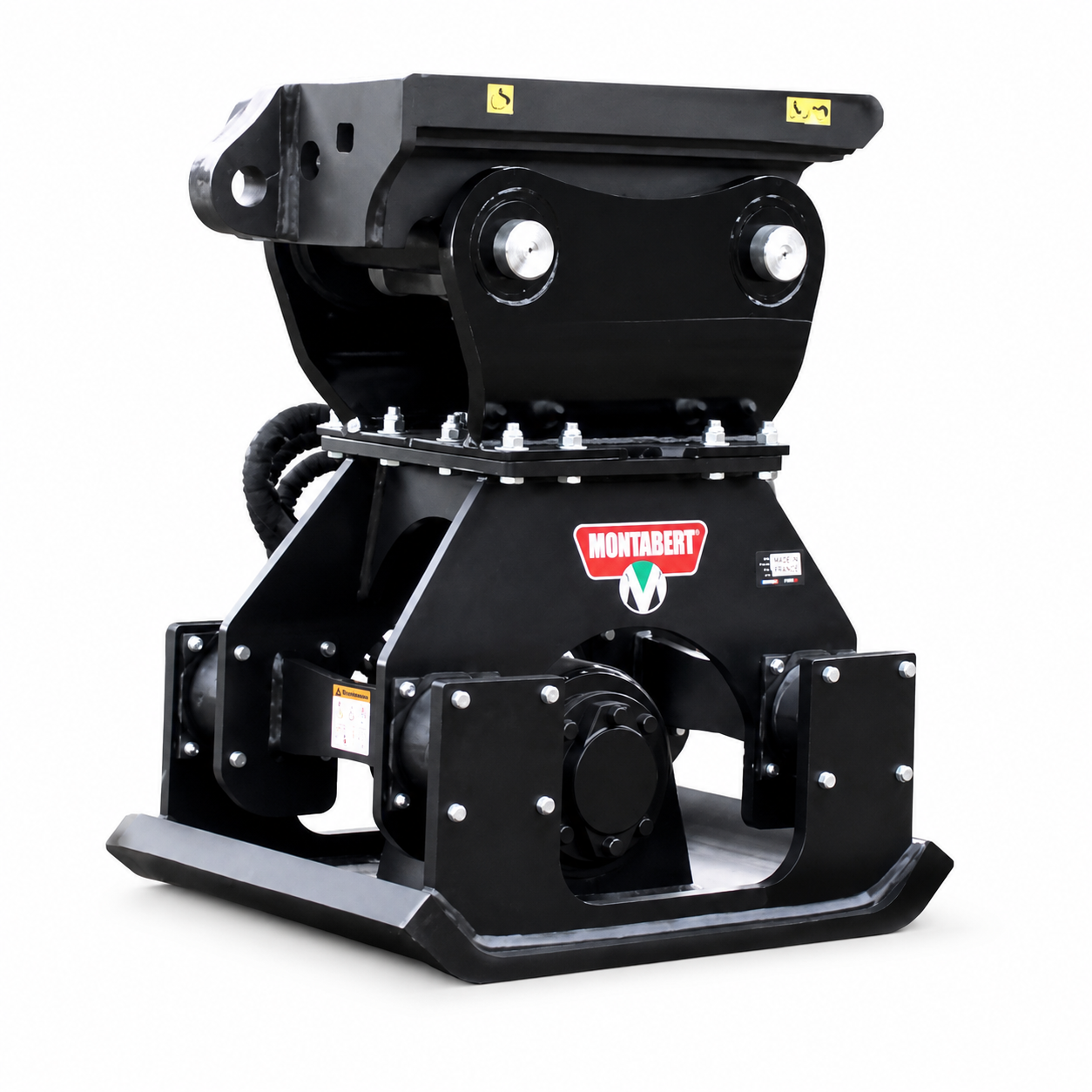

TR40 Plate Compactor
The Montabert TR40 hydraulic plate compactor is engineered for 25 to 50 ton carriers and delivers maximum compaction force, dependable hydraulic performance, and rugged durability for demanding heavy construction and infrastructure applications. Featuring oversized eccentric technology, heavy-duty vibration isolation, and reinforced construction, the TR40 is ideal for deep trench compaction, road construction, foundation preparation, and vibratory pile driving operations.
Overview
The Montabert TR40 plate compactor combines powerful vibration force, efficient hydraulic operation, and reinforced heavy-duty construction for large excavators and severe-duty compaction applications. Featuring oil bath bearings, integral baseplate construction, and heavy rubber isolators, the TR40 minimizes maintenance while delivering maximum productivity on demanding jobsites.
Key Features
- Oversized eccentric system produces maximum compaction force.
- Oil bath bearings eliminate routine greasing requirements.
- Heavy rubber isolators reduce vibration transfer to the carrier.
- Integral baseplate and housing minimize maintenance points.
- Quick installation kits simplify excavator hookup.
- Suitable for heavy-duty vibratory pile driving applications.
- Rugged construction designed for severe operating environments.
Built for Heavy Infrastructure Applications
The TR40 is engineered for contractors requiring high-performance compaction for major infrastructure projects, deep trenching, road construction, foundation work, and large-scale utility installation applications.
Common Applications
The Montabert TR40 plate compactor is commonly used across heavy construction, infrastructure, and large-scale excavation applications.
Deep Trench Compaction
Efficient backfill compaction for large utility and pipeline projects.
Road Construction
Supports roadway preparation and major infrastructure projects.
Foundation Preparation
Compacts soil for large structural foundations and pads.
Utility Installation
Reliable compaction around major underground utility systems.
Pile Driving
Suitable for sheet piles, signposts, and structural pile installations.
Heavy Construction
Designed for demanding compaction and excavation applications.
TR40 Specifications
Review key carrier, hydraulic, and operating specifications for the Montabert TR40 hydraulic plate compactor.
| Specification | TR40 |
|---|---|
| Recommended Carrier Weight | 25 – 50 Tons |
| Centrifugal Force | 21,000 – 40,000 lbs / 9,525 – 18,140 kg |
| Cycles Per Minute | 1,500 – 2,100 RPM |
| Motor A Oil Flow Range | 45 – 55 GPM / 171 – 208 LPM |
| Working Weight | 2,500 lbs / 1,135 kg |
| Baseplate Dimensions | 35 × 41 in / 889 × 1041 mm |
| Estimated Lift | 48 – 72 in / 1220 – 1830 mm |
| Dimension A | N/A |
| Dimension B | N/A |
| Dimension C | N/A |
| Dimension D | N/A |
| Dimension E | N/A |
| Dimension F | N/A |
Specifications are based on current Montabert TR40 hydraulic plate compactor literature and dimensions sheet. Contact BHE Attachments to confirm machine compatibility, mounting requirements, and hydraulic flow setup before ordering.
Why Choose the TR40?
The TR40 combines maximum compaction force, dependable hydraulic performance, and rugged construction to help contractors maximize productivity on demanding infrastructure, utility, and heavy construction projects.
Need Compatibility Assistance?
Our team can help verify excavator compatibility, hydraulic flow requirements, mounting configurations, and plate compactor sizing for your machine and application.
