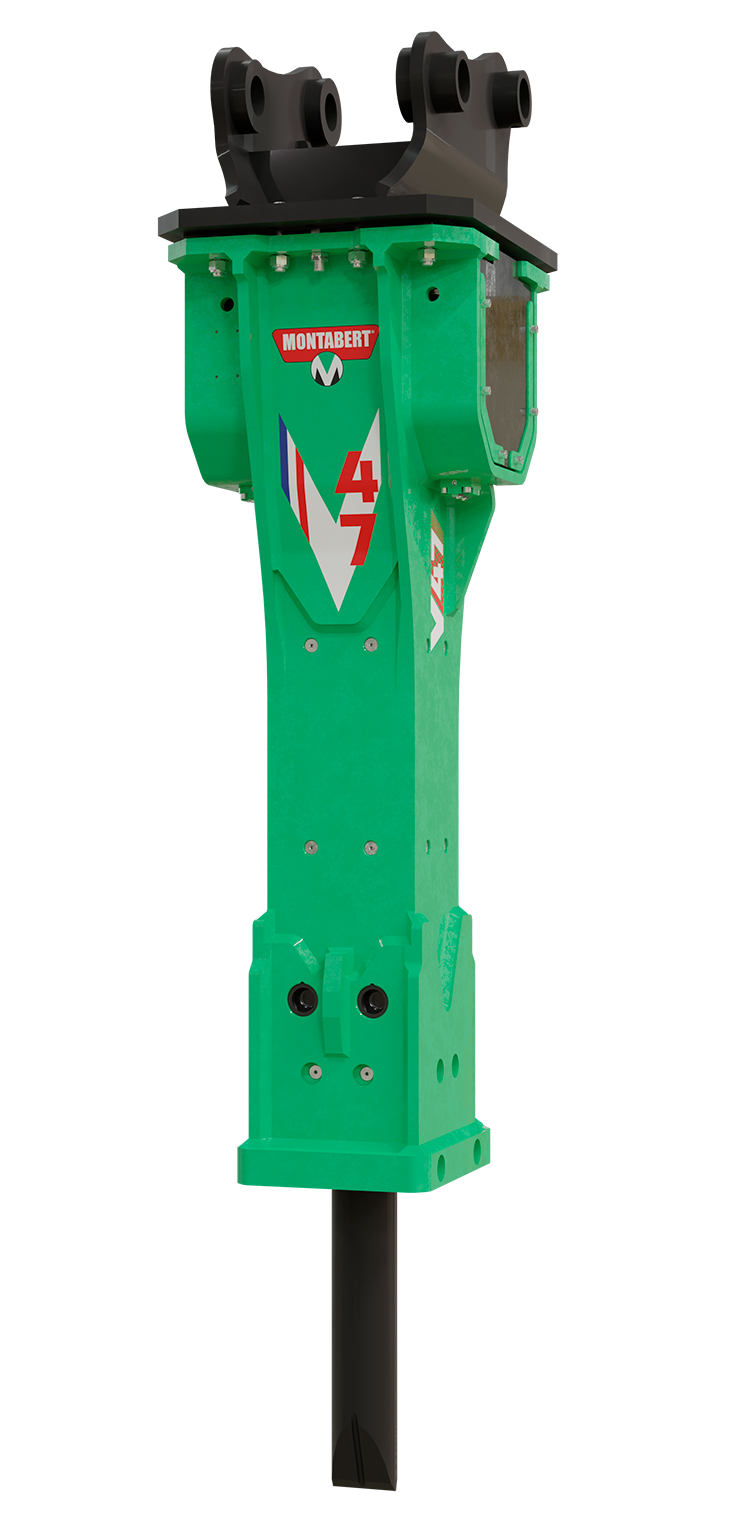

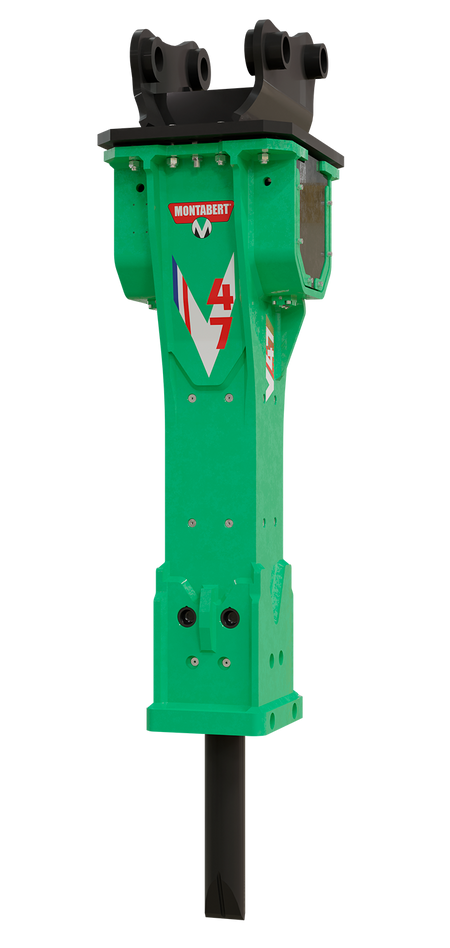

Montabert V47 Hydraulic Breaker
The Montabert V47 is part of the Heavy Range Premium Line of variable-energy hydraulic breakers. Designed for excavators in the 27 to 40 ton carrier class, the V47 delivers high-production breaking performance for demolition, quarrying, mining, excavation, trenching, recycling, and heavy construction applications where power, control, and uptime matter.
V47 Heavy Range Premium Breaker Overview
The V47 is built for contractors who need a premium hydraulic breaker for demanding carrier-mounted applications. Its variable-energy design automatically adjusts impact energy and striking rate based on material hardness, helping improve productivity while reducing unnecessary stress on the breaker and excavator.
Key Features
- Automatic variable speed technology adjusts impact energy and striking rate as material hardness changes.
- Designed to improve productivity while reducing harmful energy feedback to the carrier and breaker.
- Energy chamber helps absorb hydraulic shock and reduce pressure variations in the hydraulic circuit.
- Progressive start system helps prevent tool slipping by creating a controlled recess before full power is applied.
- Blank-fire protection helps reduce wear-part damage when the tool is not fully engaged with material.
- Automatic lubrication system keeps the breaker lubricated to help improve component life and reduce downtime.
- Automatic pressure regulator supports consistent breaker performance across changing flow and temperature conditions.
Best Fit for 27–40 Ton Excavators
The Montabert V47 is designed for excavators in the 27 to 40 ton range and is a strong fit for jobs that require higher impact energy, consistent hydraulic performance, and dependable production in tough rock, concrete, and excavation conditions.
Common V47 Applications
The V47 hydraulic breaker is made for high-impact work where carrier compatibility, breaking power, and long-term reliability are important.
Demolition
Break concrete, slabs, foundations, bridge material, and reinforced structures with controlled hydraulic impact power.
Quarrying
Support primary and secondary breaking, block splitting, oversize reduction, and crusher assistance.
Excavation
Use for trenching, rock removal, utility work, roadwork, site preparation, and general excavation support.
Mining & Tunneling
Handle demanding rock-breaking conditions in production, tunneling, and heavy-duty material reduction applications.
Recycling
Reduce oversized concrete, rock, and demolition debris for easier handling, processing, and transport.
Heavy Construction
Equip compatible excavators for tough jobs where productivity, durability, and breaker response matter.
Montabert V47 Model Specifications
Use these quick-reference specifications to help review carrier compatibility and hydraulic requirements for the Montabert V47 Heavy Range Premium breaker.
| Specification | V47 |
|---|---|
| Carrier Weight Range — Min-Max | 27–40 t |
| Breaker Operating Weight — Without Adapter Plate | 5,011 lb |
| Breaker Operating Weight — Metric | 2,273 kg |
| Oil Flow Range | 47.6–70 GPM |
| Oil Flow Range — Metric | 180–265 L/min |
| Striking Frequency | 345–1,160 BPM |
| Maximum Operating Pressure | 2,393 PSI |
| Maximum Operating Pressure — Metric | 165 bar |
| Tool Diameter | 5.90 in |
| Tool Diameter — Metric | 150 mm |
Specifications are provided as a quick reference. Final breaker selection should be confirmed based on excavator make, model, carrier weight, hydraulic flow, pressure requirements, mounting setup, and jobsite application.
Where the V47 Fits in the Premium Line
The V47 sits above the V32 in the Montabert Heavy Range Premium lineup, offering a larger breaker option for 27 to 40 ton excavators.
| Specification | V32 | V47 | V57 | V67 | V6000 | V7000 |
|---|---|---|---|---|---|---|
| Carrier Weight Range — Min-Max (t) | 18–30 | 27–40 | 35–60 | 50–85 | 60–90 | 70–120 |
| Operating Weight — Without Adapter Plate (lb) | 2,936 | 5,011 | 6,788.1 | 10,948 | 12,724 | 14,159 |
| Oil Flow Range — Min-Max (GPM) | 32–45 | 47.6–70 | 63.4–84.5 | 100.4–111 | 106–132 | 106–146 |
| Striking Frequency — Min-Max (BPM) | 285–1,050 | 345–1,160 | 330–1,045 | 380–950 | 290–550 | 290–590 |
| Maximum Operating Pressure (PSI) | 1,959 | 2,393 | 2,393 | 2,393 | 2,610 | 2,610 |
| Tool Diameter (in) | 4.80 | 5.90 | 6.69 | 7.95 | 8.42 | 8.42 |
Why Choose the Montabert V47?
The V47 gives contractors a heavy-duty variable-energy breaker designed for larger excavators in the 27 to 40 ton class. Its hydraulic design helps deliver the right amount of energy for the material, reduce unnecessary blank firing, and support better productivity across changing jobsite conditions.
Need Compatibility Help?
Send us your excavator make, model, carrier weight, hydraulic flow, operating pressure, and the type of material you are breaking. BHE Attachments can help review whether the V47 is the right match for your machine and application.
Ready to quote a Montabert V47 hydraulic breaker?
BHE Attachments can help you review V47 specifications, confirm excavator compatibility, and request current pricing for the right hydraulic breaker setup.
