Komatsu PC88MR-11 Compatible Attachments

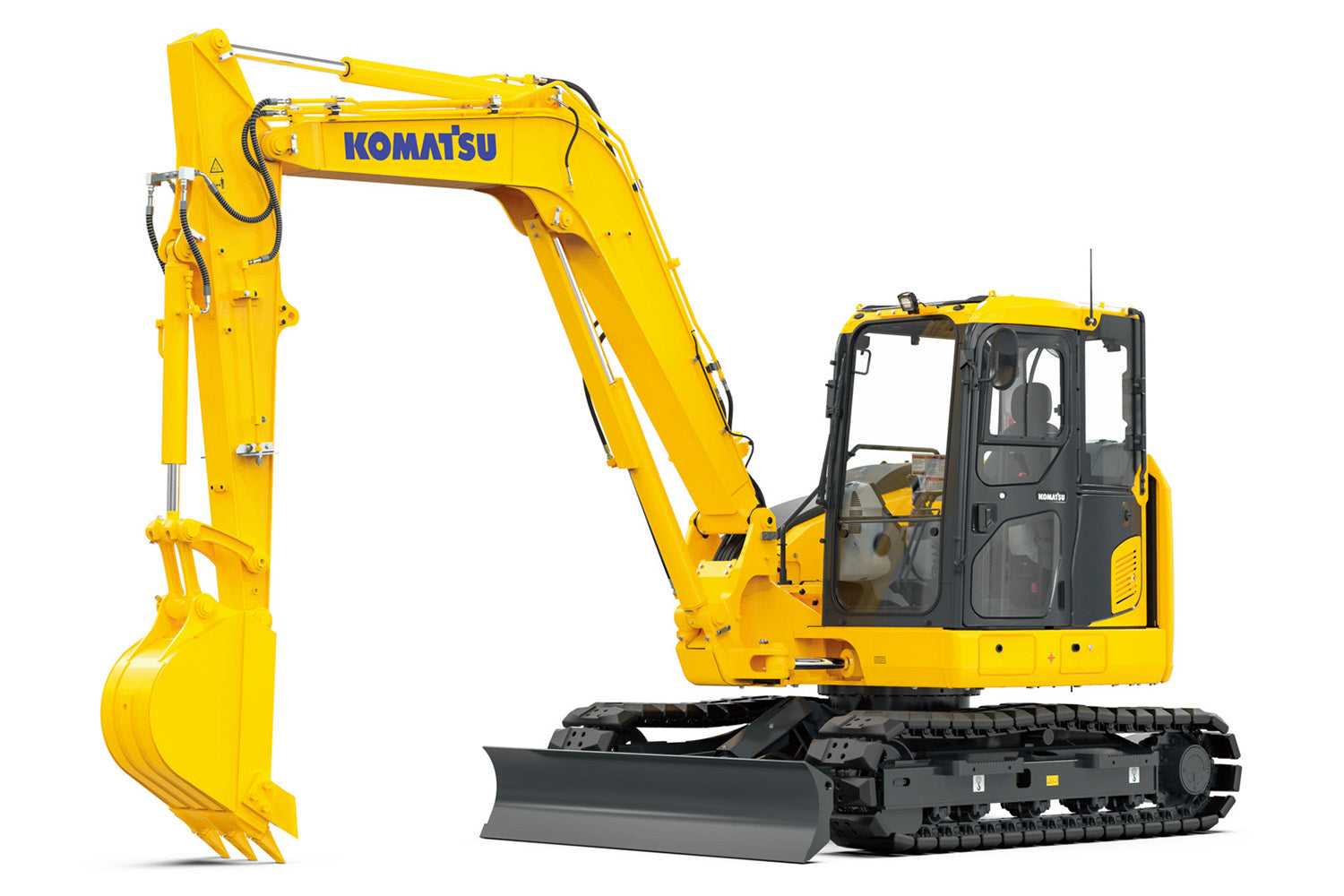

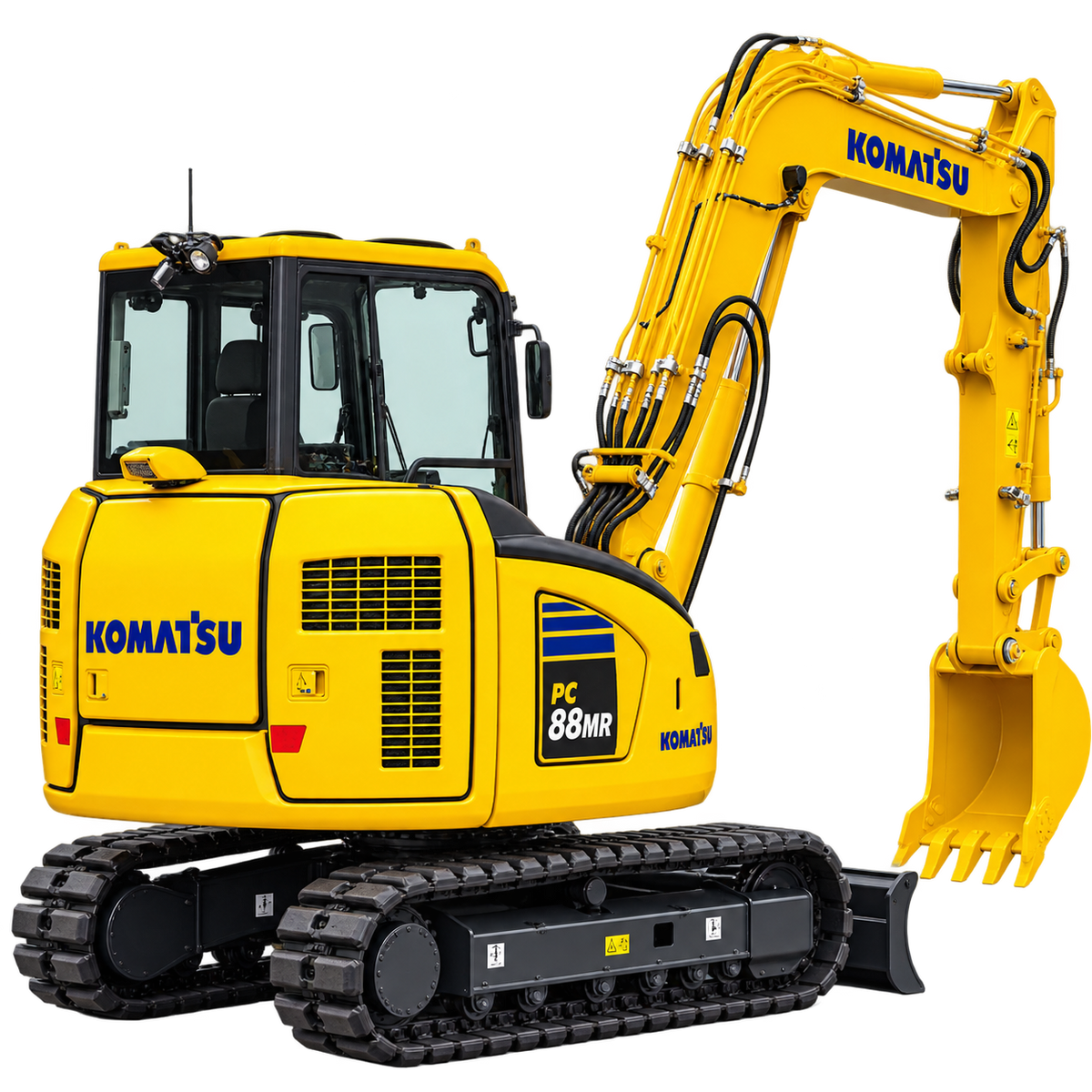

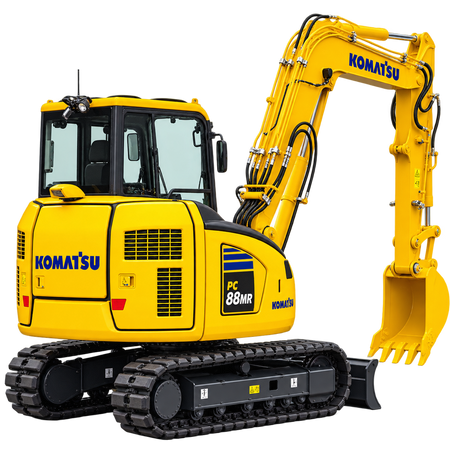

The Komatsu PC88MR-11 is a compact hydraulic excavator in the 8.5-ton class, built for demanding jobsites that require both power and maneuverability. Powered by the Komatsu SAA3D95E-1 Tier 4 Final engine delivering 68 HP (51 kW), this machine combines a minimum swing radius design with a swing boom for exceptional performance in confined spaces. It is commonly used for utility work, trenching, road repair, site preparation, landscaping, and light demolition. Attachment fitment for the Komatsu PC88MR-11 should be checked against the machine’s carrier weight, hydraulic flow, auxiliary circuit setup, pin dimensions, stick configuration, and the material being handled. BHE Attachments can help review these details before quoting or installing an attachment.
Komatsu PC88MR-11 Attachment Matches
The attachment categories below are organized for the Komatsu PC88MR-11 carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Komatsu PC88MR-11 when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support in confined residential and commercial spaces.
Montabert breaker models previously identified for review with this carrier class include the SC36, SC42, and SC50. Final selection should be based on the carrier’s hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Komatsu PC88MR-11 should match the work being performed. Digging buckets are commonly used for excavation and trenching in utility and landscaping projects, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading alongside the standard dozer blade.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The PC88MR-11 offers bucket capacities from 0.12 to 0.26 yd³ (0.09 to 0.20 m³) with multiple width and tooth configurations.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Komatsu PC88MR-11’s usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on compact job sites where space is at a premium.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine’s lifting and stability limits. The PC88MR-11 features a minimum swing radius of only 4'10" (1,485 mm) and a swing boom for working close to walls and obstacles.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Komatsu PC88MR-11 when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation in compact work zones.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The PC88MR-11 delivers up to 42.4 gpm (160 L/min) maximum hydraulic flow with a two-way auxiliary circuit for smooth powered attachment operation.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Komatsu PC88MR-11 when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The PC88MR-11 delivers up to 13,781 lbf (61.3 kN) ISO bucket digging force and 8,161 lbf (36.3 kN) arm crowd force for tough ground conditions.
Komatsu PC88MR-11 Jobsite Applications
These application notes help connect the Komatsu PC88MR-11 to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Komatsu PC88MR-11 is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or demolition prep in confined spaces.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, foundations, landscaping, and general excavation in tight areas. The standard 6'11" (2,100 mm) arm provides a max digging depth of 15'0" (4,565 mm).
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup in compact job sites. The standard dozer blade with 7'7" (2,330 mm) width simplifies ground leveling and backfilling.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Komatsu PC88MR-11 needs to handle debris, brush, pipe, demolition material, or irregular objects in restricted spaces.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed in limited work areas.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation in residential or utility settings.
Attachment Fitment Factors
The Komatsu PC88MR-11 should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (18,739–19,224 lbs / 8,500–8,720 kg) and excavator size class.
- Check pin diameter, pin spread, stick width, and coupler configuration.
- Match the attachment bracket to the Komatsu PC88MR-11 mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
- Verify minimum swing radius and compact dimensions for transport and access needs.
Hydraulic & Application Requirements
- Confirm hydraulic flow (up to 42.4 gpm / 160 L/min) and pressure (3,844 psi / 26.5 MPa implement relief) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing (two-way and one-way flow options available).
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Komatsu PC88MR-11 Attachment Overview
Use this table as a quick reference for matching common Komatsu PC88MR-11 attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Komatsu PC88MR-11 | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material in tight spaces. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Komatsu PC88MR-11 | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, landscaping, site development. |
| Komatsu PC88MR-11 | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| Komatsu PC88MR-11 | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Komatsu PC88MR-11 | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by Komatsu PC88MR-11 configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Komatsu PC88MR-11
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Komatsu PC88MR-11. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground in tight-access environments.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, stick length, and a short description of the work being performed.
