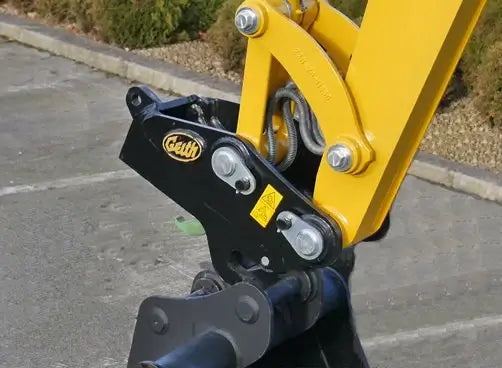

Geith Hydraulic Quick Coupler
The Geith Hydraulic Quick Coupler is engineered to help operators change excavator attachments quickly, safely, and efficiently without leaving the cab. Designed for excavators from 1 to 87 tonnes, the hydraulic locking system minimizes downtime while maintaining a secure attachment connection for demanding construction, demolition, utility, quarry, and earthmoving applications. Built from high-strength steel with a proven wedge-style locking mechanism, Geith Hydraulic Quick Couplers improve machine versatility while reducing attachment changeover time.
Increase Productivity with Fast Attachment Changes
Geith Hydraulic Quick Couplers help maximize excavator productivity by reducing the time required to switch between buckets and other work tools. Instead of manually removing attachment pins, operators can engage or release compatible attachments from inside the cab using the hydraulic locking system. This reduces downtime, improves jobsite safety, and allows one excavator to complete more tasks throughout the working day.
Key Features
- Hydraulic attachment changes from inside the cab
- Suitable for excavators from 1 to 87 tonnes
- Heavy-duty wedge-style locking system
- Designed for fast and secure attachment engagement
- High-strength steel construction for long service life
- Improves machine versatility and overall productivity
- Compatible with a wide range of buckets and excavator attachments
- Available in multiple pin diameter configurations to suit different excavator models
Designed for Demanding Jobsite Performance
Whether moving between trenching, grading, demolition, material handling or general excavation, the Geith Hydraulic Quick Coupler minimizes attachment change time while maintaining a secure connection. Contractors benefit from increased machine utilization, improved operator efficiency, and reduced manual handling during attachment changes.
Common Applications
Geith Hydraulic Quick Couplers help excavator operators change attachments quickly, allowing one machine to perform multiple jobs with minimal interruption throughout the workday.
General Excavation
Quickly alternate between excavation buckets and grading buckets to improve digging efficiency.
Demolition
Change between breakers, pulverizers, buckets and other demolition tools with minimal downtime.
Utility Installation
Improve productivity during trenching, pipe installation and utility maintenance projects.
Road Construction
Switch between grading, digging and material handling attachments throughout roadway projects.
Land Clearing
Alternate between buckets, grapples and other compatible attachments for efficient site preparation.
Quarry & Heavy Construction
Built to withstand demanding applications where reliable attachment retention and quick change capability are essential.
Why Choose a Geith Hydraulic Quick Coupler?
A hydraulic quick coupler transforms an excavator into a more versatile machine by allowing operators to change work tools quickly while remaining inside the cab. This helps reduce idle time, improves safety by limiting manual pin handling, and increases productivity across a variety of excavation and construction applications.
Increase Machine Utilization
Spend less time changing attachments and more time completing productive work. Fast attachment changes allow one excavator to perform multiple tasks throughout the day without unnecessary delays.
Improve Jobsite Safety
Hydraulic operation reduces manual handling during attachment changes, helping operators remain inside the cab while switching compatible work tools quickly and securely.
Engineered for Safe, Fast Attachment Changes
Geith Hydraulic Quick Couplers are designed to simplify excavator attachment changes while maintaining the strength and reliability required for demanding construction environments. Their hydraulic locking mechanism helps operators change compatible work tools quickly, reducing downtime and improving overall machine efficiency.
Hydraulic Locking System
The hydraulic locking mechanism allows operators to connect and disconnect compatible excavator attachments directly from the cab. This eliminates the need for manual pin removal during routine attachment changes, helping increase productivity throughout the workday.
Heavy-Duty Structural Design
Manufactured from high-strength steel, the Geith Hydraulic Quick Coupler is engineered to withstand demanding excavation, demolition and material handling applications while delivering dependable long-term performance.
Wide Machine Compatibility
Available for excavators ranging from 1 to 87 tonnes, the Geith Hydraulic Quick Coupler accommodates a broad selection of excavator models, allowing contractors to standardize attachment changes across their equipment fleet.
Improved Productivity
Faster attachment changes help reduce idle machine time while allowing operators to move efficiently between excavation, grading, demolition and material handling tasks without unnecessary delays.
Advantages of the Geith Hydraulic Quick Coupler
Whether you're working on construction sites, utility projects, road building or heavy excavation, a Geith Hydraulic Quick Coupler provides dependable attachment retention while allowing excavators to switch between compatible tools quickly and efficiently.
Reduced Downtime
Minimize time spent changing attachments and maximize productive machine hours throughout the day.
Greater Machine Versatility
Easily transition between buckets, breakers, grapples and other compatible excavator attachments as project requirements change.
Reliable Attachment Security
A robust hydraulic locking mechanism helps keep attachments securely connected during demanding excavation and material handling operations.
Built for Professional Contractors
Contractors around the world rely on Geith excavator attachments because of their proven durability, reliable engineering and jobsite performance. The Hydraulic Quick Coupler is designed to help fleets improve equipment utilization while reducing labor associated with changing excavator attachments.
Ideal Industries
- General Construction
- Heavy Civil Construction
- Utility Contractors
- Road & Highway Projects
- Site Development
- Demolition Contractors
- Quarry Operations
- Municipal Equipment Fleets
Compatible Attachment Types
- Excavator Buckets
- Hydraulic Breakers
- Grapples
- Compactors
- Rippers
- Pulverizers
- Shears
- Other compatible excavator work tools
Geith Hydraulic Quick Coupler Specifications
Geith Hydraulic Quick Couplers are available for excavators from 1 to 87 tonnes. The hydraulic range includes thirteen models with variable pin pickup capability, allowing many existing buckets and attachments to be used when changing excavator models. Coupler weights are approximate and may vary depending on configuration.
| Excavator Weight | Pin Diameter | Coupler Model | Approx. Coupler Weight |
|---|---|---|---|
| 1–2 Tonnes | 25 / 30 mm | QC25-30H | 18 kg (40 lbs) |
| 2–4 Tonnes | 35 / 40 mm | QC35-40H | 35 kg (77 lbs) |
| 4–8 Tonnes | 45 / 50 mm | QC45-50H | 73 kg (161 lbs) |
| 7–12 Tonnes | 50 / 55 / 60 mm | QC50-55-60H | 92 kg (203 lbs) |
| 12–16 Tonnes | 60 / 65 mm | QC60-65H | 191 kg (421 lbs) |
| 16–25 Tonnes | 70 / 80 mm | QC70-80H | 327 kg (721 lbs) |
| 24–35 Tonnes | 90 mm | QC90H | 422 kg (930 lbs) |
| 30–40 Tonnes | 100 mm | QC100H | 721 kg (1,589 lbs) |
| 33–46 Tonnes | 110 mm | QC110H | 721 kg (1,589 lbs) |
| 45–60 Tonnes | 115 mm | QC115H | 1,090 kg (2,402 lbs) |
| 50–65 Tonnes | 120 mm | QC120H | 1,090 kg (2,402 lbs) |
| 65–70 Tonnes | 130 mm | QC130H | 1,460 kg (3,217 lbs) |
| 70–87 Tonnes | 140 mm | QC140H | 1,623 kg (3,577 lbs) |
Technical Highlights
- Hydraulic quick coupler for excavators from 1–87 tonnes
- ISO 13031 and EN474-1 compliant triple-locking design
- Variable pin centre pickup for increased attachment compatibility
- Front and rear safety locks with spring-assisted retention
- Cylinder check valve for additional attachment security
- Integrated lifting eye built into the coupler frame
- Buckets can be operated in reverse (shovel mode)
- Heavy-duty construction for demanding applications
Designed for Maximum Attachment Flexibility
The Geith Hydraulic Quick Coupler features a variable pin centre pickup that allows operators to use a wide range of existing excavator buckets and compatible work tools. This flexibility helps reduce attachment replacement costs while making it easier to transition between different excavator models within a fleet.
Its compact profile maintains excellent breakout force while minimizing the distance between the attachment and excavator arm for improved digging performance.
Geith Hydraulic Quick Coupler Model Comparison
Every Geith Hydraulic Quick Coupler shares the same proven hydraulic locking technology, triple-locking safety system and variable pin pickup design. The primary differences between models are the excavator weight class, compatible pin diameter and coupler weight, allowing contractors to select the correct coupler for their machine size and application.
Compact Excavators
- Models: QC25-30H, QC35-40H, QC45-50H
- Machine Size: 1–8 Tonnes
- Pin Diameter: 25–50 mm
- Best For: Landscaping, utilities, residential construction and compact excavation
Mid-Size Excavators
- Models: QC50-55-60H, QC60-65H, QC70-80H
- Machine Size: 7–25 Tonnes
- Pin Diameter: 50–80 mm
- Best For: Site development, utility work, road construction and general excavation
Large Excavators
- Models: QC90H, QC100H, QC110H
- Machine Size: 24–46 Tonnes
- Pin Diameter: 90–110 mm
- Best For: Heavy construction, demolition and quarry operations
Mining & Heavy Production
- Models: QC115H, QC120H, QC130H, QC140H
- Machine Size: 45–87 Tonnes
- Pin Diameter: 115–140 mm
- Best For: Mining, quarry production, mass excavation and heavy civil projects
Need Help Choosing the Right Quick Coupler?
Selecting the correct hydraulic quick coupler requires matching your excavator's operating weight, pin diameter, attachment geometry and bucket specifications. BHE Attachments can help verify compatibility before ordering to ensure the coupler fits your machine correctly.
Our product specialists work with contractors, equipment dealers and fleet managers to recommend the correct Geith Hydraulic Quick Coupler based on the excavator and attachments being used.
Information That Helps Us Verify Compatibility
- Excavator make and model
- Operating weight
- Pin diameter
- Pin center dimensions
- Bucket width and attachment type
- Existing quick coupler (if applicable)
- Primary application
- Photos of the machine or attachment (recommended)
Why Buy Your Geith Hydraulic Quick Coupler from BHE Attachments?
BHE Attachments supplies premium excavator attachments backed by experienced product specialists who understand machine compatibility. Whether you're replacing an existing quick coupler or equipping a new excavator, our team can help you select the correct Geith Hydraulic Quick Coupler for your application.
Compatibility Expertise
We verify excavator specifications and attachment dimensions to help ensure proper fitment before your order ships.
Premium Geith Products
Geith hydraulic quick couplers are recognized worldwide for safety, adaptability and durability, featuring a triple-locking design, variable pin pickup, integrated lifting eye, and reversible bucket capability. :contentReference[oaicite:0]{index=0}
Responsive Customer Support
From selecting the right model through delivery and after-sales assistance, our team is committed to helping you maximize excavator productivity.
Upgrade Your Excavator with a Geith Hydraulic Quick Coupler
Improve productivity, reduce downtime and change attachments safely with a Geith Hydraulic Quick Coupler. Contact BHE Attachments today for pricing, availability and expert compatibility assistance for your excavator.
