Excavator attachments are designed to increase the versatility of your equipment, allowing one machine to handle excavation, demolition, grading, trenching, material handling, and many other tasks. However, choosing the wrong attachment can lead to poor performance, increased wear, costly repairs, and even unsafe operating conditions.
Matching an attachment to your excavator involves much more than selecting the correct size. Machine operating weight, hydraulic flow, operating pressure, pin dimensions, coupler compatibility, and the intended application all play a critical role in ensuring optimal performance.
This guide explains the key factors to consider when selecting an excavator attachment so you can maximize productivity and protect your investment.
Why Proper Attachment Matching Matters
A properly matched attachment helps your excavator operate efficiently while reducing unnecessary stress on both the machine and the attachment.
Choosing the correct attachment offers several advantages:
- Improved digging and lifting performance
- Longer attachment service life
- Reduced hydraulic system wear
- Better fuel efficiency
- Increased operator safety
- Lower maintenance and repair costs
Using an oversized or incompatible attachment can negatively affect machine balance, hydraulic performance, and overall jobsite productivity.
Machine Operating Weight
Start with Your Excavator's Weight Class
The first step in choosing any attachment is identifying your excavator's operating weight.
Manufacturers design buckets, breakers, grapples, and other attachments to work within specific machine weight ranges. An attachment that is too large or too small can reduce performance and increase component wear.
For example:
- Mini excavators require lightweight attachments designed for compact machines.
- Mid-size excavators commonly use general construction attachments.
- Large excavators require heavy-duty attachments capable of handling greater breakout forces and lifting capacities.
Always verify that the attachment is rated for your excavator's operating weight before purchasing.
Pin Size and Mounting Dimensions
Ensure Proper Fitment
Even if an attachment is designed for your excavator's weight class, it must also match the machine's mounting dimensions.
Key measurements include:
- Pin diameter
- Pin center distance
- Ear width
- Pin length
Incorrect mounting dimensions can prevent proper installation or create excessive movement that accelerates wear on pins and bushings.
When ordering an attachment, always provide accurate mounting specifications or your excavator's make and model.
Hydraulic Flow Requirements
Match the Attachment's Hydraulic Needs
Hydraulic-powered attachments depend on sufficient oil flow to operate correctly.
Examples include:
If the excavator supplies too little hydraulic flow, the attachment may operate slowly or lose efficiency.
Excessive flow can cause overheating, premature wear, and damage to hydraulic components.
Always compare the attachment's required hydraulic flow with your excavator's specifications.
Operating Pressure
Hydraulic flow and operating pressure work together to deliver attachment performance.
While flow controls operating speed, pressure determines the available working force.
For example:
- Hydraulic breakers rely on proper pressure to deliver consistent impact energy.
- Grapples require adequate pressure to maintain a secure grip.
- Pulverizers depend on sufficient hydraulic pressure to crush concrete effectively.
Matching both flow and pressure specifications helps ensure reliable performance and extends attachment life.

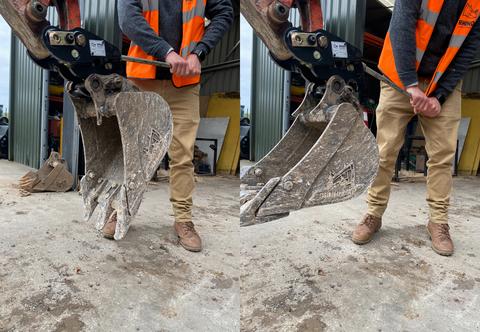

Quick Coupler Compatibility
Consider Your Coupler System
Many modern excavators are equipped with quick couplers that allow operators to switch between attachments quickly.
Before purchasing a new attachment, confirm that it is compatible with your existing coupler.
Common options include:
- Hydraulic quick couplers
- Mechanical quick couplers
- Pin-on mounting systems
Using compatible attachments minimizes downtime and helps maximize machine utilization throughout the workday.
Match the Attachment to the Application
Different jobs require different attachment designs.
Selecting the right tool for the application improves efficiency and reduces unnecessary wear.
Excavator Buckets
Ideal for:
- General excavation
- Grading
- Utility installation
- Material handling

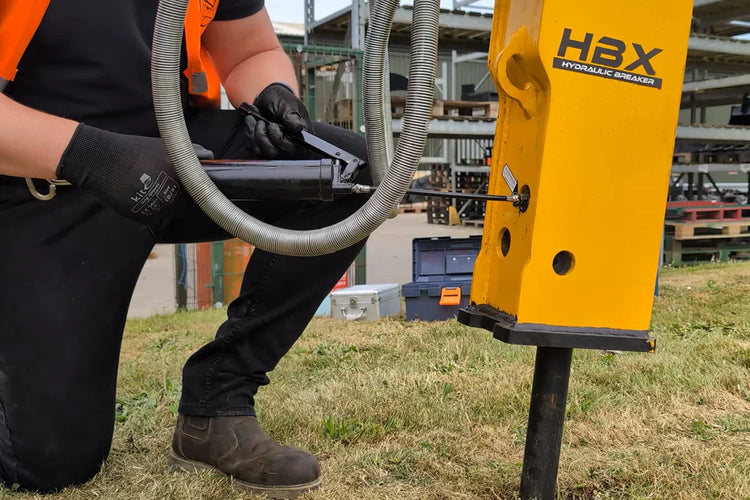

Hydraulic Breakers
Best suited for:
- Concrete demolition
- Rock breaking
- Asphalt removal
- Foundation removal

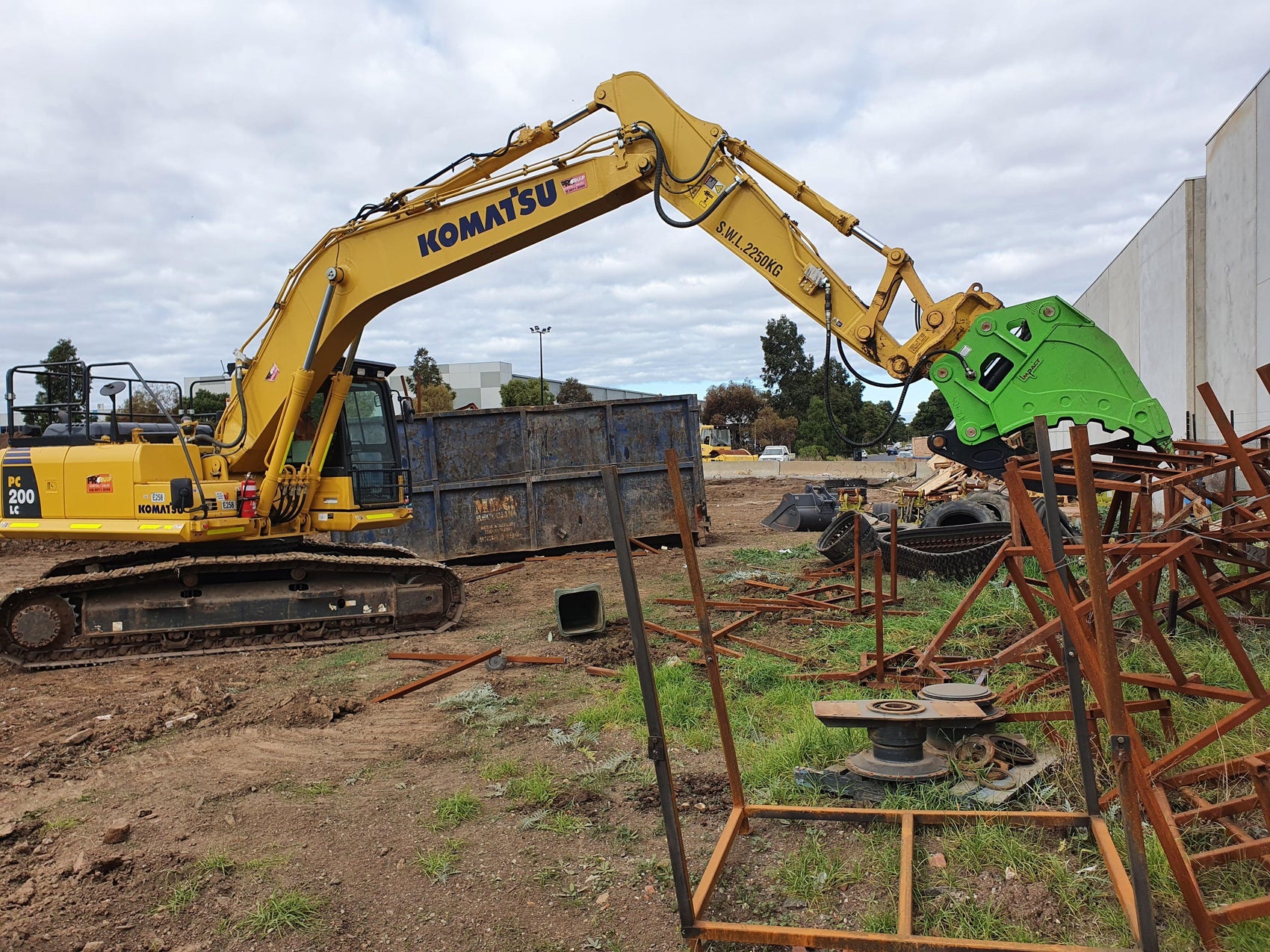

Grapples
Designed for:
- Scrap handling
- Land clearing
- Storm cleanup
- Recycling operations
Plate Compactors
Commonly used for:
- Trench compaction
- Utility backfill
- Road construction
- Landscaping
Matching the attachment to the work environment improves productivity and helps operators complete projects more efficiently.
Don't Forget Attachment Weight
Every excavator has lifting and stability limits.
Installing an attachment that exceeds the machine's recommended weight can reduce lifting capacity and affect machine balance.
Always consider the combined weight of:
- The attachment
- The material being handled
- The excavator's lifting capacity
Proper weight matching improves safety and protects the undercarriage, boom, and hydraulic components.
Consult Manufacturer Specifications
While general guidelines are helpful, every excavator model has unique specifications.
Before purchasing an attachment, review:
- Operating weight
- Hydraulic flow
- Operating pressure
- Lift capacity
- Coupler compatibility
- Recommended attachment sizes
Using manufacturer specifications helps eliminate compatibility issues and ensures optimal attachment performance.
Common Mistakes to Avoid
Many attachment compatibility issues can be prevented by avoiding these common mistakes:
- Choosing an attachment based only on excavator size
- Ignoring hydraulic flow requirements
- Overlooking pin dimensions
- Using incompatible couplers
- Selecting the wrong attachment for the application
- Exceeding the excavator's lifting capacity
Taking the time to verify compatibility before purchasing can prevent unnecessary downtime and costly modifications.
Why Choose BHE Attachments?
BHE Attachments offers a wide range of excavator attachments engineered for compatibility with leading equipment brands. Whether you're looking for buckets, hydraulic breakers, grapples, plate compactors, or quick couplers, our team can help you select the right attachment based on your machine specifications and project requirements.
Conclusion
Selecting the right excavator attachment involves more than simply choosing a tool that fits your machine. By considering operating weight, mounting dimensions, hydraulic flow, pressure, coupler compatibility, attachment weight, and jobsite application, you can improve performance, extend equipment life, and maximize your return on investment.
Whether you're upgrading your fleet or purchasing your first excavator attachment, making an informed decision helps ensure reliable performance on every project.
Need help finding the right attachment for your excavator? Contact BHE Attachments today. Our experienced team can help you identify compatible buckets, hydraulic breakers, quick couplers, grapples, and other attachments that match your machine and your jobsite needs.
