Yanmar ViO17
Couldn't load pickup availability
Ask an expert
Yanmar ViO17 Compatible Attachments

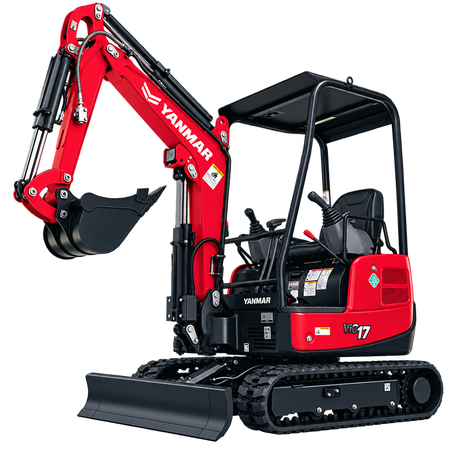

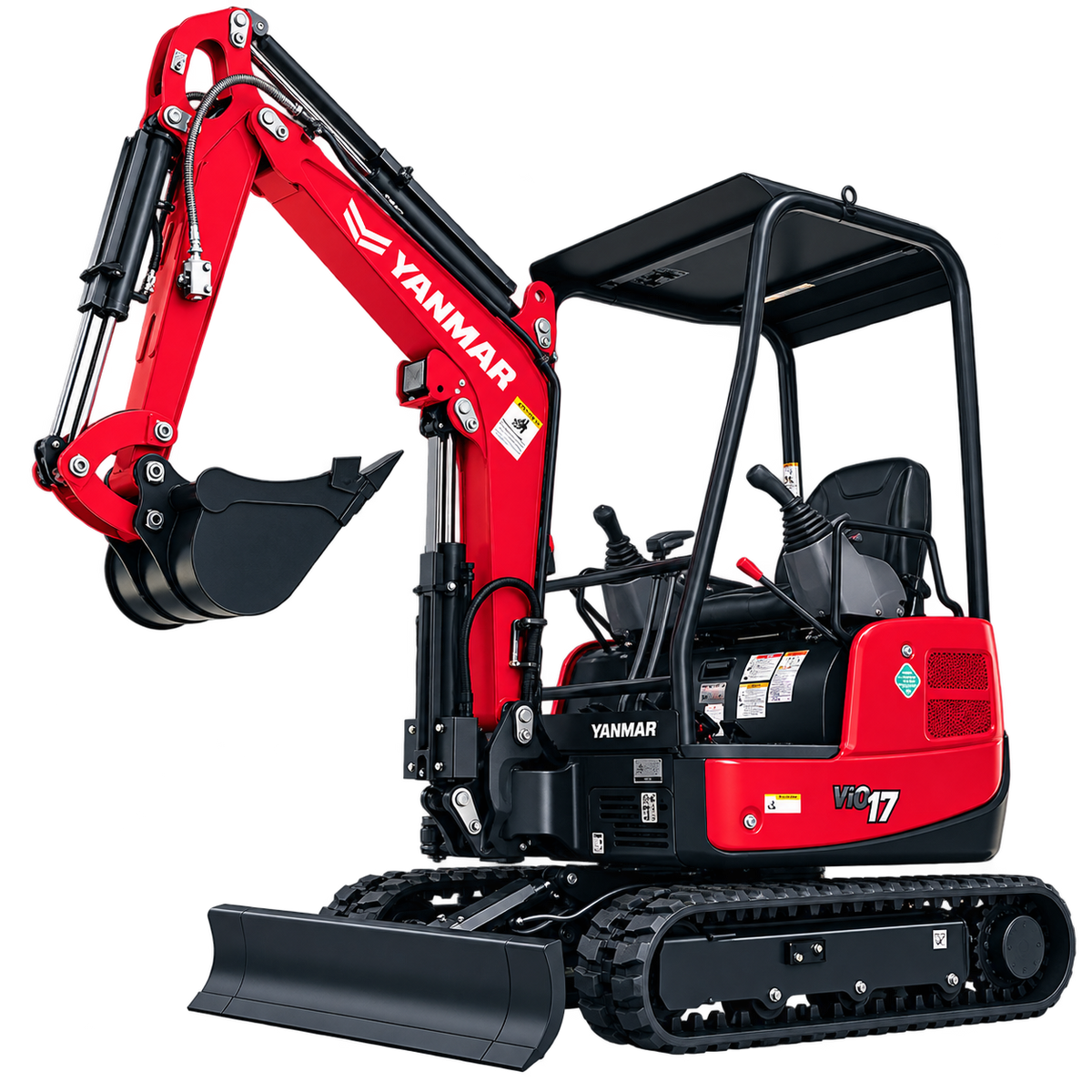

The Yanmar ViO17 combines a compact mini excavator footprint with True Zero Tail Swing, a sliding variable undercarriage, and a three-pump hydraulic system for productive work in confined areas. Its 3TNV70-XBV diesel engine is rated at 10.1 kW, while the variable undercarriage adjusts from 950 mm to 1280 mm to support access and stability across excavation, trenching, utility, landscaping, and site-preparation work.
Before selecting an attachment for the ViO17, verify operating weight, hydraulic flow and pressure, auxiliary circuit setup, pin geometry, coupler or quick-hitch style, bracket fit, and the material you intend to break, dig, compact, or move. BHE Attachments can walk through these checks before you request a quote or install anything on the machine.
Yanmar ViO17 Attachment Matches
Browse the attachment categories below for the ViO17. Final fit must be confirmed against your machine's exact hydraulic configuration, mounting dimensions, coupler style, and jobsite demands.
Hydraulic Breakers for Concrete, Rock & Asphalt
Breakers and hammers are a natural fit for the ViO17 when you need to fracture concrete, break rock, remove asphalt, or clear obstructions in trenches and demolition zones.
The Montabert breakers recommended for fitment review for the ViO17 are the SC8 and SC12. Final selection should be confirmed against the machine's hydraulic flow and pressure, breaker weight, mounting bracket, and intended application.
Digging, Trenching, Grading & Cleanup Buckets
Match the bucket to the task. General-purpose digging buckets handle bulk excavation and trenching, while grading and cleanup buckets are ideal for ditching, slope shaping, backfill finishing, and surface cleanup.
Fitment checks should cover pin diameter and spread, stick width, coupler or quick-hitch type, bucket width and capacity, tooth profile, edge configuration, and ground conditions.
Couplers, Thumbs & Grapples
Couplers, thumbs, and compact grapples can extend the ViO17's versatility for attachment changes, brush and debris cleanup, small pipe placement, and controlled material handling.
Review stick geometry, thumb reach, coupler type, hydraulic line routing, bracket design, and the machine's lift and stability ratings before selecting these tools.
Plate Compactors for Trench & Backfill Work
Compact plate compactors are worth reviewing for the ViO17 when the job calls for trench backfill, utility bedding, landscaping, or light site-preparation work.
Key fitment items include attachment weight, hydraulic flow and pressure range, mounting bracket, hose routing, and the compaction footprint needed for the work area.
Rippers & Specialty Excavator Tools
When the ViO17 faces compacted soil, frost, hardpan, or rocky subgrade, a ripper or specialty ground-engagement tool can loosen material before the bucket takes over.
Selection depends on material hardness, required breakout force, carrier class, mounting interface, and whether the tool is used for pre-excavation ripping or demolition cleanup.
Yanmar ViO17 Jobsite Applications
Match the attachment to the task. The notes below link common ViO17 work scenarios to the tools best suited for each.
Concrete & Rock Breaking
Deploy a correctly sized hydraulic breaker or hammer when the ViO17 is tasked with concrete demolition, rock fracturing, asphalt removal, trench obstruction clearing, or teardown prep.
Excavation & Trenching
Fit digging, trenching, or rock buckets for utility trenching, drainage lines, foundation footings, road subgrade work, and general earthmoving.
Grading & Cleanup
Grading, cleanup, and ditching buckets give the ViO17 the edge for finish contouring, slope dressing, ditch maintenance, loose material cleanup, and surface finishing.
Material Handling
Thumbs, grapples, and coupler-based tools let the ViO17 grab debris, brush, pipe sections, demolition fragments, and odd-shaped loads that a bucket alone cannot secure.
Compaction
A plate compactor adds value when the ViO17 is backfilling trenches, repairing utility cuts, restoring road bases, or preparing pads that require controlled density.
Hard Ground Preparation
A ripper or specialty ground tool breaks up compacted soil, frost layers, hardpan, or rocky subgrade so the bucket can follow through efficiently.
Attachment Fitment Factors
Pairing the right tool with the ViO17 means checking both machine-side specs and job-side demands. The points below help avoid mismatches that waste time and money.
Machine & Mounting Requirements
- Confirm the ViO17's operating weight and size class.
- Measure pin diameter, pin spread, stick width, and coupler or quick-hitch type.
- Align the attachment bracket with the ViO17's mounting interface.
- Check attachment weight against the machine's lift capacity and stability envelope.
- For buckets, verify width, capacity, tooth style, edge type, and duty rating.
Hydraulic & Application Requirements
- Confirm hydraulic flow and pressure for powered attachments.
- Verify auxiliary circuit layout, control mapping, and hose routing.
- Choose breaker tool profiles-moil, chisel, blunt, or specialty-based on material.
- Match the attachment to the target material: concrete, rock, asphalt, soil, brush, or debris.
- Factor in duty cycle, production targets, operator skill, and site conditions before finalizing.
Yanmar ViO17 Attachment Overview
Use this table as a quick reference to connect each attachment category to its primary purpose on the ViO17.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Yanmar ViO17 | Machine Overview | Compact excavation and attachment work in restricted-access jobsites. | 1,740 kg rubber-track operating weight; 10.1 kW engine; 20.6 MPa main relief pressure. | Trenching, utility work, landscaping, light demolition, grading, and site preparation. |
| Yanmar ViO17 | Hydraulic Breakers & Hammers | Fracturing concrete, rock, asphalt, and other hard materials. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Yanmar ViO17 | Excavator Buckets | Earthmoving, trenching, grading, ditching, cleanup, and load handling. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, site development. |
| Yanmar ViO17 | Couplers, Thumbs & Grapples | Swapping attachments and handling loose, bulky, or irregular loads. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush removal, pipe placement, demolition cleanup. |
| Yanmar ViO17 | Plate Compactors | Densifying trench backfill, soil, and utility repair zones. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Yanmar ViO17 | Rippers & Specialty Tools | Loosening compacted or hard ground before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility varies by Yanmar ViO17 configuration, coupler, pin dimensions, hydraulic setup, and job application. Always confirm fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Yanmar ViO17
BHE Attachments can compare breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the ViO17. The ideal attachment hinges on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground.
To narrow the field, share the serial number if you have it, current coupler or quick-hitch setup, hydraulic flow and pressure readings, pin dimensions, and a brief description of the work.
Need Help Confirming Compatibility?
BHE Attachments can review your ViO17's specs, hydraulic requirements, mounting geometry, pin dimensions, coupler configuration, and application needs to point you toward the right attachment category and model.
Ready to quote attachments for your Yanmar ViO17?
Send your machine setup and job description to BHE Attachments so we can match the right attachment to the ViO17's carrier class, hydraulic system, mounting requirements, and work conditions.
