XCMG XE35U
Couldn't load pickup availability
Ask an expert
XCMG XE35U Compatible Attachments

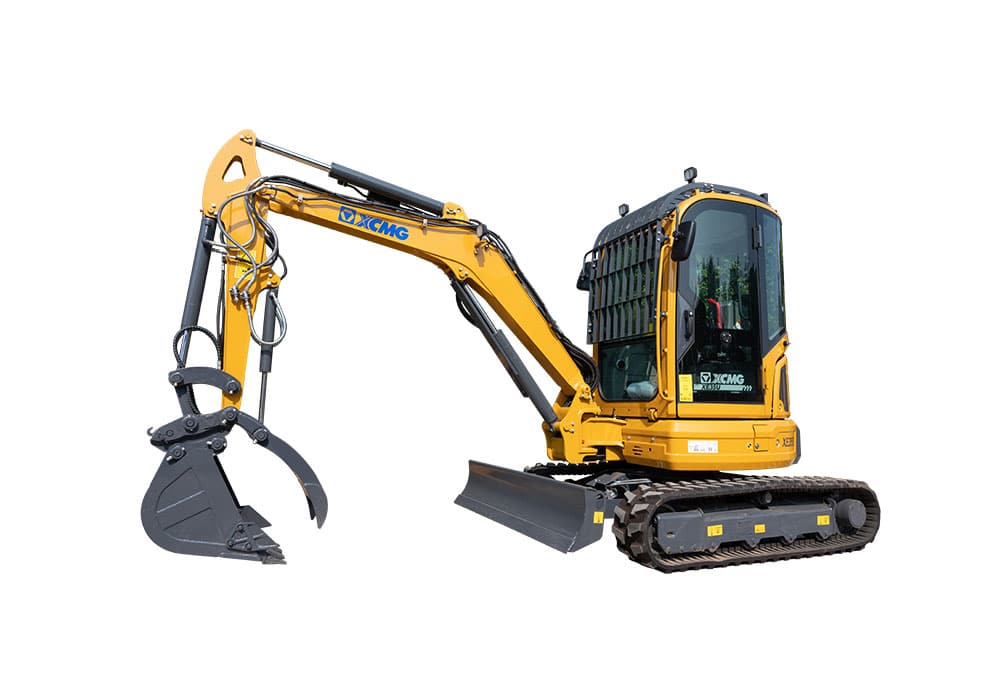

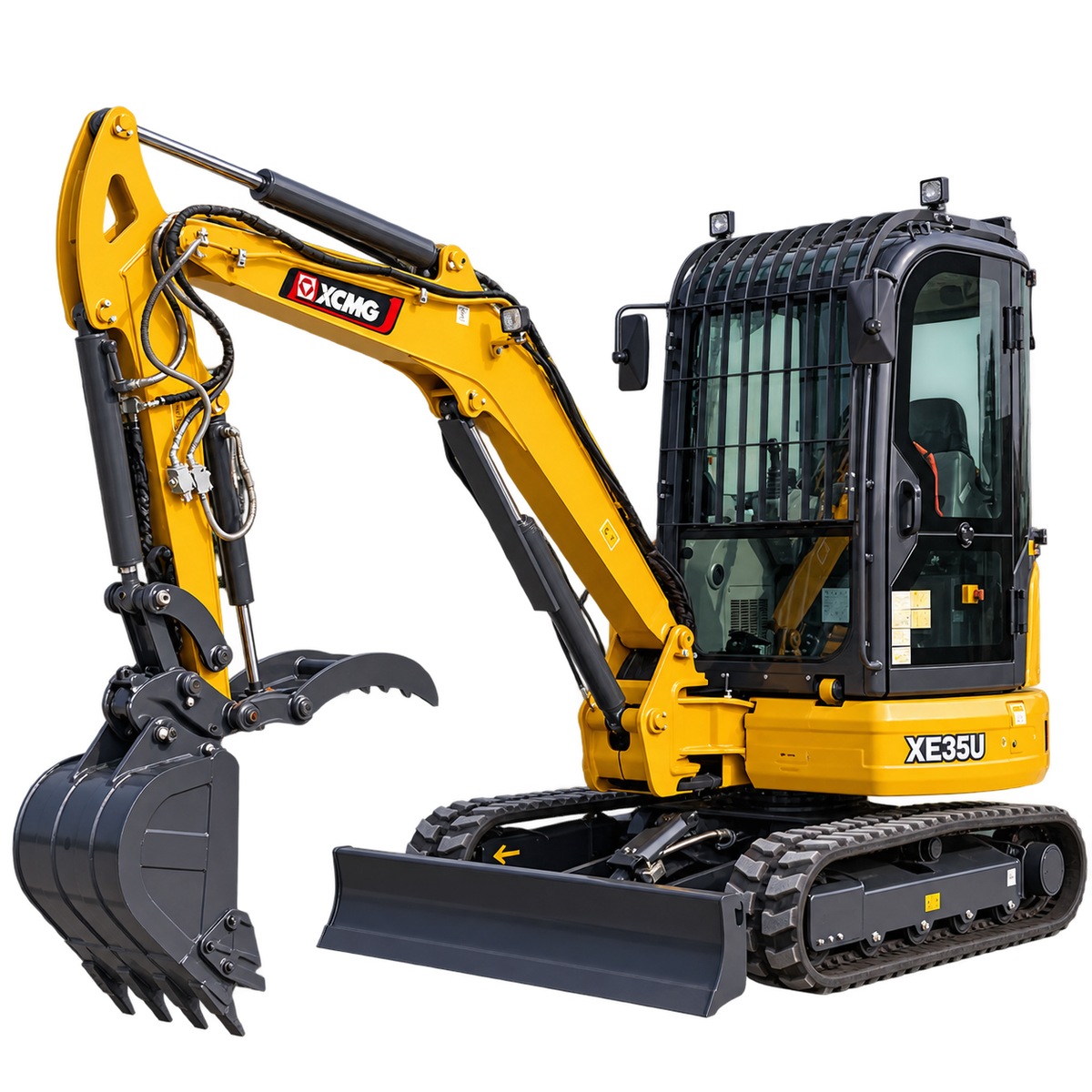

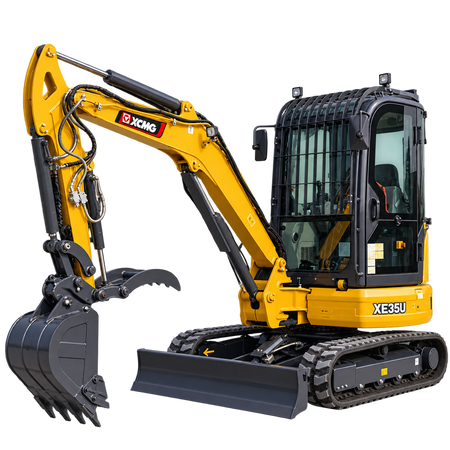

The XCMG XE35U is a zero-tail-swing mini excavator in the 4.2-ton class, engineered for excellence in tight-access construction environments. Powered by the Yanmar 3TNV88F Euro Stage V engine delivering 18.2 kW (24.7 hp) at 2,200 rpm, this machine is built for Australian conditions and commonly used for residential excavation, utility trenching, landscaping, grading, and light demolition where zero tail swing is critical for working against walls and obstacles.
Attachment fitment for the XCMG XE35U should be checked against the machine's carrier weight, hydraulic flow and pressure, pin dimensions, boom and dipper configuration, and the material being handled. BHE Attachments can help review these details before quoting or installing an attachment.
XCMG XE35U Attachment Matches
The attachment categories below are organized for the XCMG XE35U carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the XCMG XE35U when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support in extremely confined residential and commercial spaces.
Montabert breaker models previously identified for review with this carrier class include the SC22 and SC28. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the XCMG XE35U should match the work being performed. Digging buckets are commonly used for excavation and trenching in tight utility and landscaping projects, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading alongside the standard 1,740 mm blade.
Bucket fitment should be checked by pin diameter, pin spread, dipper width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The XE35U features a 1,350 mm dipper and 2,560 mm boom with 3,060 mm maximum dig depth and 0.12 m³ standard bucket capacity.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the XCMG XE35U's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on compact job sites where zero tail swing is essential for working close to structures.
These tools should be reviewed for dipper geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The XE35U features safety valves on the arm, boom, and dozer cylinder for secure operation with material handling attachments.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the XCMG XE35U when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation in very compact work zones.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The XE35U delivers 108 LPM hydraulic system flow and 50 LPM auxiliary flow at 270 bar boom pressure for smooth powered attachment operation.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the XCMG XE35U when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The XE35U delivers 28.6 kN bucket digging force and 20.3 kN arm digging force for tough ground conditions.
XCMG XE35U Jobsite Applications
These application notes help connect the XCMG XE35U to the attachment type most often used for each kind of work, especially in extremely tight-access and residential environments.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the XCMG XE35U is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or demolition prep in confined spaces.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, residential foundations, landscaping, and general excavation in very tight areas.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup in compact job sites. The 1,740 mm standard blade with 360 mm lowered height simplifies ground leveling.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the XCMG XE35U needs to handle debris, brush, pipe, demolition material, or irregular objects in restricted spaces.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed in limited work areas.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation in residential or utility settings.
Attachment Fitment Factors
The XCMG XE35U should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (4,200 kg) and excavator size class.
- Check pin diameter, pin spread, dipper width, and coupler configuration.
- Match the attachment bracket to the XCMG XE35U mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity (0.12 m³ standard), tooth style, edge type, and application rating.
- Verify compact dimensions (1,440 mm cab width, 4,960 mm transport length) and zero tail swing for access needs.
Hydraulic & Application Requirements
- Confirm hydraulic flow (108 LPM system, 50 LPM auxiliary) and pressure (270 bar boom) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing (single/bidirectional system).
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
XCMG XE35U Attachment Overview
Use this table as a quick reference for matching common XCMG XE35U attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| XCMG XE35U | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material in tight spaces. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| XCMG XE35U | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, landscaping, site development. |
| XCMG XE35U | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Dipper geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| XCMG XE35U | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| XCMG XE35U | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by XCMG XE35U configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your XCMG XE35U
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the XCMG XE35U. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground in tight-access environments.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your XCMG XE35U specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
Ready to quote attachments for your XCMG XE35U?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the XCMG XE35U carrier class, hydraulic setup, mounting requirements, and work conditions.
