Sany SY265C
Couldn't load pickup availability
Ask an expert
Sany SY265C Compatible Attachments

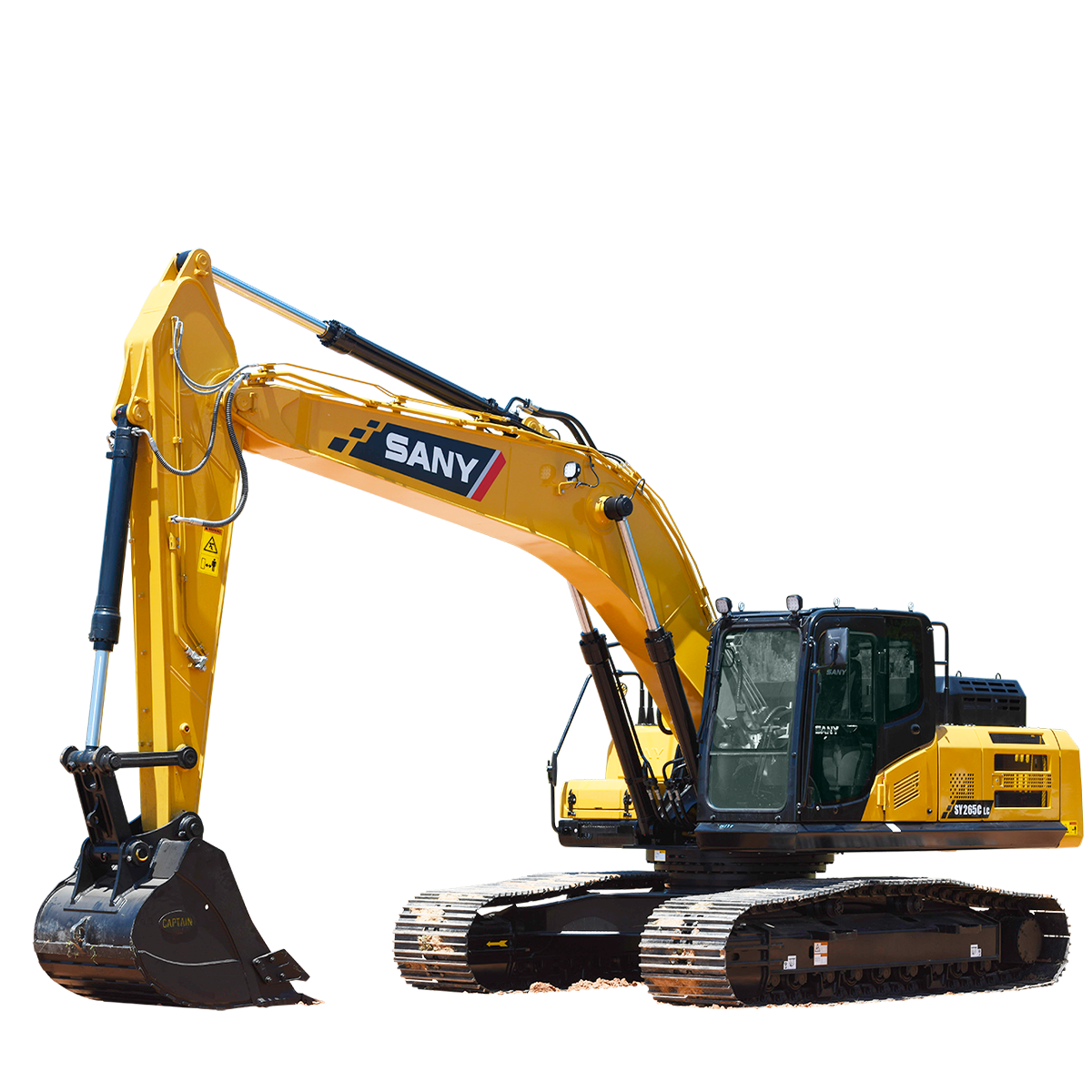

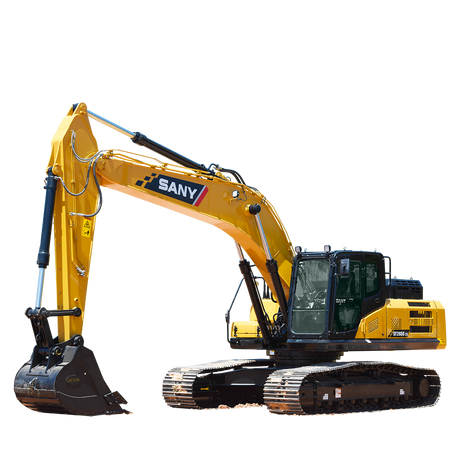

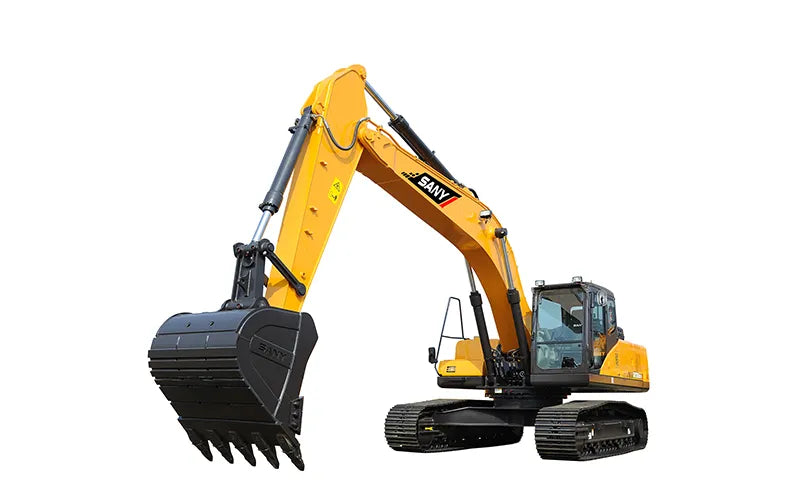

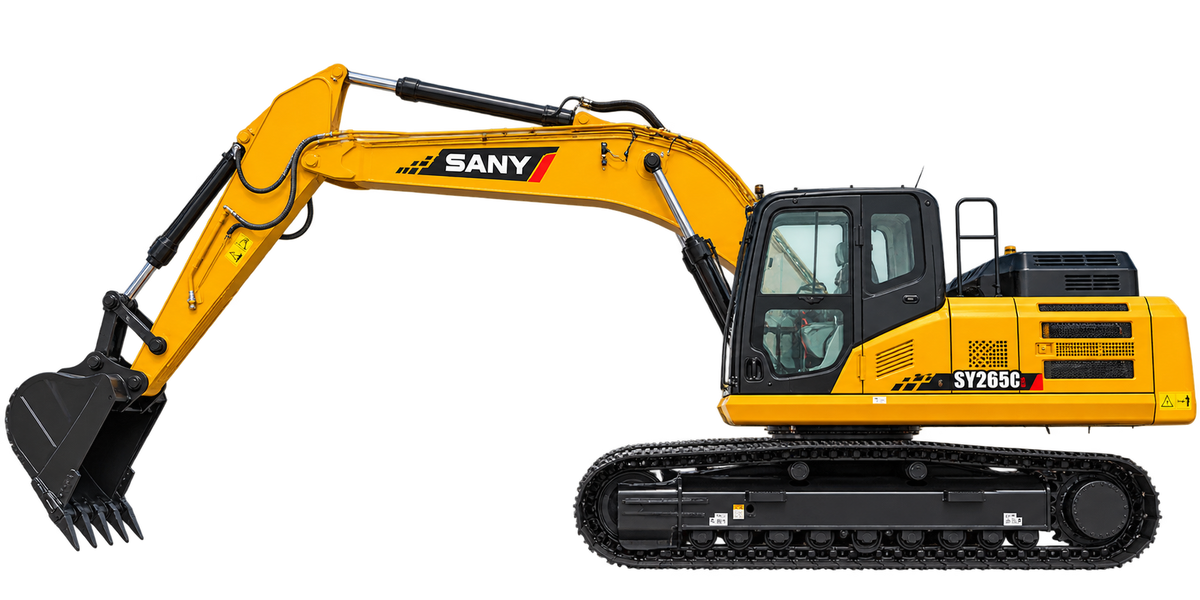

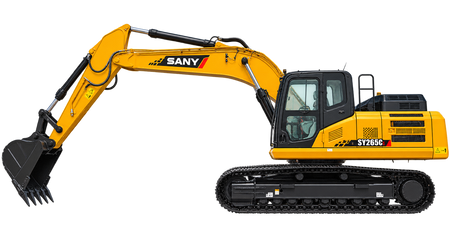

The Sany SY265C is a 26-ton class hydraulic excavator built for demanding jobs that require power, precision, and fuel efficiency. Powered by the Cummins QSB 6.7 T4F engine delivering 194.4 hp (145 kW), this machine excels at heavy excavation, quarry work, site preparation, and demolition support where reliability and high productivity are critical.
Attachment fitment for the Sany SY265C should be checked against the machine's carrier weight, hydraulic flow and pressure, pin dimensions, boom and stick configuration, and the material being handled. BHE Attachments can help review these details before quoting or installing an attachment.
Sany SY265C Attachment Matches
The attachment categories below are organized for the Sany SY265C carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Sany SY265C when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support on large-scale demanding sites.
Montabert breaker models previously identified for review with this carrier class include the V32, XL1700, XL1900, and V1800. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Sany SY265C should match the work being performed. Digging buckets are commonly used for heavy excavation and quarry work, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The SY265C offers a standard 19'4" boom with 9'8" stick for a maximum digging depth of 22'0" and reach at ground level of 33'7".
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Sany SY265C's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on large-scale job sites.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The SY265C features robust powertrain and hydraulic components designed for long life in the most demanding applications.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Sany SY265C when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation on large-scale projects.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The SY265C delivers 137.4 gal/min (520 L/min) maximum operating flow with 4,975 psi (34.3 MPa) operating pressure for powerful attachment operation.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Sany SY265C when the machine is working in compacted soil, frost, hardpan, rocky material, or quarry conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The SY265C delivers 42,039 lbf bucket breakout force and 29,225 lbf stick digging force for tough ground conditions.
Sany SY265C Jobsite Applications
These application notes help connect the Sany SY265C to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Sany SY265C is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or demolition prep on large-scale demanding sites.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, heavy foundations, quarry work, and general large-scale excavation.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup on large job sites.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Sany SY265C needs to handle debris, brush, pipe, demolition material, or irregular objects on busy construction and quarry sites.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed on medium-to-large projects.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation on challenging terrain and quarry conditions.
Attachment Fitment Factors
The Sany SY265C should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (59,525 lb / 27,000 kg) and excavator size class.
- Check pin diameter, pin spread, stick width, and coupler configuration.
- Match the attachment bracket to the Sany SY265C mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
- Verify boom and stick configuration (19'4" boom with 9'8" stick) for optimal reach and digging performance.
Hydraulic & Application Requirements
- Confirm hydraulic flow (137.4 gal/min / 520 L/min maximum) and pressure (4,975 psi / 34.3 MPa operating, 5,410 psi / 37.3 MPa power boost) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing for tool compatibility.
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Sany SY265C Attachment Overview
Use this table as a quick reference for matching common Sany SY265C attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Sany SY265C | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material on demanding sites. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Sany SY265C | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, quarry work, site development. |
| Sany SY265C | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| Sany SY265C | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Sany SY265C | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, quarry prep, pre-excavation ripping. |
Final compatibility can vary by Sany SY265C configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Sany SY265C
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Sany SY265C. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground on demanding job sites.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, boom and stick configuration, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Sany SY265C specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
Ready to quote attachments for your Sany SY265C?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the Sany SY265C carrier class, hydraulic setup, mounting requirements, and work conditions.
