Sany SY16C
Couldn't load pickup availability
Ask an expert
Sany SY16C Compatible Attachments

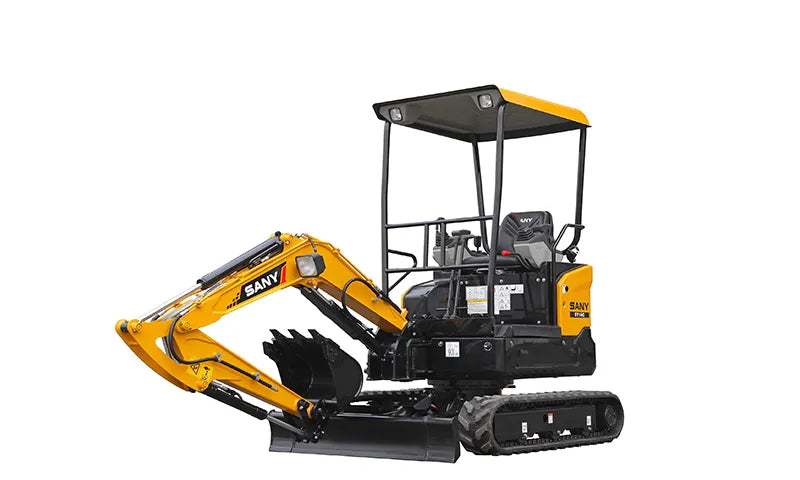

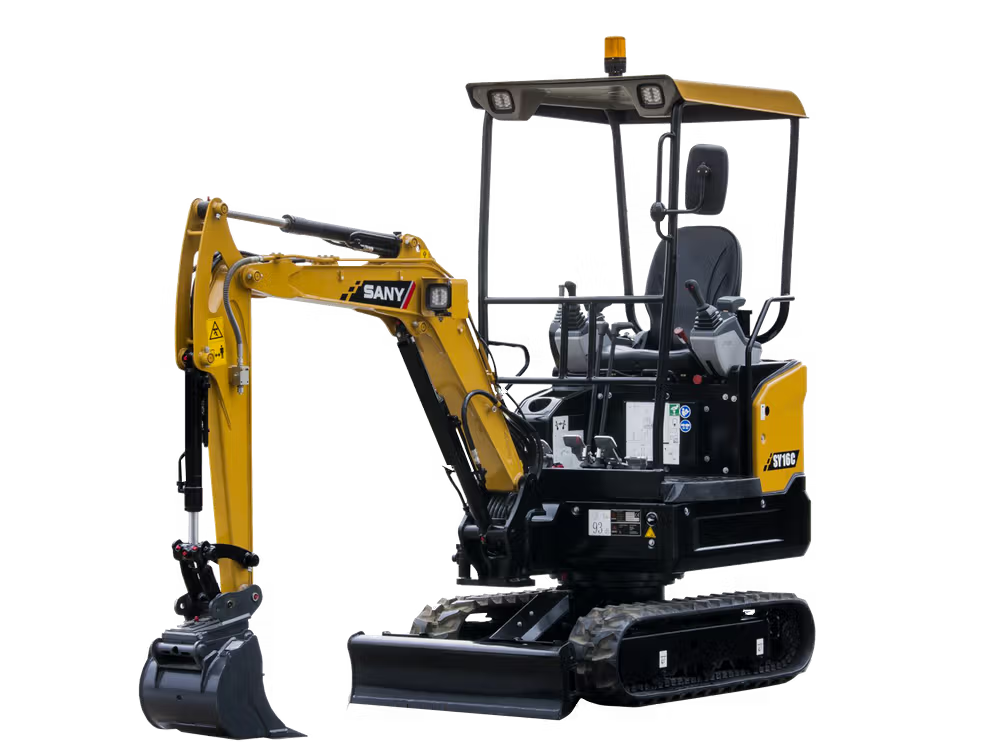

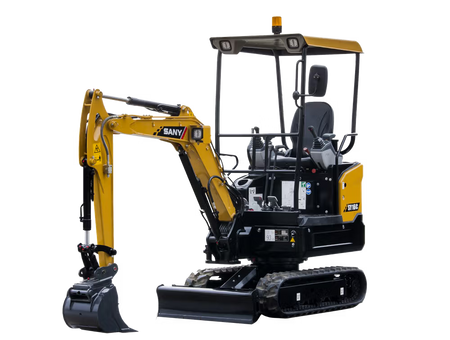

The Sany SY16C is a 1.8-ton class compact excavator, purpose-built for simplicity of operation, easy transport, and working in confined spaces where larger machines cannot access. Powered by the Yanmar 3TNV80F-SPSK engine delivering 15 HP (11.2 kW) gross power, this lightweight machine combines short tail swing design with boom swing functionality for offset digging in tight residential, landscaping, and utility work environments.
With an operating weight of just 4,023 lb and a transport width as narrow as 3' 3" (980 mm), the SY16C is designed for trailer transport behind standard vehicles and operation in the most compact job sites. Attachment fitment should be checked against the machine's carrier weight, hydraulic flow and pressure, pin dimensions, and the material being handled. BHE Attachments can help review these details before quoting or installing an attachment.
Sany SY16C Attachment Matches
The attachment categories below are organized for the Sany SY16C carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Sany SY16C when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or light demolition support in extremely confined residential and landscaping spaces.
Montabert breaker models previously identified for review with this carrier class include the SC12 and SC16. Final selection should be based on the carrier's hydraulic flow of 48.0 L/min maximum with load sensing pilot control system, 24.5 MPa operating pressure, breaker weight, bracket setup, and duty cycle. The machine delivers 40 L/min auxiliary flow at 25 MPa for powered attachment operation.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Sany SY16C should match the work being performed. Digging buckets are commonly used for small-scale excavation and trenching in tight residential and landscaping projects, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading alongside the standard dozer blade.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The SY16C features a 5' 11" (1,810 mm) boom and 3' 8" (1,130 mm) arm with a maximum digging depth of 7' 9" (2,360 mm) and 3,417 lbf bucket breakout force for its compact size class.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Sany SY16C's usefulness for attachment changes, debris handling, brush handling, light demolition cleanup, pipe handling, and sorting material on compact job sites where space is extremely limited and maneuverability is paramount.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The SY16C features a short tail swing radius of just 3' 0" (920 mm) and boom swing functionality for offset digging in the most confined spaces. The track gauge is adjustable from 2' 6" to 3' 8" for stability or narrow access.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Sany SY16C when the work involves trench compaction, utility installation, backfill compaction, landscaping preparation, or small-scale site preparation in very compact work zones.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The SY16C delivers 48.0 L/min maximum pump flow with load sensing pilot control hydraulics and 40 L/min auxiliary flow at 25 MPa for smooth powered attachment operation in tight spaces.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Sany SY16C when the machine is working in compacted soil, frost, hardpan, rocky material, or landscaping conditions where a standard bucket is not the most efficient first tool for this compact carrier class.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of light demolition cleanup. The SY16C delivers 3,417 lbf (15.2 kN) bucket breakout force and 2,068 lbf (9.2 kN) arm digging force for its compact size, with belted rubber tracks for minimal ground disturbance.
Sany SY16C Jobsite Applications
These application notes help connect the Sany SY16C to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Sany SY16C is assigned to small-scale concrete removal, rock breaking, asphalt removal, trench obstruction removal, or light demolition prep in extremely confined residential and landscaping spaces.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for small utility installation, drainage work, residential landscaping, gardening, and general compact excavation in very tight areas.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup in compact residential and landscaping job sites. The standard dozer blade with 11" height simplifies ground leveling.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Sany SY16C needs to handle debris, brush, small pipe, landscaping material, or irregular objects in restricted spaces where larger equipment cannot operate.
Compaction
Use a plate compactor when the machine is supporting small trench backfill, utility repair, landscaping preparation, or site preparation where controlled compaction is needed in very limited work areas.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation in residential or small utility settings.
Attachment Fitment Factors
The Sany SY16C should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (4,023 lb / 1,825 kg) and compact excavator size class.
- Check pin diameter, pin spread, stick width, and coupler configuration.
- Match the attachment bracket to the Sany SY16C mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
- Verify compact dimensions for transport and access needs (transport width 3' 3" to 4' 5").
- Consider adjustable track gauge (750 mm to 1,120 mm) for stability or narrow access requirements.
Hydraulic & Application Requirements
- Confirm hydraulic flow (48.0 L/min maximum pump capacity) and pressure (24.5 MPa) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing (40 L/min auxiliary flow at 25 MPa).
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Sany SY16C Attachment Overview
Use this table as a quick reference for matching common Sany SY16C attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Sany SY16C | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material in tight spaces. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Light demolition, road repair, trenching, concrete removal, rock breaking. |
| Sany SY16C | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, landscaping, gardening. |
| Sany SY16C | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, landscaping cleanup. |
| Sany SY16C | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, landscaping, backfill, utility installation, site prep. |
| Sany SY16C | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, landscaping prep, pre-excavation ripping. |
Final compatibility can vary by Sany SY16C configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Sany SY16C
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Sany SY16C. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground in extremely compact work environments.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Sany SY16C specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
Ready to quote attachments for your Sany SY16C?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the Sany SY16C carrier class, hydraulic setup, mounting requirements, and work conditions.
