Kubota U55-4
Couldn't load pickup availability
Ask an expert
Kubota U55-4 Compatible Attachments

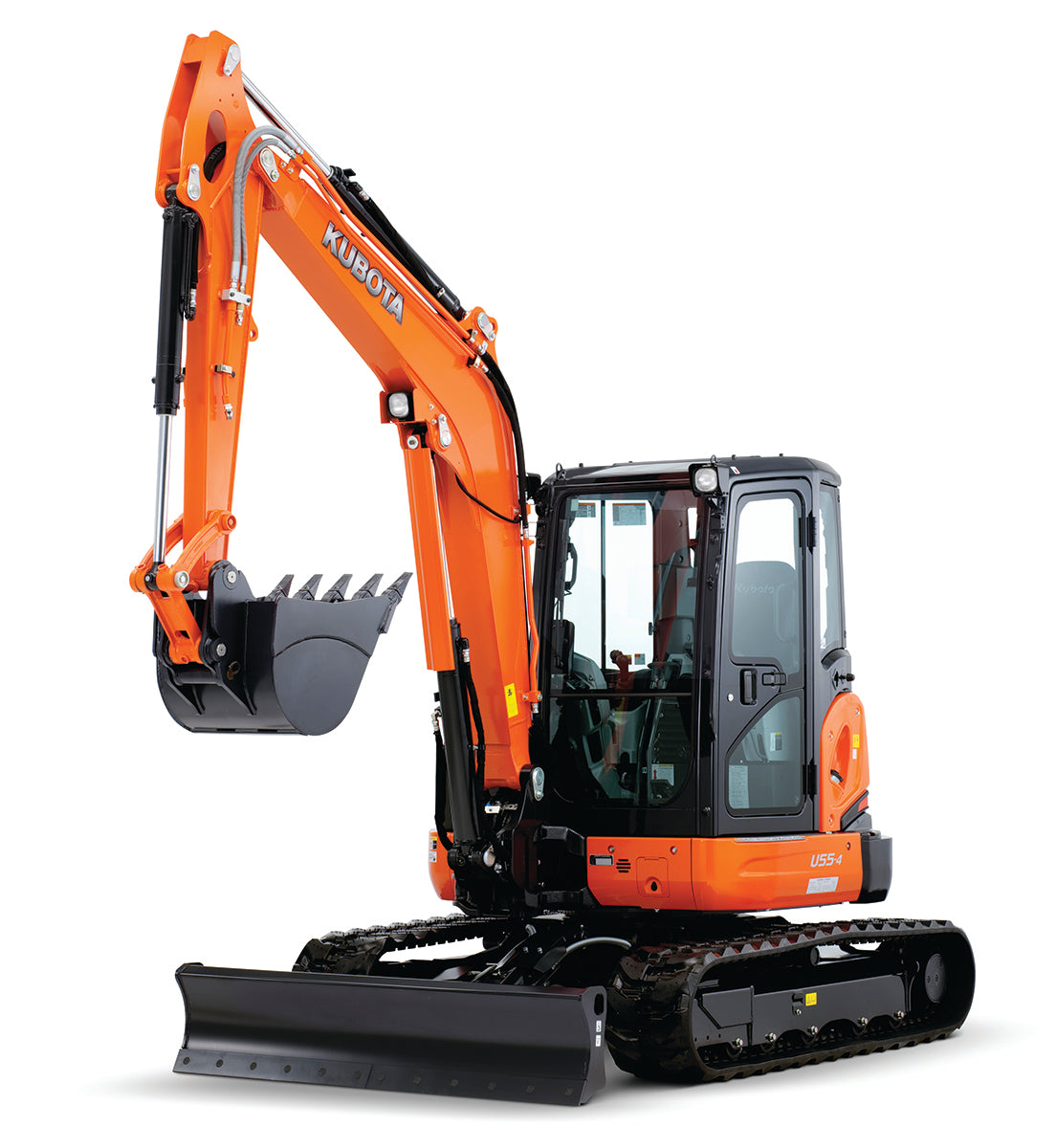

The Kubota U55-4 is a 5.4-ton class compact excavator designed with operator comfort and smart technology at the forefront. Powered by the Kubota V2607-DI water-cooled diesel engine producing 33.8 kW (46.0 PS) at 2,200 rpm, this machine is commonly used for residential excavation, utility trenching, landscaping, grading, road repair, and light demolition support across tight-access job sites.
Attachment fitment for the Kubota U55-4 should be checked against the machine's carrier weight, hydraulic flow and pressure, pin dimensions, arm configuration, and the material being handled. BHE Attachments can help review these details before quoting or installing an attachment.
Kubota U55-4 Attachment Matches
The attachment categories below are organized for the Kubota U55-4 carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Kubota U55-4 when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support on residential and commercial sites.
Montabert breaker models previously identified for review with this carrier class include the SC28 and SC36. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Kubota U55-4 should match the work being performed. Digging buckets are commonly used for excavation and trenching in utility and landscaping projects, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading alongside the standard dozer blade.
Bucket fitment should be checked by pin diameter, pin spread, arm width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The U55-4 features a 1,570 mm arm and 42.3 kN maximum bucket digging force.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Kubota U55-4's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on job sites.
These tools should be reviewed for arm geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The U55-4 offers dual auxiliary circuits (SP1 and SP2) with proportional flow control and programmable attachment settings on the digital panel.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Kubota U55-4 when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The U55-4 features a load-sensing hydraulic system with adjustable maximum oil flow on auxiliary circuits for precise attachment control.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Kubota U55-4 when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The U55-4 delivers 27.2 kN arm digging force and 42.3 kN bucket digging force for demanding ground conditions.
Kubota U55-4 Jobsite Applications
These application notes help connect the Kubota U55-4 to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Kubota U55-4 is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or demolition prep.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, foundations, landscaping, roadwork, and general excavation.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Kubota U55-4 needs to handle debris, brush, pipe, demolition material, or irregular objects.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation.
Attachment Fitment Factors
The Kubota U55-4 should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (5,400 kg with standard bucket) and excavator size class.
- Check pin diameter, pin spread, arm width, and coupler configuration.
- Match the attachment bracket to the Kubota U55-4 mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
- Verify arm length (1,570 mm) and dozer blade dimensions (1,960 × 410 mm) for reach and clearance needs.
Hydraulic & Application Requirements
- Confirm hydraulic flow (SP1: 75 L/min, SP2: 37 L/min) and pressure (SP1: 20.6 MPa, SP2: 19.1 MPa) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing (dual auxiliary circuits with proportional thumb switches).
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Kubota U55-4 Attachment Overview
Use this table as a quick reference for matching common Kubota U55-4 attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Kubota U55-4 | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Kubota U55-4 | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, landscaping, site development. |
| Kubota U55-4 | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Arm geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| Kubota U55-4 | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Kubota U55-4 | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by Kubota U55-4 configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Kubota U55-4
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Kubota U55-4. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Kubota U55-4 specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
