Kubota KX018-4
Couldn't load pickup availability
Ask an expert
Kubota KX018-4 Compatible Attachments

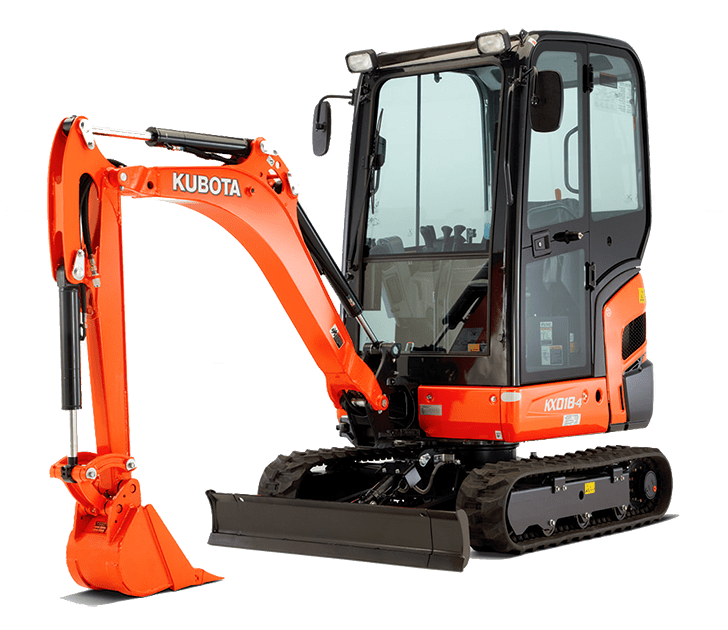

The Kubota KX018-4 is a 1.5-2.0 ton class compact excavator that raises the standard with powerful digging force and a wider working range that rivals higher-end machines. With enhanced accessibility to roadsides and residential areas, plus a variable track gauge that retracts to just 3'3.0" for tight doorways, this machine gets the job done from large construction areas to the tightest of spaces.
Attachment fitment for the Kubota KX018-4 should be checked against the machine's carrier weight, hydraulic flow, auxiliary circuit setup, pin dimensions, coupler style, mounting bracket, and the type of material being handled or broken. BHE Attachments can help review these details before quoting or installing an attachment.
Kubota KX018-4 Attachment Matches
The attachment categories below are organized for the Kubota KX018-4 carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Kubota KX018-4 when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or light demolition support in residential and roadside areas.
Montabert breaker models previously identified for review with this carrier class include SC12 and SC16. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle. The topside boom cylinder placement provides added protection when a breaker is fitted.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Kubota KX018-4 should match the work being performed. Digging buckets are commonly used for excavation and trenching, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading in confined residential and utility areas.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The KX018-4 delivers enhanced digging force with a 6% arm improvement and 2.5% bucket improvement over previous models.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Kubota KX018-4's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on compact residential and commercial job sites.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The quick coupler option allows fast attachment changes to keep productivity high on multi-task jobs.
Hydraulic Augers for Utility & Foundation Work
Hydraulic augers can be reviewed for the Kubota KX018-4 when the work involves utility pole installation, fence post drilling, foundation piers, landscaping tree planting, or soil sampling in tight-access areas.
Auger compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the drilling diameter and depth requirements for the job. The variable track gauge allows the KX018-4 to access narrow residential gates and pathways.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Kubota KX018-4 when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The KX018-4 delivers 3,594 lbs of bucket breakout force and 1,852 lbs of arm breakout force for tough conditions.
Kubota KX018-4 Jobsite Applications
These application notes help connect the Kubota KX018-4 to the attachment type most often used for each kind of work in residential, roadside, and compact commercial environments.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Kubota KX018-4 is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or light demolition prep in residential and roadside areas.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, foundations, roadwork, and general excavation where the variable track gauge and compact size prevent access issues.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup in confined areas near structures, walls, and landscaping.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Kubota KX018-4 needs to handle debris, brush, pipe, demolition material, or irregular objects on compact residential, commercial, and roadside job sites.
Drilling & Augering
Use a hydraulic auger when the machine is supporting utility pole installation, fence post setting, tree planting, foundation piers, or soil sampling where precision drilling in tight spaces is required.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation, taking advantage of the machine's enhanced digging force and breakout power.
Attachment Fitment Factors
The Kubota KX018-4 should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (3,748 lbs / 3,968 lbs) and excavator size class.
- Check pin diameter, pin spread, stick width, and coupler configuration.
- Match the attachment bracket to the Kubota KX018-4 mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
Hydraulic & Application Requirements
- Confirm hydraulic flow (7.4 GPM auxiliary flow) and pressure for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing.
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Kubota KX018-4 Attachment Overview
Use this table as a quick reference for matching common Kubota KX018-4 attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Kubota KX018-4 | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material in tight residential and roadside spaces. | Hydraulic flow (7.4 GPM auxiliary), pressure, breaker weight, bracket, tool type, and duty cycle. | Light demolition, road repair, trenching, concrete removal, rock breaking. |
| Kubota KX018-4 | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading with enhanced breakout force. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, landscaping, site development. |
| Kubota KX018-4 | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup, material sorting. |
| Kubota KX018-4 | Hydraulic Augers | Drilling holes for utility poles, fence posts, tree planting, and foundation piers. | Hydraulic flow, pressure range, auger weight, bracket, and drilling diameter/depth. | Utility installation, fencing, landscaping, foundation work, soil sampling. |
| Kubota KX018-4 | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by Kubota KX018-4 configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Kubota KX018-4
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, augers, grapples, rippers, and specialty tools for the Kubota KX018-4. The best attachment depends on whether the machine will be breaking, digging, grading, drilling, handling material, or preparing hard ground in compact working areas.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Kubota KX018-4 specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit for your compact excavator.
Ready to quote attachments for your Kubota KX018-4?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the Kubota KX018-4 carrier class, hydraulic setup, mounting requirements, and work conditions.
