John Deere 30G Compatible Attachments

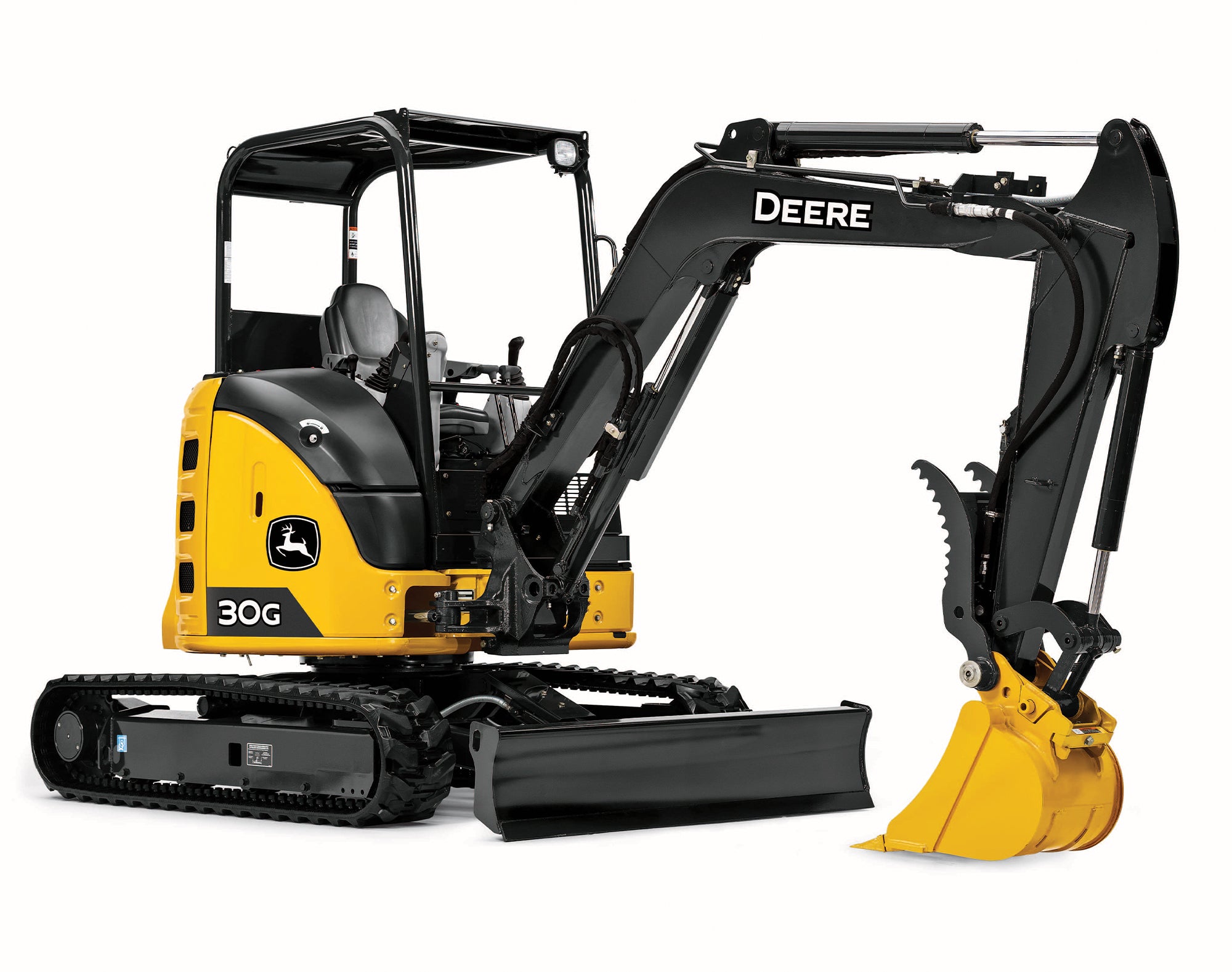

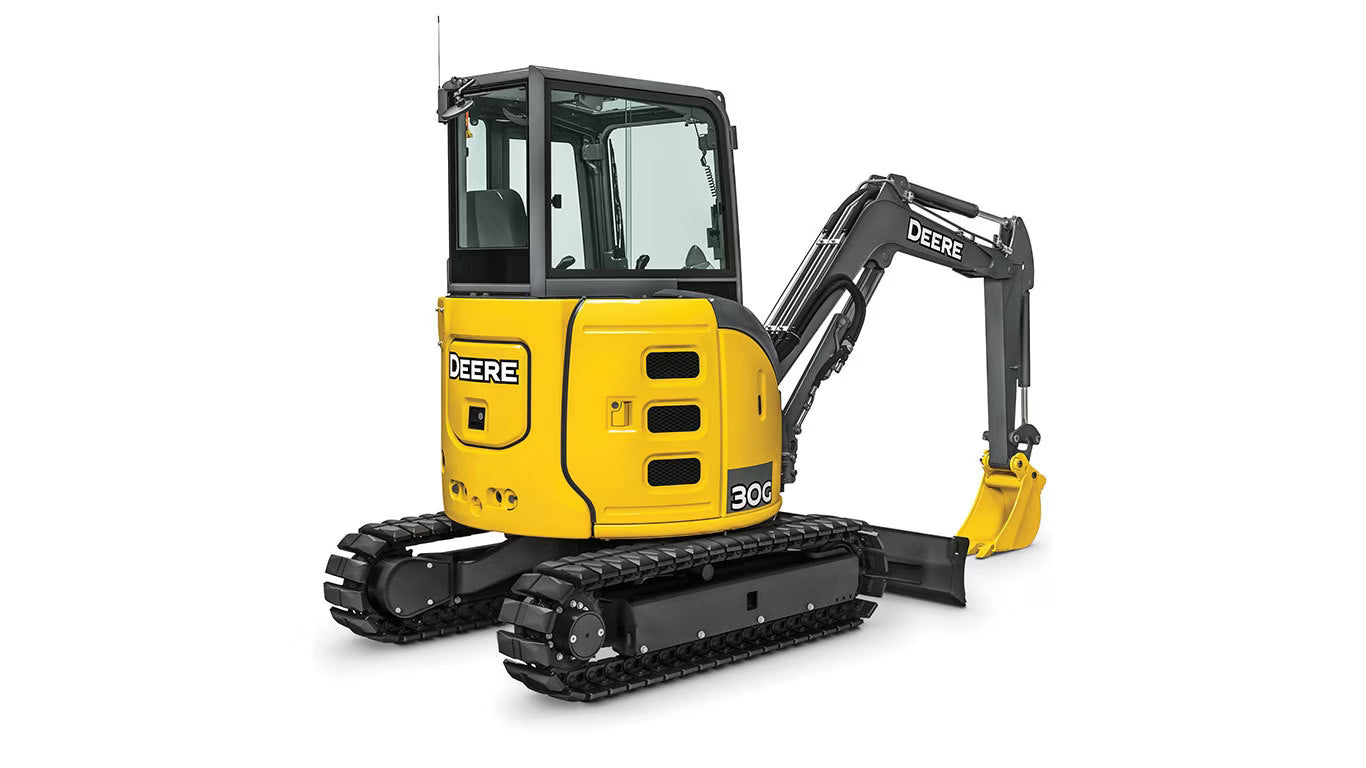

The John Deere 30G is a compact excavator in the 3-ton class, engineered for big productivity and outsized versatility in tight-access work environments. Powered by the Yanmar 3TNV88F-EPHB engine delivering 17.4 kW (23 hp), this machine is ideal for residential excavation, utility trenching, landscaping, backfilling, and light demolition where a reduced-tail-swing design and compact stature are essential.
Attachment fitment for the John Deere 30G should be checked against the machine's carrier weight, hydraulic flow and pressure, pin dimensions, arm configuration, and the material being handled. BHE Attachments can help review these details before quoting or installing an attachment.
John Deere 30G Attachment Matches
The attachment categories below are organized for the John Deere 30G carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the John Deere 30G when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support in confined residential and commercial spaces.
Montabert breaker models previously identified for review with this carrier class include the SC16, SC22, and SC28. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the John Deere 30G should match the work being performed. Digging buckets are commonly used for excavation and trenching in tight utility and landscaping projects, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading alongside the standard backfill blade.
Bucket fitment should be checked by pin diameter, pin spread, arm width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The 30G offers a standard 1.17 m (3 ft 10 in) arm with a maximum digging depth of 2.79 m (9 ft 2 in) for versatile work in compact areas.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the John Deere 30G's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on compact job sites where space is at a premium.
These tools should be reviewed for arm geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The 30G features a reduced-tail-swing design with a 31-inch tail-swing radius and boom swing angles of 72° left and 62° right for enhanced maneuverability in tight spaces.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the John Deere 30G when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation in compact work zones.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The 30G delivers 61.2 L/min (16.2 gpm) auxiliary hydraulic flow with dual variable-displacement pumps for smooth powered attachment operation.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the John Deere 30G when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The 30G delivers enhanced lift capacity and breakout force compared to previous models for tough ground conditions.
John Deere 30G Jobsite Applications
These application notes help connect the John Deere 30G to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the John Deere 30G is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or demolition prep in confined spaces.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, residential foundations, landscaping, and general excavation in very tight areas.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup in compact job sites. The standard backfill blade enables grading and filling for added versatility.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the John Deere 30G needs to handle debris, brush, pipe, demolition material, or irregular objects in restricted spaces.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed in limited work areas.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation in residential or utility settings.
Attachment Fitment Factors
The John Deere 30G should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (3,105 kg with canopy / 3,275 kg with cab) and excavator size class.
- Check pin diameter, pin spread, arm width, and coupler configuration.
- Match the attachment bracket to the John Deere 30G mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
- Verify reduced-tail-swing configuration and compact transport dimensions for access needs.
Hydraulic & Application Requirements
- Confirm hydraulic flow (61.2 L/min / 16.2 gpm auxiliary) and pressure for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing (standard selector valve for two attachments available).
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
John Deere 30G Attachment Overview
Use this table as a quick reference for matching common John Deere 30G attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| John Deere 30G | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material in tight spaces. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| John Deere 30G | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, landscaping, site development. |
| John Deere 30G | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Arm geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| John Deere 30G | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| John Deere 30G | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by John Deere 30G configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your John Deere 30G
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the John Deere 30G. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground in tight-access environments.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, arm length, and a short description of the work being performed.
