John Deere 160G LC Compatible Attachments

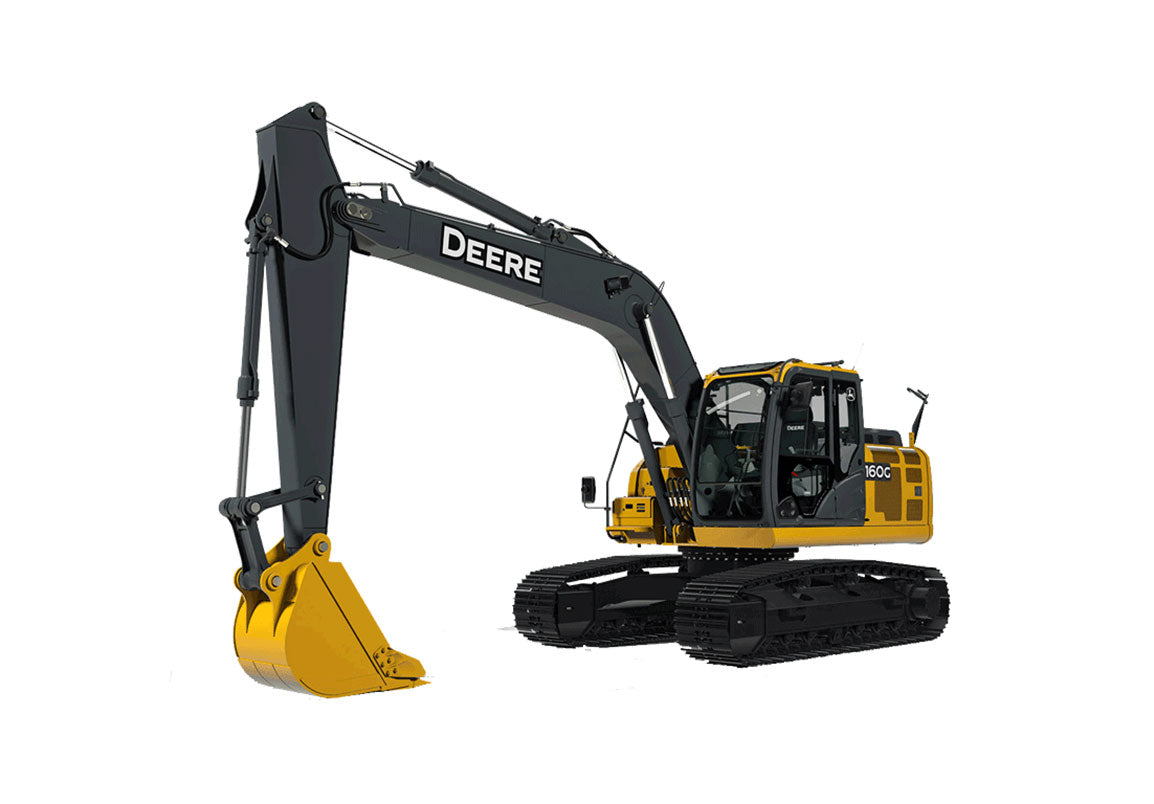

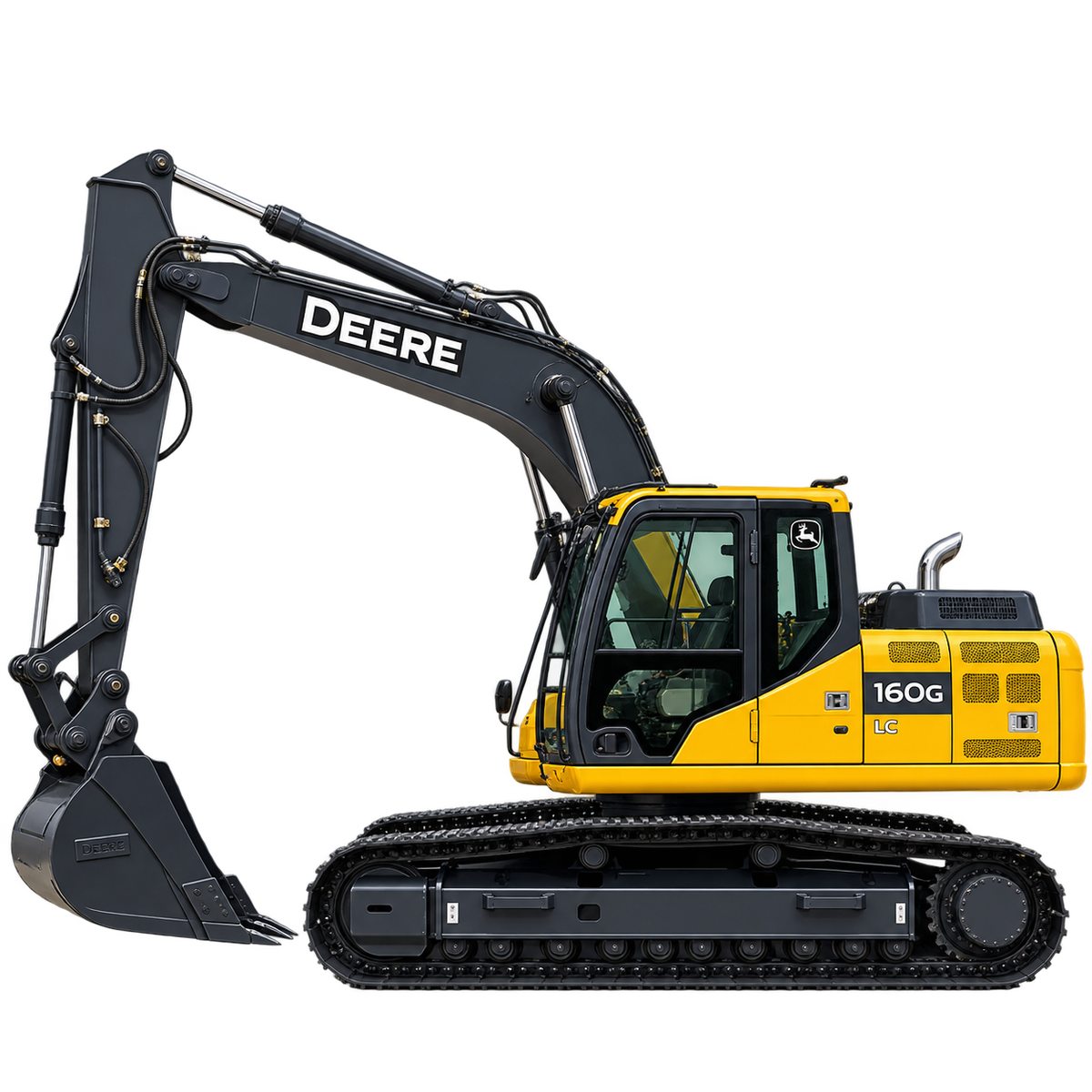

The John Deere 160G LC is a 16-18 ton class hydraulic excavator built for versatile performance across construction, utility, and site development applications. Powered by a John Deere PowerTech PVX engine delivering 90 kW (121 hp) with an open-center load-sensing hydraulic system, this machine offers smooth, responsive operation with excellent fuel efficiency. The 160G LC features two arm length options and a comprehensive bucket lineup to match any job requirement.
Attachment fitment for the John Deere 160G LC should be checked against the machine's carrier weight, hydraulic flow from the dual axial-piston pumps, auxiliary circuit setup, pin dimensions, coupler style, mounting bracket, and the type of material being handled or broken. BHE Attachments can help review these details before quoting or installing an attachment.
John Deere 160G LC Attachment Matches
The attachment categories below are organized for the John Deere 160G LC carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the John Deere 160G LC when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support on construction and infrastructure projects.
Montabert breaker models previously identified for review with this carrier class include M900 and XL1300. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle. The power boost function provides additional hydraulic pressure when needed for demanding breaker applications.
Digging, Trenching, Grading & Ditching Buckets
Bucket selection for the John Deere 160G LC should match the work being performed. Digging buckets are commonly used for excavation and trenching, while grading or ditching buckets are better suited for slope work, backfill shaping, finish grading, and ditch cleaning on construction and utility projects.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. John Deere offers a full line of general purpose high capacity, heavy duty, and ditching buckets with Fanggs or ESCO teeth standard. The 160G LC delivers 119 kN (26,665 lb) of bucket digging force for demanding conditions.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the John Deere 160G LC's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on construction and utility job sites.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The hydraulic coupler option enables fast attachment changes to keep productivity high on multi-task jobs.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the John Deere 160G LC when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation on construction projects.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The load-sensing hydraulic system automatically adjusts flow to match the compactor's requirements for efficient operation.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the John Deere 160G LC when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The 160G LC delivers 119 kN of bucket digging force and up to 93 kN of arm force for tough pre-excavation conditions.
John Deere 160G LC Jobsite Applications
These application notes help connect the John Deere 160G LC to the attachment type most often used for each kind of work on construction, utility, and site development projects.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the John Deere 160G LC is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or demolition prep on construction and infrastructure projects.
Excavation & Trenching
Use digging, trenching, or heavy-duty buckets when the machine is being used for utility installation, drainage work, foundations, roadwork, and general excavation where the 19 ft 7 in to 21 ft 4 in digging depth provides excellent reach.
Grading & Cleanup
Use grading, ditching, or cleanup buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup on construction and landscaping projects.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the John Deere 160G LC needs to handle debris, brush, pipe, demolition material, or irregular objects on construction and utility job sites.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed in trenches and restricted areas.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation, taking advantage of the machine's 119 kN bucket digging force and power boost capability.
Attachment Fitment Factors
The John Deere 160G LC should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (18,017 kg / 39,685 lb) and excavator size class.
- Check pin diameter, pin spread, stick width (2.60 m or 3.10 m arm options), and coupler configuration.
- Match the attachment bracket to the John Deere 160G LC mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style (Fanggs or ESCO), edge type, and application rating.
Hydraulic & Application Requirements
- Confirm hydraulic flow (191 L/min x 2 dual pumps) and pressure (34,336 kPa implement / 38,000 kPa power boost) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing.
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
John Deere 160G LC Attachment Overview
Use this table as a quick reference for matching common John Deere 160G LC attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| John Deere 160G LC | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material on construction and infrastructure projects. | Hydraulic flow (191 L/min x 2), pressure (34,336 kPa / 38,000 kPa power boost), breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| John Deere 160G LC | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading with strong breakout force. | Pin dimensions, coupler setup, bucket width, capacity, tooth style (Fanggs/ESCO), and edge type. | Excavation, utility work, grading, drainage, site development, landscaping. |
| John Deere 160G LC | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup, material sorting. |
| John Deere 160G LC | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| John Deere 160G LC | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by John Deere 160G LC configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your John Deere 160G LC
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the John Deere 160G LC. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, arm length (2.60 m or 3.10 m), and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your John Deere 160G LC specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit for your excavator.
Ready to quote attachments for your John Deere 160G LC?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the John Deere 160G LC carrier class, hydraulic setup, mounting requirements, and work conditions.
