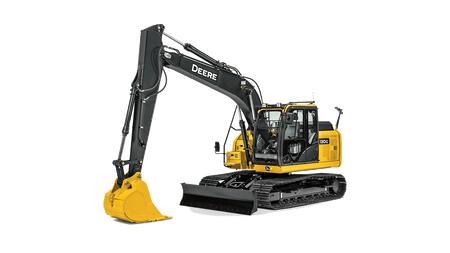

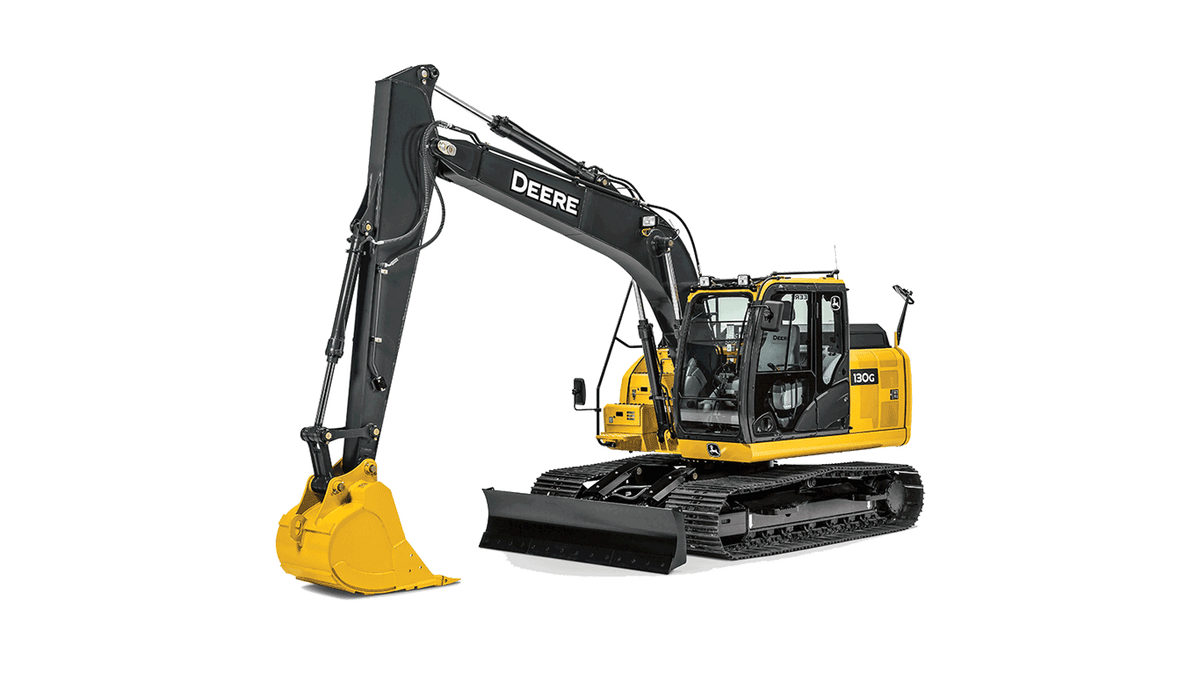

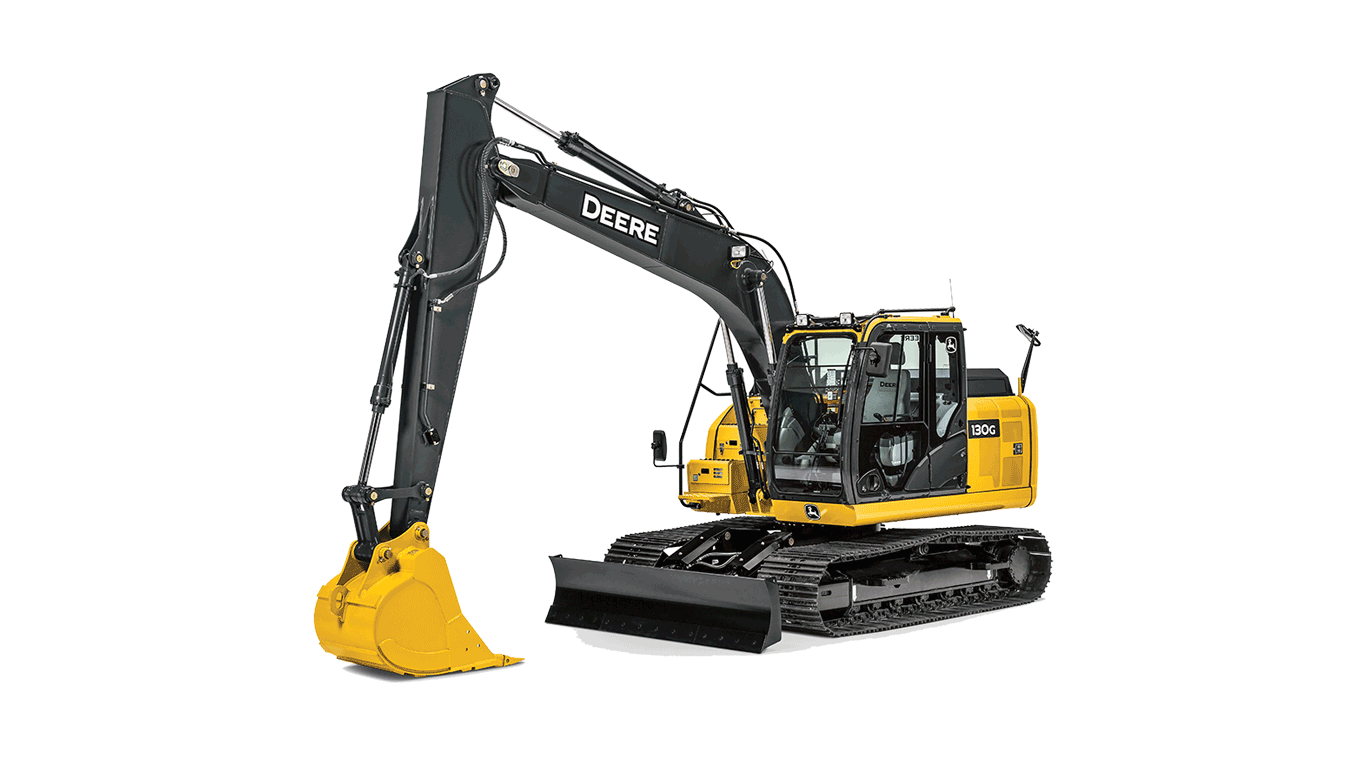

John Deere 130G
Couldn't load pickup availability
Ask an expert
Caterpillar 305CR Compatible Attachments
The Caterpillar 305CR is a compact-radius mini excavator in the 5-ton class, designed for tight-access work where power and precision matter. This machine is commonly used for residential excavation, utility trenching, landscaping, site cleanup, grading, and demolition support in confined spaces.
Attachment fitment for the Caterpillar 305CR should be checked against the machine's carrier weight, hydraulic flow and pressure, pin dimensions, stick configuration, coupler style, and the material being handled. BHE Attachments can help review these details before quoting or installing an attachment.
Caterpillar 305CR Attachment Matches
The attachment categories below are organized for the Caterpillar 305CR carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Caterpillar 305CR when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support in tight spaces.
Montabert breaker models previously identified for review with this carrier class include the 501NG and XL1000. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Caterpillar 305CR should match the work being performed. Digging buckets are commonly used for excavation and trenching in residential and utility settings, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading in confined areas.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The 305CR offers both standard and long stick options.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Caterpillar 305CR's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on job sites with limited space.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The 305CR is available with pin-on, dual lock manual coupler, and hydraulic coupler options.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Caterpillar 305CR when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation in compact work zones.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The 305CR features a primary auxiliary circuit with 80 L/min flow and 265 bar pressure.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Caterpillar 305CR when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The 305CR delivers strong dig and lift performance for its compact class.
Caterpillar 305CR Jobsite Applications
These application notes help connect the Caterpillar 305CR to the attachment type most often used for each kind of work, especially in tight-access and residential environments.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Caterpillar 305CR is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or demolition prep in confined spaces.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, residential foundations, landscaping, and general excavation in tight areas.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup in compact job sites.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Caterpillar 305CR needs to handle debris, brush, pipe, demolition material, or irregular objects in restricted spaces.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed in limited work areas.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation in residential or utility settings.
Attachment Fitment Factors
The Caterpillar 305CR should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (4,996 kg to 5,754 kg) and excavator size class.
- Check pin diameter, pin spread, stick width, and coupler configuration (pin-on, dual lock, or hydraulic).
- Match the attachment bracket to the Caterpillar 305CR mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
- Verify stick length (standard 1,351 mm or long 1,601 mm) for reach and clearance needs.
Hydraulic & Application Requirements
- Confirm hydraulic flow (133 L/min at 2,400 rpm) and pressure (265 bar equipment, 200 bar swing) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing (primary 80 L/min, secondary 28 L/min).
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Caterpillar 305CR Attachment Overview
Use this table as a quick reference for matching common Caterpillar 305CR attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Caterpillar 305CR | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material in tight spaces. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Caterpillar 305CR | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, landscaping, site development. |
| Caterpillar 305CR | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| Caterpillar 305CR | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Caterpillar 305CR | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by Caterpillar 305CR configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Caterpillar 305CR
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Caterpillar 305CR. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground in tight-access environments.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, stick length, and a short description of the work being performed.
