Hyundai HX85A Compatible Attachments

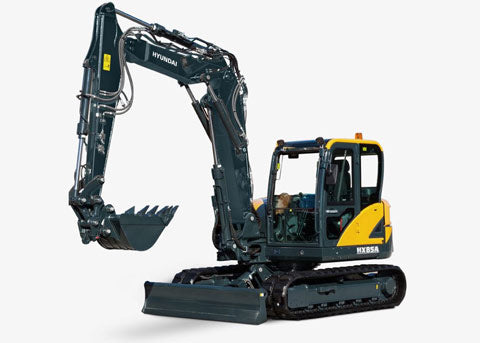

The Hyundai HX85A is an 8.5-ton class hydraulic excavator built for demanding jobs that require power, precision, and fuel efficiency. Powered by the Yanmar 4TNV98C-PHYB engine delivering 65.1 hp (48.5 kW), this machine excels at heavy excavation, utility work, site preparation, and demolition support where reliability and versatility are critical.
Attachment fitment for the Hyundai HX85A should be checked against the machine's carrier weight, hydraulic flow and pressure, pin dimensions, stick configuration, and the material being handled. BHE Attachments can help review these details before quoting or installing an attachment.
Hyundai HX85A Attachment Matches
The attachment categories below are organized for the Hyundai HX85A carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Hyundai HX85A when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support on demanding job sites.
Montabert breaker models previously identified for review with this carrier class include the SC36, SC42, and SC50. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Hyundai HX85A should match the work being performed. Digging buckets are commonly used for heavy excavation and trenching, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The HX85A offers a mono boom with 11'8" length and arm options of 5'9" and 6'11" for maximum dig depths of 14'1" and 15'3" respectively.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Hyundai HX85A's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on busy job sites.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The HX85A features an X-leg type center frame and reinforced box-section track frames for enhanced stability when handling heavy or irregular loads.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Hyundai HX85A when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation on medium-to-large projects.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The HX85A delivers 38.04 gpm (144 lpm) maximum main pump flow with 4,062 psi (280 bar) relief valve setting for powerful attachment operation.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Hyundai HX85A when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The HX85A delivers strong bucket and arm digging forces for tough ground conditions, with SAE bucket digging force of 61.6 kN and ISO arm crowd force of 41.4 kN.
Hyundai HX85A Jobsite Applications
These application notes help connect the Hyundai HX85A to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Hyundai HX85A is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or demolition prep on demanding sites.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, foundations, roadwork, and general heavy excavation.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup on larger job sites. The standard dozer blade with angle blade option simplifies ground leveling.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Hyundai HX85A needs to handle debris, brush, pipe, demolition material, or irregular objects on busy construction sites.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed on medium-to-large projects.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation on challenging terrain.
Attachment Fitment Factors
The Hyundai HX85A should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (19,030 lb / 8,630 kg) and excavator size class.
- Check pin diameter, pin spread, stick width, and coupler configuration.
- Match the attachment bracket to the Hyundai HX85A mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
- Verify boom and arm configuration (11'8" mono boom with 5'9" or 6'11" arm) for optimal reach and digging performance.
Hydraulic & Application Requirements
- Confirm hydraulic flow (38.04 gpm / 144 lpm maximum main pump) and pressure (4,062 psi / 280 bar implement circuits) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing (2-way auxiliary with rotating piping available).
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Hyundai HX85A Attachment Overview
Use this table as a quick reference for matching common Hyundai HX85A attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Hyundai HX85A | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material on demanding sites. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Hyundai HX85A | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, site development. |
| Hyundai HX85A | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| Hyundai HX85A | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Hyundai HX85A | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by Hyundai HX85A configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Hyundai HX85A
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Hyundai HX85A. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground on demanding job sites.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, boom and arm configuration, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Hyundai HX85A specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
Ready to quote attachments for your Hyundai HX85A?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the Hyundai HX85A carrier class, hydraulic setup, mounting requirements, and work conditions.
