Hyundai HX300L Compatible Attachments

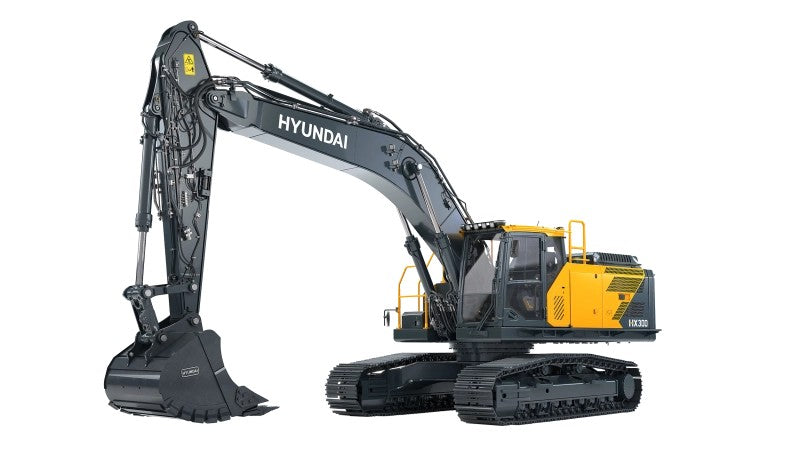

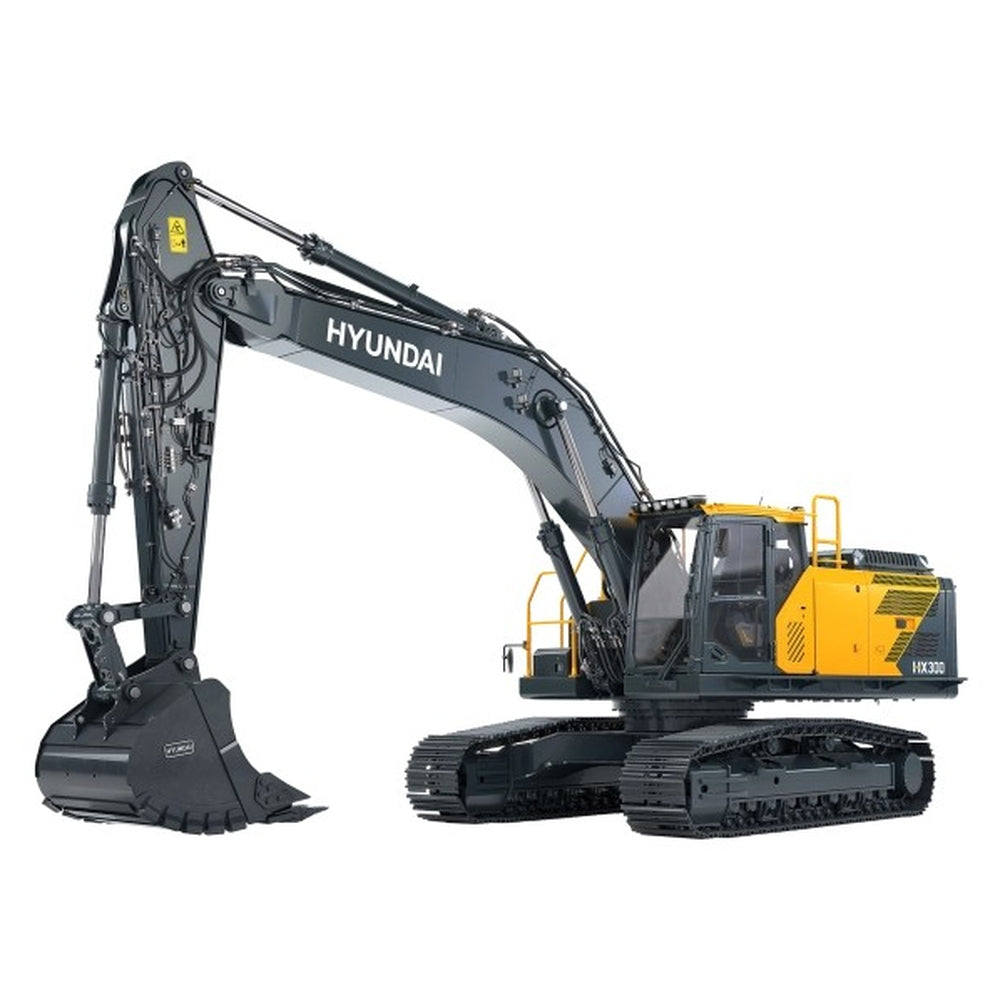

The Hyundai HX300L is a 30-ton class crawler excavator engineered for heavy-duty earthmoving, quarry work, mining support, and large-scale infrastructure projects. Powered by the Cummins QSB6.7 engine delivering 180 kW (242 HP), this machine combines robust performance with advanced hydraulic efficiency and operator comfort for demanding job sites.
Attachment fitment for the Hyundai HX300L should be checked against the machine's carrier weight, hydraulic flow and pressure, pin dimensions, arm configuration, undercarriage setup, and the material being handled or broken. BHE Attachments can help review these details before quoting or installing an attachment.
Hyundai HX300L Attachment Matches
The attachment categories below are organized for the Hyundai HX300L carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Hyundai HX300L when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or large-scale demolition support.

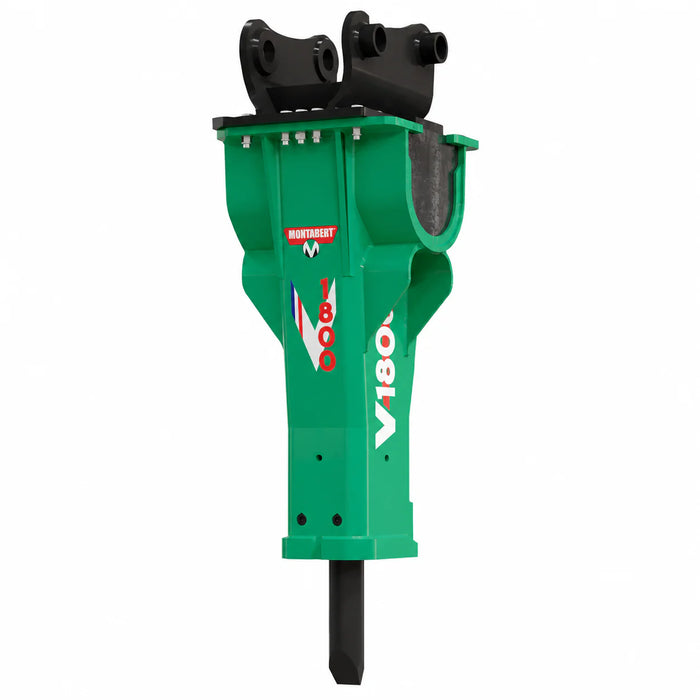

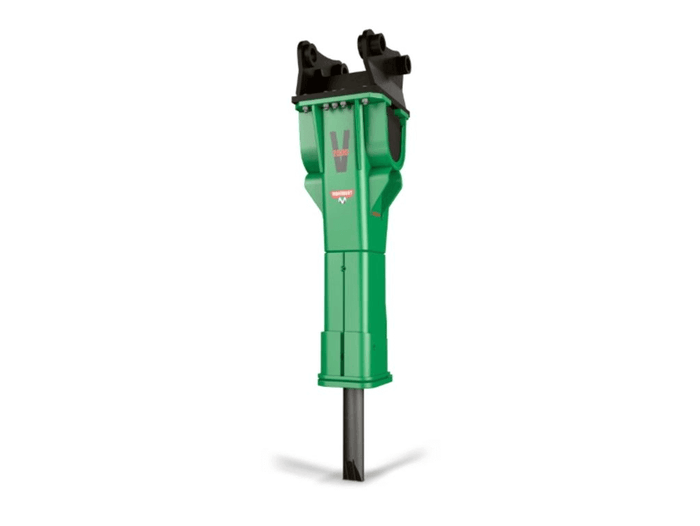

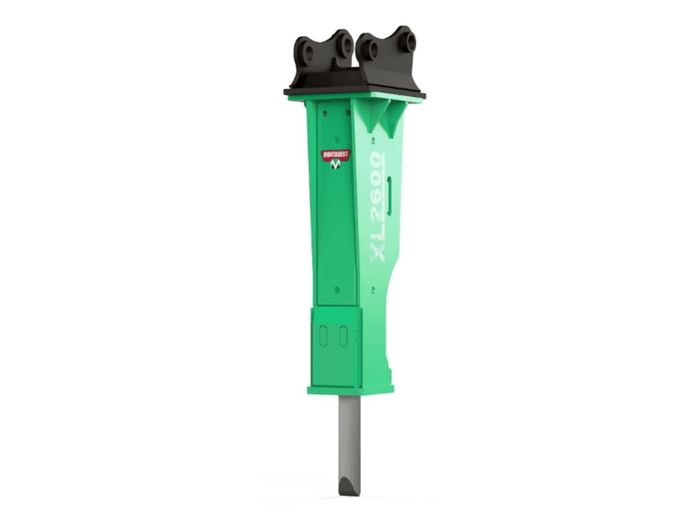

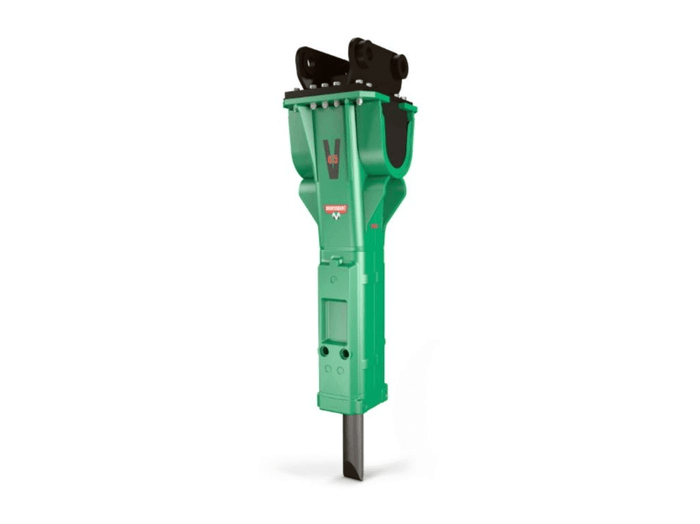

Montabert breaker models previously identified for review with this carrier class include V45, V1800, V2500, and XL2600. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Hyundai HX300L should match the work being performed. Digging buckets are commonly used for excavation and trenching in heavy earthmoving and quarry applications, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading on large job sites.
Bucket fitment should be checked by pin diameter, pin spread, arm width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The HX300L offers multiple arm lengths (2.1 m, 2.5 m, 3.05 m, and 3.75 m) with a maximum bucket capacity of 1.85 m³ for versatile digging configurations. Heavy duty, rock, and long reach bucket options are available.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Hyundai HX300L's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on heavy construction and quarry job sites.
These tools should be reviewed for arm geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The HX300L features a robust X-leg center frame with pentagonal box-type track frames and multiple shoe options (600 mm to 900 mm) for enhanced stability during material handling.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Hyundai HX300L when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation on large-scale projects.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The HX300L delivers dual variable displacement tandem axial piston pumps with a maximum flow of 2 x 273 L/min for smooth powered attachment operation.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Hyundai HX300L when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The HX300L delivers 26,500 kgf maximum drawbar pull and 100.9 kgf·m max torque for tough ground conditions.
Hyundai HX300L Jobsite Applications
These application notes help connect the Hyundai HX300L to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Hyundai HX300L is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or large-scale demolition prep.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, foundations, roadwork, quarry excavation, and general heavy earthmoving.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup on large construction sites.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Hyundai HX300L needs to handle debris, brush, pipe, demolition material, or irregular objects on heavy construction and quarry job sites.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed on large-scale projects.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation in quarry or heavy construction settings.
Attachment Fitment Factors
The Hyundai HX300L should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (30,200 kg standard with 600 mm shoes) and excavator size class.
- Check pin diameter, pin spread, arm width, and coupler configuration.
- Match the attachment bracket to the Hyundai HX300L mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
- Verify arm length configuration (2.1 m, 2.5 m, 3.05 m, or 3.75 m) and undercarriage shoe width (600 mm to 900 mm).
Hydraulic & Application Requirements
- Confirm hydraulic flow (2 x 273 L/min main pump) and pressure (350 kgf/cm² implement, 380 kgf/cm² power boost) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing (single-acting, double-acting, or rotating piping kits available).
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Hyundai HX300L Attachment Overview
Use this table as a quick reference for matching common Hyundai HX300L attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Hyundai HX300L | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material in heavy-duty applications. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking, quarry work. |
| Hyundai HX300L | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, site development, quarry loading. |
| Hyundai HX300L | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Arm geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup, quarry sorting. |
| Hyundai HX300L | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Hyundai HX300L | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping, quarry stripping. |
Final compatibility can vary by Hyundai HX300L configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Hyundai HX300L
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Hyundai HX300L. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground in heavy-duty environments.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, arm length, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Hyundai HX300L specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
Ready to quote attachments for your Hyundai HX300L?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the Hyundai HX300L carrier class, hydraulic setup, mounting requirements, and work conditions.
