Hyundai HX145 LCR
Couldn't load pickup availability
Ask an expert
Hyundai HX145 LCR Compatible Attachments

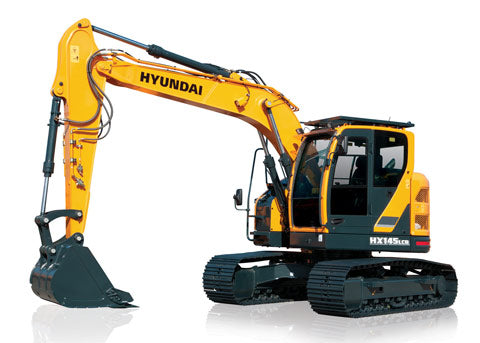

The Hyundai HX145 LCR is a compact-radius 15-ton class hydraulic excavator powered by a Perkins 1204F Tier 4 Final engine, designed for urban construction, roadwork, utility installation, and confined-space excavation. This guide covers attachment compatibility for the Hyundai HX145 LCR, including hydraulic breakers, digging buckets, trenching buckets, grading buckets, couplers, thumbs, and specialty excavator tools.
When selecting attachments for the Hyundai HX145 LCR, verify the machine's operating weight, hydraulic flow capacity, boom and arm configuration, pin dimensions, and coupler setup to ensure proper fitment and safe operation. BHE Attachments can assist with matching the right tool to this compact-radius carrier.
Hyundai HX145 LCR Attachment Matches
The attachment categories below are organized for the Hyundai HX145 LCR excavator carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Rock & Concrete Demolition
Hydraulic breakers and hammers are a key attachment match for the Hyundai HX145 LCR when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support in urban environments.

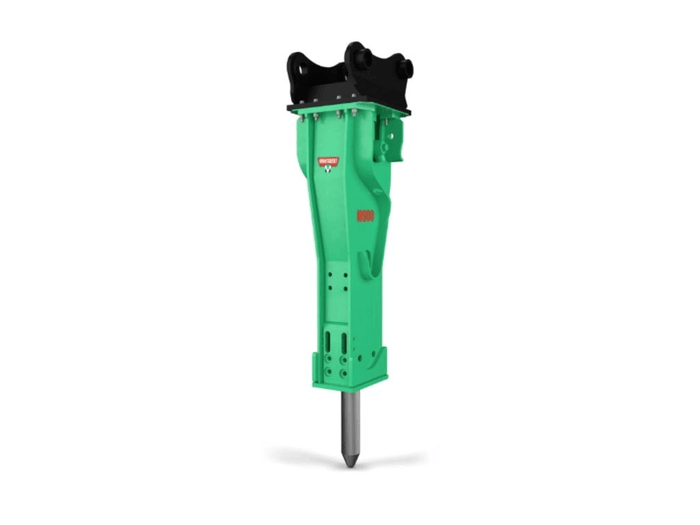

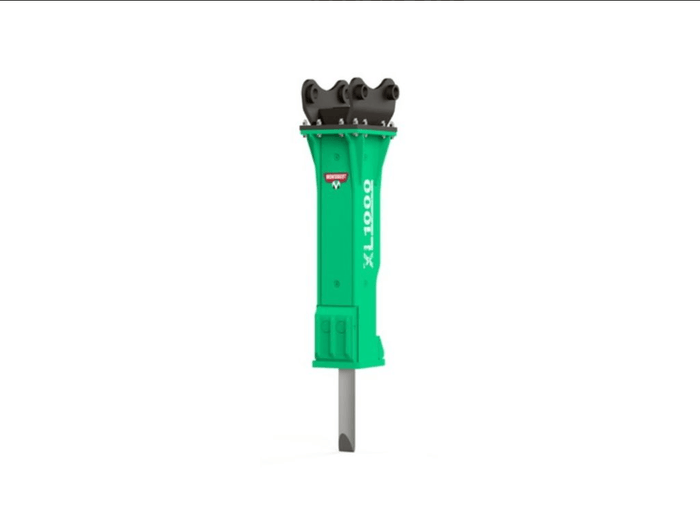

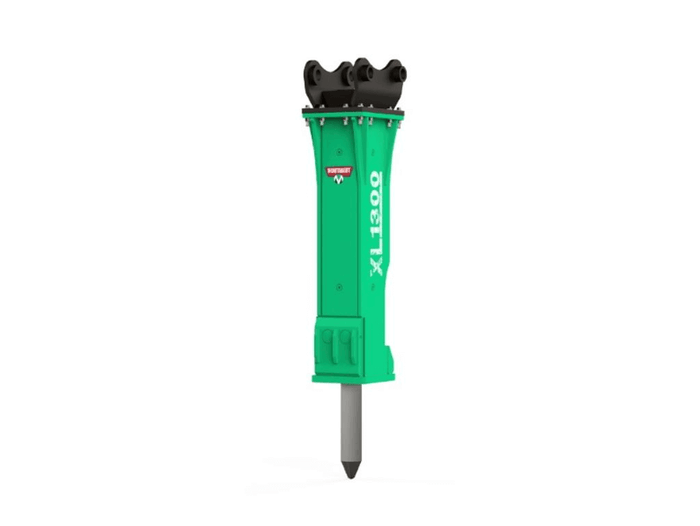

Montabert breaker models previously identified for review with this carrier class include 501NG, XL1000, M900, and XL1300. Final selection should be based on the carrier's hydraulic flow of up to 253.6 L/min, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching & Grading Buckets
Bucket selection for the Hyundai HX145 LCR should match the work being performed. Digging buckets are commonly used for excavation and trenching, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading in confined urban spaces.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The HX145 LCR supports a standard 4.6m boom and 2.5m arm configuration with bucket range from 0.52 to 1.85 m³.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Hyundai HX145 LCR's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on urban job sites with limited space.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits in compact-radius operation.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Hyundai HX145 LCR when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation in urban and confined areas.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Hyundai HX145 LCR when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup.
Hyundai HX145 LCR Jobsite Applications
These application notes help connect the Hyundai HX145 LCR to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Hyundai HX145 LCR is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or demolition prep in urban settings.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, foundations, roadwork, and general excavation in confined spaces.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup on urban job sites.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Hyundai HX145 LCR needs to handle debris, brush, pipe, demolition material, or irregular objects in tight working areas.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed in limited spaces.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation in urban or roadwork projects.
Attachment Fitment Factors
The Hyundai HX145 LCR should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight of 15,160 kg (33,420 lb) including standard equipment and operator.
- Check pin diameter, pin spread, stick width, and coupler configuration.
- Match the attachment bracket to the Hyundai HX145 LCR mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
Hydraulic & Application Requirements
- Confirm hydraulic flow up to 253.6 L/min and pressure for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing.
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Hyundai HX145 LCR Attachment Overview
Use this table as a quick reference for matching common Hyundai HX145 LCR attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Hyundai HX145 LCR | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material in urban and confined spaces. | Hydraulic flow up to 253.6 L/min, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Hyundai HX145 LCR | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, site development. |
| Hyundai HX145 LCR | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material in tight spaces. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| Hyundai HX145 LCR | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Hyundai HX145 LCR | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by Hyundai HX145 LCR configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Hyundai HX145 LCR
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Hyundai HX145 LCR. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Hyundai HX145 LCR specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
Ready to quote attachments for your Hyundai HX145 LCR?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the Hyundai HX145 LCR carrier class, hydraulic setup, mounting requirements, and work conditions.
