Hitachi ZX135US Compatible Attachments

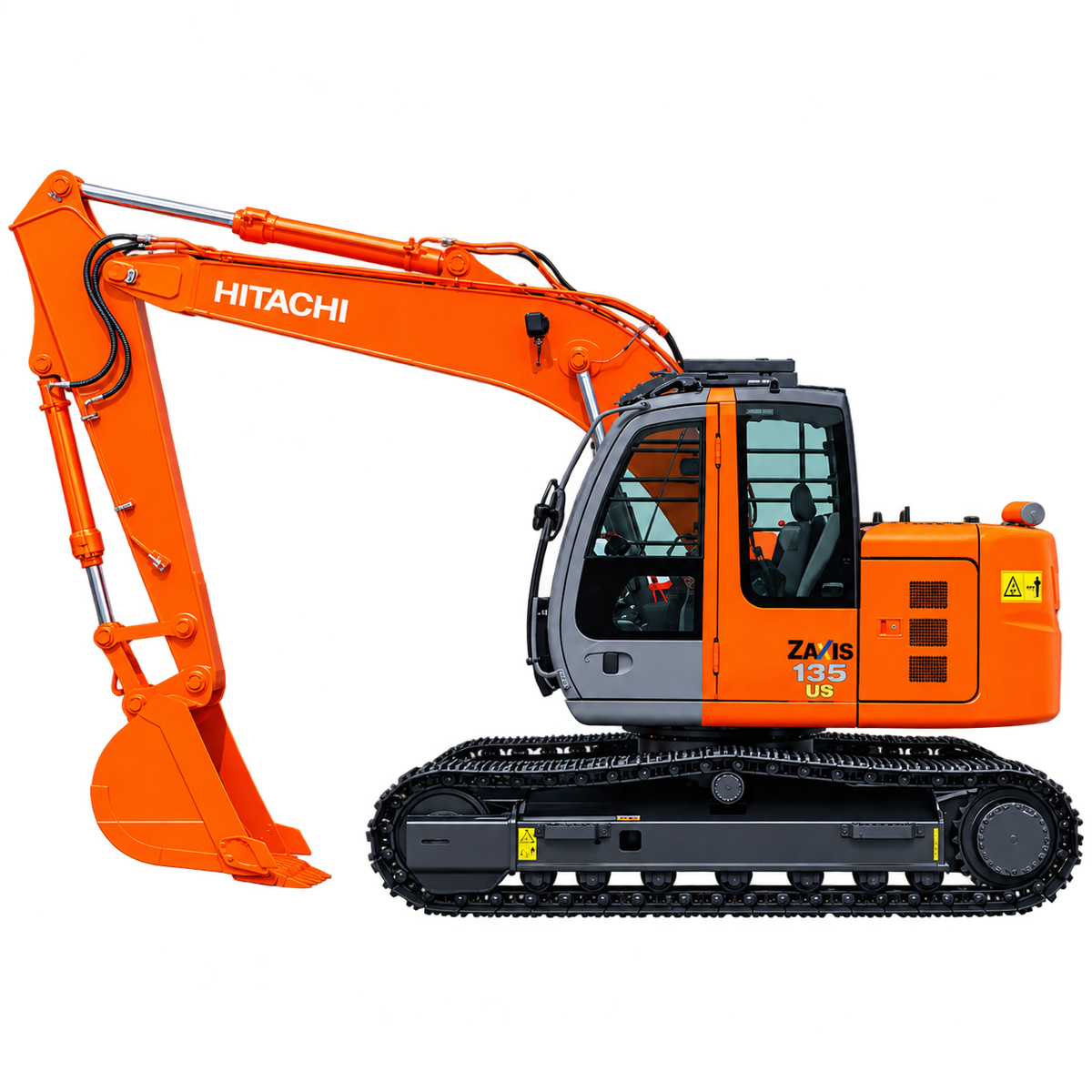

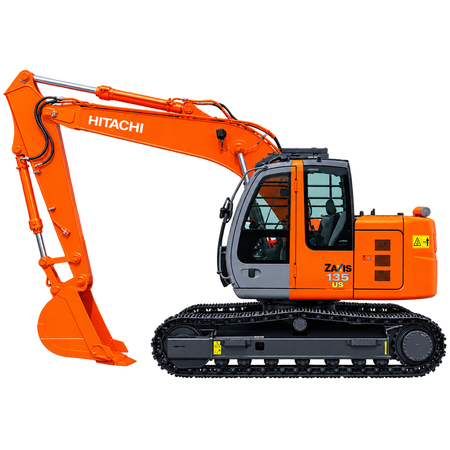

The Hitachi ZX135US combines excavator performance with a short-tail-swing design for work in confined spaces. It is suited to excavation, trenching, utility installation, grading, and site preparation where maneuverability matters. This guide covers attachment options for the ZX135US, including breakers, hammers, buckets, couplers, thumbs, compactors, grapples, rippers, and other job-matched tools.
Before selecting an attachment for the ZX135US, verify carrier weight, hydraulic flow and pressure, auxiliary circuit layout, pin geometry, coupler or quick-hitch style, bracket fit, and the material you intend to break, dig, or move. BHE Attachments can walk through these checks before you request a quote or install anything on the machine.
Hitachi ZX135US Attachment Matches
Browse the attachment categories below for the ZX135US. Final fit must be confirmed against your machine's exact hydraulic configuration, mounting dimensions, coupler style, and jobsite demands.
Hydraulic Breakers for Concrete, Rock & Asphalt
Breakers and hammers are a natural fit for the ZX135US when you need to fracture concrete, break rock, remove asphalt, or clear obstructions in trenches and demolition zones.
For the Hitachi ZX135US, the Montabert 501NG and XL1000 are recommended for fitment review. Final breaker compatibility can depend on machine weight, hydraulic flow, pressure, mounting configuration, and application.
Digging, Trenching, Grading & Cleanup Buckets
Match the bucket to the task. General-purpose digging buckets handle bulk excavation and trenching, while grading and cleanup buckets are ideal for ditching, slope shaping, backfill finishing, and surface cleanup.
Fitment checks should cover pin diameter and spread, stick width, coupler or quick-hitch type, bucket width and capacity, tooth profile, edge configuration, and ground conditions.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples extend what the ZX135US can handle on site-rapid attachment swaps, debris and brush cleanup, pipe placement, demolition sorting, and irregular load handling.
Review stick geometry, thumb reach, coupler type, hydraulic line routing, bracket design, and the machine's lift and stability ratings before selecting these tools.
Plate Compactors for Trench & Backfill Work
Plate compactors are worth reviewing for the ZX135US when the job calls for compacting trench backfill, utility bedding, road repair bases, or general site-prep surfaces.
Key fitment items include attachment weight, hydraulic flow and pressure range, mounting bracket, hose routing, and the compaction footprint needed for the work area.
Rippers & Specialty Excavator Tools
When the ZX135US faces compacted soil, frost, hardpan, or rocky subgrade, a ripper or specialty ground-engagement tool can loosen material before the bucket takes over.
Selection depends on material hardness, required breakout force, carrier class, mounting interface, and whether the tool is used for pre-excavation ripping or demolition cleanup.
Hitachi ZX135US Jobsite Applications
Match the attachment to the task. The notes below link common ZX135US work scenarios to the tools best suited for each.
Concrete & Rock Breaking
Deploy a correctly sized hydraulic breaker or hammer when the ZX135US is tasked with concrete demolition, rock fracturing, asphalt removal, trench obstruction clearing, or teardown prep.
Excavation & Trenching
Fit digging, trenching, or rock buckets for utility trenching, drainage lines, foundation footings, road subgrade work, and general earthmoving.
Grading & Cleanup
Grading, cleanup, and ditching buckets give the ZX135US the edge for finish contouring, slope dressing, ditch maintenance, loose material cleanup, and surface finishing.
Material Handling
Thumbs, grapples, and coupler-based tools let the ZX135US grab debris, brush, pipe sections, demolition fragments, and odd-shaped loads that a bucket alone cannot secure.
Compaction
A plate compactor adds value when the ZX135US is backfilling trenches, repairing utility cuts, restoring road bases, or preparing pads that require controlled density.
Hard Ground Preparation
A ripper or specialty ground tool breaks up compacted soil, frost layers, hardpan, or rocky subgrade so the bucket can follow through efficiently.
Attachment Fitment Factors
Pairing the right tool with the ZX135US means checking both machine-side specs and job-side demands. The points below help avoid mismatches that waste time and money.
Machine & Mounting Requirements
- Confirm the ZX135US operating weight of approximately 13,200 kg and its size class.
- Measure pin diameter, pin spread, stick width, and coupler or quick-hitch type.
- Align the attachment bracket with the ZX135US's mounting interface.
- Check attachment weight against the machine's lift capacity and stability envelope.
- For buckets, verify width, capacity, tooth style, edge type, and duty rating.
Hydraulic & Application Requirements
- Confirm hydraulic flow and pressure for powered attachments.
- Verify auxiliary circuit layout, control mapping, and hose routing.
- Choose breaker tool profiles-moil, chisel, blunt, or specialty-based on material.
- Match the attachment to the target material: concrete, rock, asphalt, soil, brush, or debris.
- Factor in duty cycle, production targets, operator skill, and site conditions before finalizing.
Hitachi ZX135US Attachment Overview
Use this table as a quick reference to connect each attachment category to its primary purpose on the ZX135US.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Hitachi ZX135US | Hydraulic Breakers & Hammers | Fracturing concrete, rock, asphalt, and other hard materials. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Hitachi ZX135US | Excavator Buckets | Earthmoving, trenching, grading, ditching, cleanup, and load handling. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, site development. |
| Hitachi ZX135US | Couplers, Thumbs & Grapples | Swapping attachments and handling loose, bulky, or irregular loads. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush removal, pipe placement, demolition cleanup. |
| Hitachi ZX135US | Plate Compactors | Densifying trench backfill, soil, and utility repair zones. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Hitachi ZX135US | Rippers & Specialty Tools | Loosening compacted or hard ground before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
The Hitachi ZX135US has a published operating weight of approximately 13,200 kg (29,101 lb). Final attachment compatibility varies by machine configuration, coupler, pin dimensions, hydraulic setup, and job application. Always confirm fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Hitachi ZX135US
BHE Attachments can compare breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the ZX135US. The ideal attachment hinges on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground.
To narrow the field, share the serial number if you have it, current coupler or quick-hitch setup, hydraulic flow and pressure readings, pin dimensions, and a brief description of the work.
