Geith Excavator Mechanical Grapple
The Geith Excavator Mechanical Grapple is built for demolition, land clearing and scrap handling. This heavy-duty attachment lets operators securely grab, lift and manipulate a wide range of materials, from loose debris to large stone boulders. Available in four models sized for excavators from 18 to 41 tons, every Geith Mechanical Grapple can be fitted for direct mount or with a Geith Quick Coupler, and ships with a wear package included as standard.
Powerful Grabbing, Lifting and Sorting for Demolition and Scrap Work
Built around a rugged boxed tine design, the Geith Mechanical Grapple is engineered to grip and control irregular, hard-to-handle material that a standard bucket can't manage. Whether you're clearing demolition debris, sorting scrap or moving large stone boulders, the reinforced jaw design and standard wear package are built to hold up to repeated heavy-duty use.
Key Features
- Boxed tines design for enhanced durability
- Optimizes productivity and reduces downtime
- Wear package included as standard
- Designed for direct mount or with a Geith Quick Coupler
- Securely grabs, lifts and manipulates debris, scrap and large stone boulders
- Four models available for excavators from 18 to 41 tons
Built for Daily Productivity
Sorting and moving debris, scrap and boulders by hand is slow and dangerous. The Geith Mechanical Grapple lets the operator grip and control these loads directly from the cab, speeding up demolition, land clearing and scrap handling work while keeping the crew clear of the load.
Common Applications
The Geith Mechanical Grapple is built for jobs where a standard bucket can't securely grip, sort or control the material being moved.
Demolition & Debris Handling
Grab and clear demolition debris quickly and securely without exposing ground crews to the load.
Land Clearing
Grip and remove brush, stumps and cleared material during site preparation work.
Scrap Metal Handling
Sort, lift and load scrap metal efficiently in yards and recycling operations.
Stone & Boulder Handling

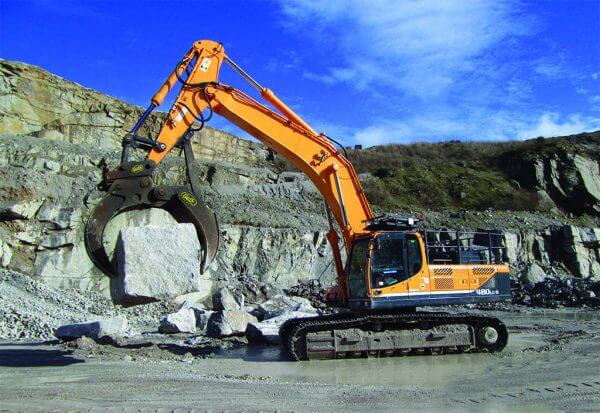

Grip and move large stone boulders securely on quarry and excavation sites.
Site Cleanup
Clear mixed debris and job site waste faster than manual handling allows.
Recycling & Material Sorting
Separate and handle mixed material efficiently at recycling and salvage yards.
Available Geith Mechanical Grapple Models
All four Geith Mechanical Grapple models share the same boxed tine design and standard wear package, sized to match your excavator's weight class.
HDG110
The smallest model in the range, built for excavators from 18 to 23 tons. A solid choice for lighter demolition, land clearing and material handling tasks.
- Excavator weight class: 18–23 tons
- Boxed tines design with standard wear package
- Direct mount or Geith Quick Coupler compatible
HDG120
A mid-size grapple for excavators from 23 to 27 tons, offering a larger jaw opening for handling bigger debris and scrap loads.
- Excavator weight class: 23–27 tons
- Boxed tines design with standard wear package
- Direct mount or Geith Quick Coupler compatible
HDG140
A heavy-duty model built for excavators from 30 to 36 tons, suited to larger demolition, land clearing and stone handling jobs.
- Excavator weight class: 30–36 tons
- Boxed tines design with standard wear package
- Direct mount or Geith Quick Coupler compatible
HDG160
The largest model in the range, built for excavators from 36 to 41 tons and the biggest demolition and scrap handling jobs.
- Excavator weight class: 36–41 tons
- Boxed tines design with standard wear package
- Direct mount or Geith Quick Coupler compatible
Geith Mechanical Grapple Model Comparison
Compare full technical specifications across the Geith Mechanical Grapple range to find the right fit for your excavator.
HDG110 – 18–23 Ton
- Weight: 1,249 kg (2,754 lb)
- Full Open: 2,413 mm (95.0")
- Complete Close: 230 mm (9.1")
- Height Closed: 1,549 mm (61.0")
- Width, Upper Moveable Jaw: 762 mm (30.0")
- Width, Lower Fixed Jaw: 1,118 mm (44.0")
HDG120 – 23–27 Ton
- Weight: 1,619 kg (3,569 lb)
- Full Open: 2,870 mm (113.0")
- Complete Close: 260 mm (10.2")
- Height Closed: 1,702 mm (67.0")
- Width, Upper Moveable Jaw: 762 mm (30.0")
- Width, Lower Fixed Jaw: 1,118 mm (44.0")
HDG140 – 30–36 Ton
- Weight: 2,268 kg (5,000 lb)
- Full Open: 2,946 mm (116.0")
- Complete Close: 295 mm (11.6")
- Height Closed: 1,829 mm (72.0")
- Width, Upper Moveable Jaw: 889 mm (35.0")
- Width, Lower Fixed Jaw: 1,270 mm (50.0")
HDG160 – 36–41 Ton
- Weight: 2,778 kg (6,124 lb)
- Full Open: 3,607 mm (142.0")
- Complete Close: 330 mm (13.0")
- Height Closed: 2,134 mm (84.0")
- Width, Upper Moveable Jaw: 991 mm (39.0")
- Width, Lower Fixed Jaw: 1,397 mm (55.0")
Boxed Tines Design
Every Geith Mechanical Grapple uses a boxed tine design engineered to enhance durability under repeated heavy-duty use. This reinforced construction helps optimize productivity and reduce downtime, so your grapple stays on the job instead of in the shop.
Wear Package Included as Standard
Each Geith Mechanical Grapple ships with a wear package included as standard, protecting high-contact areas from the abrasion of debris, scrap and stone handling and extending the working life of the attachment.
Built for Everyday Excavator Operations
Every Geith Mechanical Grapple is designed around the same core principles: a durable boxed tine build, standard wear protection and flexible mounting to fit your machine.
Durable Boxed Tines
Reinforced boxed tine construction helps the jaws withstand repeated gripping of debris, scrap and stone.
Standard Wear Package
Wear protection is included on every unit, reducing maintenance needs and extending service life.
Flexible Mounting
Available for direct mount or with a Geith Quick Coupler, so it's easy to fit to your existing setup.
Need Help Choosing the Right Grapple?
Selecting the correct Geith Mechanical Grapple starts with matching it to your excavator's weight class and how it will be mounted. Whether you need a direct-mount unit or one fitted with a Geith Quick Coupler, the BHE Attachments team can help you find the right model for your machine.
We'll verify compatibility with your excavator specifications to help ensure a secure fit and reliable performance.
Information That Helps Us Verify Compatibility
Providing your excavator and application details allows our team to recommend the correct Geith Mechanical Grapple model for your equipment.
- Excavator make, model and weight class
- Preferred mounting style (direct mount or Geith Quick Coupler)
- Primary material handled (debris, scrap, stone, brush)
- Primary application (demolition, land clearing, scrap handling)
Why Choose BHE Attachments?
BHE Attachments supplies professional excavator attachments backed by experienced product specialists and responsive customer support. We help contractors, demolition crews and scrap operations select dependable attachment solutions that improve efficiency, safety and productivity on every jobsite.
Expert Compatibility Assistance
Our team verifies excavator and mounting specifications to help ensure your Geith Mechanical Grapple fits correctly and performs reliably.
Proven Geith Engineering
Boxed tine construction and a standard wear package make Geith Mechanical Grapples a dependable choice for demanding demolition and scrap work.
Responsive Customer Service
From product selection and compatibility verification to quotations and after-sale support, BHE Attachments is committed to dependable service throughout your purchase.
Ready to Handle Tougher Material?
Add a Geith Mechanical Grapple to your excavator for secure, powerful handling of debris, scrap and stone. Contact BHE Attachments today for pricing, availability and help selecting the right model for your machine.
