Doosan DX300 LC-5
Couldn't load pickup availability
Ask an expert
Doosan DX300 LC-5 Compatible Attachments

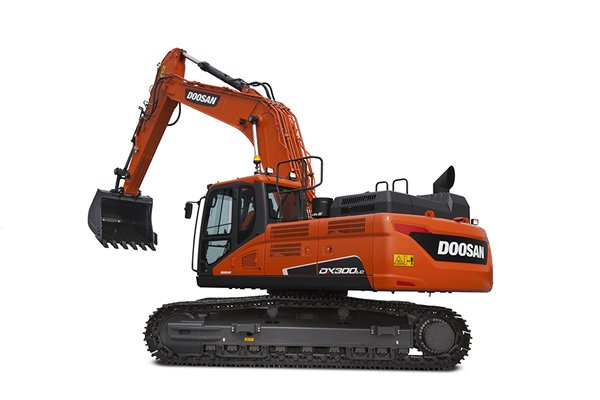

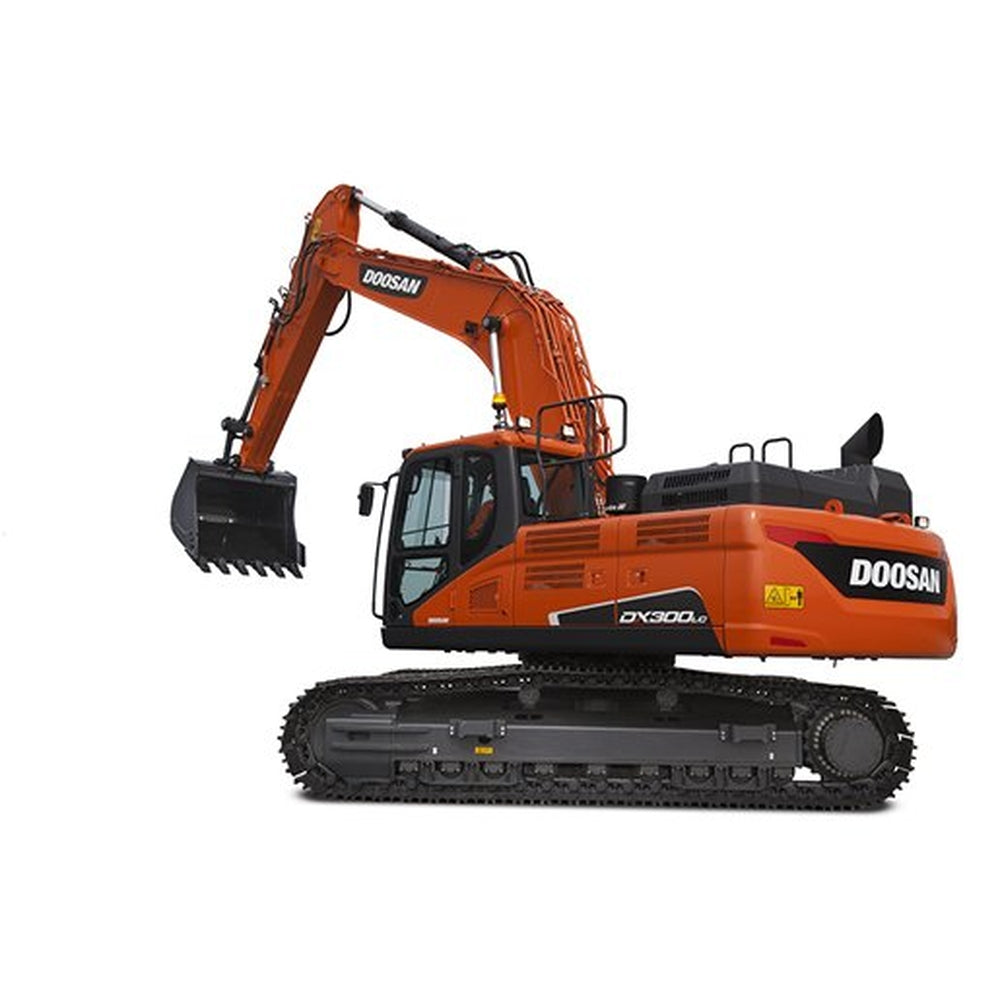

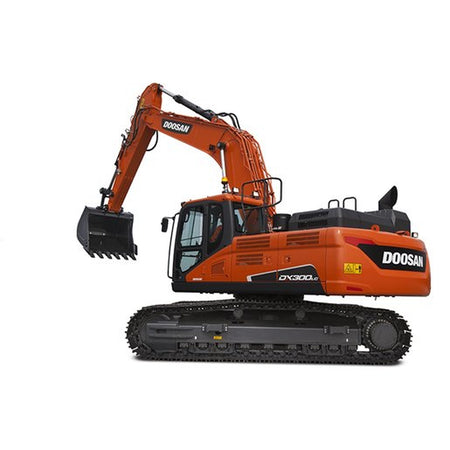

The Doosan DX300 LC-5 is a 30-ton class crawler excavator built for heavy-duty earthmoving, quarry work, mining support, and large-scale infrastructure projects. Powered by the Doosan DL08P engine delivering 202 kW (271 HP), this machine combines Stage IV emissions compliance with exceptional fuel efficiency and robust hydraulic performance for demanding job sites.
Attachment fitment for the Doosan DX300 LC-5 should be checked against the machine's carrier weight, hydraulic flow and pressure, pin dimensions, arm configuration, undercarriage setup, and the material being handled or broken. BHE Attachments can help review these details before quoting or installing an attachment.
Doosan DX300 LC-5 Attachment Matches
The attachment categories below are organized for the Doosan DX300 LC-5 carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Doosan DX300 LC-5 when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or large-scale demolition support.
Montabert breaker models previously identified for review with this carrier class include V45, V1800, V2500, and XL2600. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Doosan DX300 LC-5 should match the work being performed. Digging buckets are commonly used for excavation and trenching in heavy earthmoving and quarry applications, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading on large job sites.
Bucket fitment should be checked by pin diameter, pin spread, arm width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The DX300 LC-5 offers multiple arm lengths (2.5 m, 2.85 m, 3.1 m, and 3.75 m) with a maximum bucket capacity of 1.75 m³ for versatile digging configurations. General Purpose, Heavy Duty, Rock, and X-treme Mining bucket options are available.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Doosan DX300 LC-5's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on heavy construction and quarry job sites.
These tools should be reviewed for arm geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The DX300 LC-5 features a robust X-chassis undercarriage with standard and narrow track options (3,200 mm / 3,000 mm) for enhanced stability during material handling.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Doosan DX300 LC-5 when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation on large-scale projects.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The DX300 LC-5 delivers dual variable displacement axial piston pumps with a maximum flow of 2 x 248 L/min for smooth powered attachment operation.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Doosan DX300 LC-5 when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The DX300 LC-5 delivers 35 tonnes maximum traction force and 12,137 kgf·m swing torque for tough ground conditions.
Doosan DX300 LC-5 Jobsite Applications
These application notes help connect the Doosan DX300 LC-5 to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Doosan DX300 LC-5 is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or large-scale demolition prep.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, foundations, roadwork, quarry excavation, and general heavy earthmoving.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup on large construction sites.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Doosan DX300 LC-5 needs to handle debris, brush, pipe, demolition material, or irregular objects on heavy construction and quarry job sites.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed on large-scale projects.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation in quarry or heavy construction settings.
Attachment Fitment Factors
The Doosan DX300 LC-5 should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (30,900 kg standard with 600 mm shoes) and excavator size class.
- Check pin diameter, pin spread, arm width, and coupler configuration.
- Match the attachment bracket to the Doosan DX300 LC-5 mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
- Verify arm length configuration (2.5 m, 2.85 m, 3.1 m, or 3.75 m) and undercarriage width (standard 3,200 mm or narrow 3,000 mm).
Hydraulic & Application Requirements
- Confirm hydraulic flow (2 x 248 L/min main pump) and pressure (350 kgf/cm² implement, 295 kgf/cm² swing) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing (breaker piping and proportional control available).
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Doosan DX300 LC-5 Attachment Overview
Use this table as a quick reference for matching common Doosan DX300 LC-5 attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Doosan DX300 LC-5 | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material in heavy-duty applications. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking, quarry work. |
| Doosan DX300 LC-5 | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, site development, quarry loading. |
| Doosan DX300 LC-5 | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Arm geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup, quarry sorting. |
| Doosan DX300 LC-5 | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Doosan DX300 LC-5 | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping, quarry stripping. |
Final compatibility can vary by Doosan DX300 LC-5 configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Doosan DX300 LC-5
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Doosan DX300 LC-5. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground in heavy-duty environments.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, arm length, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Doosan DX300 LC-5 specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
Ready to quote attachments for your Doosan DX300 LC-5?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the Doosan DX300 LC-5 carrier class, hydraulic setup, mounting requirements, and work conditions.
