Doosan DX225LC Compatible Attachments

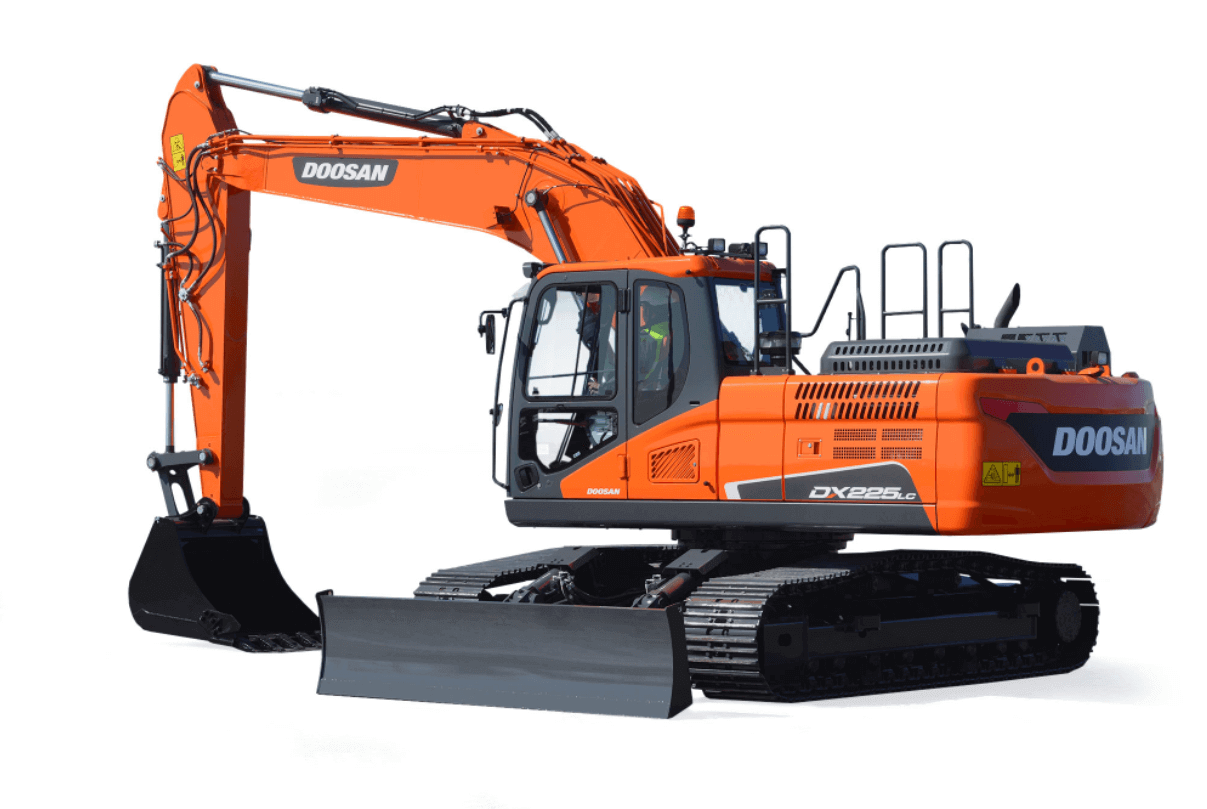

The Doosan DX225LC is a hydraulic excavator in the 22.4-ton class, engineered for high productivity and fuel efficiency on demanding jobsites. Powered by the Doosan DL06 "Common Rail" engine delivering 148 HP (110 kW) at 1,900 rpm, this machine combines electronic power optimization with robust structural design for excavation, loading, trenching, roadwork, and demolition applications. Attachment fitment for the Doosan DX225LC should be checked against the machine's carrier weight, hydraulic flow, auxiliary circuit setup, pin dimensions, boom and arm configuration, and the material being handled. BHE Attachments can help review these details before quoting or installing an attachment.
Doosan DX225LC Attachment Matches
The attachment categories below are organized for the Doosan DX225LC carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Doosan DX225LC when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support in heavy-duty commercial and industrial spaces.
Montabert breaker models previously identified for review with this carrier class include the M900, V32, XL1700, XL1900, and V1800. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Doosan DX225LC should match the work being performed. Digging buckets are commonly used for excavation and trenching in large-scale utility and construction projects, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The DX225LC offers standard bucket capacities from 0.81 to 1.17 m³ (1.06 to 1.53 yd³) with multiple width and tooth configurations.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Doosan DX225LC's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on large job sites where versatility is essential.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The DX225LC features joystick levers with additional electrical buttons for controlling auxiliary equipment such as grabs, crushers, and grippers.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Doosan DX225LC when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation in medium to large work zones.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The DX225LC delivers up to 2 x 206.5 L/min main pump flow with electronic flow control for smooth powered attachment operation.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Doosan DX225LC when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The DX225LC delivers up to 15,200 kgf (149.2 kN / 33,510 lbf) ISO bucket digging force for tough ground conditions.
Doosan DX225LC Jobsite Applications
These application notes help connect the Doosan DX225LC to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Doosan DX225LC is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or demolition prep in heavy-duty environments.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, foundations, roadwork, and general excavation. The standard 5,700 mm boom with 2,900 mm arm provides a max digging depth of 6,620 mm (21'9").
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup on large job sites.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Doosan DX225LC needs to handle debris, brush, pipe, demolition material, or irregular objects on commercial and industrial sites.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed in medium to large work areas.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation in construction or quarry settings.
Attachment Fitment Factors
The Doosan DX225LC should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (21,500 kg / 47,399 lb with 600 mm shoes to 22,400 kg / 49,383 lb with 900 mm shoes) and excavator size class.
- Check pin diameter, pin spread, stick width, and coupler configuration.
- Match the attachment bracket to the Doosan DX225LC mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
- Verify boom and arm length options for reach and digging depth requirements.
Hydraulic & Application Requirements
- Confirm hydraulic flow (up to 2 x 206.5 L/min main pump) and pressure (up to 343 bar / 4,970 psi power mode) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing (button-controlled flow standard).
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Doosan DX225LC Attachment Overview
Use this table as a quick reference for matching common Doosan DX225LC attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Doosan DX225LC | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material in heavy-duty environments. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Doosan DX225LC | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, site development, roadwork. |
| Doosan DX225LC | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| Doosan DX225LC | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Doosan DX225LC | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by Doosan DX225LC configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Doosan DX225LC
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Doosan DX225LC. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground in heavy-duty environments.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, boom and arm length, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Doosan DX225LC specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
Ready to quote attachments for your Doosan DX225LC?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the Doosan DX225LC carrier class, hydraulic setup, mounting requirements, and work conditions.
