Caterpillar 336F L
Couldn't load pickup availability
Ask an expert
Caterpillar 336F L Compatible Attachments

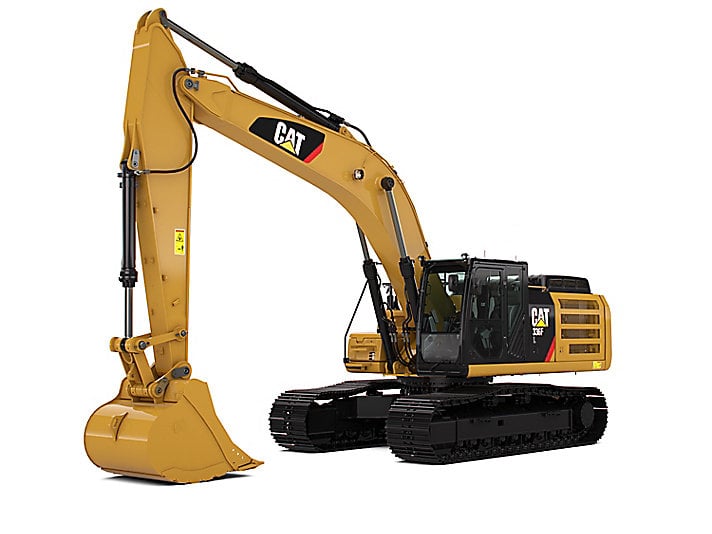

The Caterpillar 336F L is a 36-ton class hydraulic excavator engineered for high production, low owning and operating costs, and all-day reliability. Powered by the Cat C9.3 ACERT engine meeting Tier 4 Final / Stage IV standards, this machine is built for heavy excavation, quarry work, demolition, road building, and large-scale site preparation.
Attachment fitment for the Caterpillar 336F L should be checked against the machine's carrier weight, hydraulic flow and pressure, pin dimensions, boom and stick configuration, coupler style, and the material being handled. BHE Attachments can help review these details before quoting or installing an attachment.
Caterpillar 336F L Attachment Matches
The attachment categories below are organized for the Caterpillar 336F L carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Caterpillar 336F L when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, quarry work, or large-scale demolition support.
Montabert breaker models previously identified for review with this carrier class include the V45, V2500, XL2600, V55, and V3500. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Caterpillar 336F L should match the work being performed. Heavy-duty digging and quarry buckets are commonly used for large-scale excavation and trenching, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading on big jobsites.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The 336F L features an HD reach boom (6.50 m) and R3.2DB stick (3.2 m) with a 2.28 m3 GP bucket.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Caterpillar 336F L's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on large job sites. The Cat coupler allows swapping between attachments in seconds without leaving the cab.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The tool control option remembers pressures and flows for up to 20 tools to enhance uptime.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Caterpillar 336F L when the work involves trench compaction, utility installation, backfill compaction, road repair, or large-scale site preparation.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The 336F L delivers a main hydraulic flow of 570 L/min with a heavy lift pressure of 38,000 kPa.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Caterpillar 336F L when the machine is working in compacted soil, frost, hardpan, rocky material, quarry conditions, or site preparation where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The 336F L delivers a maximum drawbar pull of 294 kN and a swing torque of 109 kN·m for demanding ground conditions.
Caterpillar 336F L Jobsite Applications
These application notes help connect the Caterpillar 336F L to the attachment type most often used for each kind of work on heavy-duty and large-scale projects.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Caterpillar 336F L is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, quarry work, or large-scale demolition prep.
Excavation & Trenching
Use heavy-duty digging, trenching, or quarry buckets when the machine is being used for large utility installation, drainage work, foundations, roadwork, quarry loading, and general heavy excavation.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup on expansive job sites.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Caterpillar 336F L needs to handle debris, brush, pipe, demolition material, or irregular objects on large-scale projects.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or large site preparation where controlled compaction is needed.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, quarry material, or rocky ground needs to be loosened before excavation.
Attachment Fitment Factors
The Caterpillar 336F L should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (37,200 kg) and excavator size class.
- Check pin diameter, pin spread, stick width, and coupler configuration (Cat coupler for in-cab swaps).
- Match the attachment bracket to the Caterpillar 336F L mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
- Verify boom type (HD reach 6.50 m) and stick length (R3.2DB 3.2 m) for reach and clearance needs.
Hydraulic & Application Requirements
- Confirm hydraulic flow (570 L/min main, 279 L/min swing) and pressure (35,000 kPa normal, 38,000 kPa heavy lift) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing.
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Caterpillar 336F L Attachment Overview
Use this table as a quick reference for matching common Caterpillar 336F L attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Caterpillar 336F L | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material on heavy-duty projects. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, quarry work, road repair, trenching, concrete removal, rock breaking. |
| Caterpillar 336F L | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, quarry loading, site development. |
| Caterpillar 336F L | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup, quarry sorting. |
| Caterpillar 336F L | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Caterpillar 336F L | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, quarry rock, site prep, pre-excavation ripping. |
Final compatibility can vary by Caterpillar 336F L configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Caterpillar 336F L
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Caterpillar 336F L. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground on heavy-duty projects.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Caterpillar 336F L specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
Ready to quote attachments for your Caterpillar 336F L?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the Caterpillar 336F L carrier class, hydraulic setup, mounting requirements, and work conditions.
