Caterpillar 335F L CR
Couldn't load pickup availability
Ask an expert
Caterpillar 335F L CR Compatible Attachments

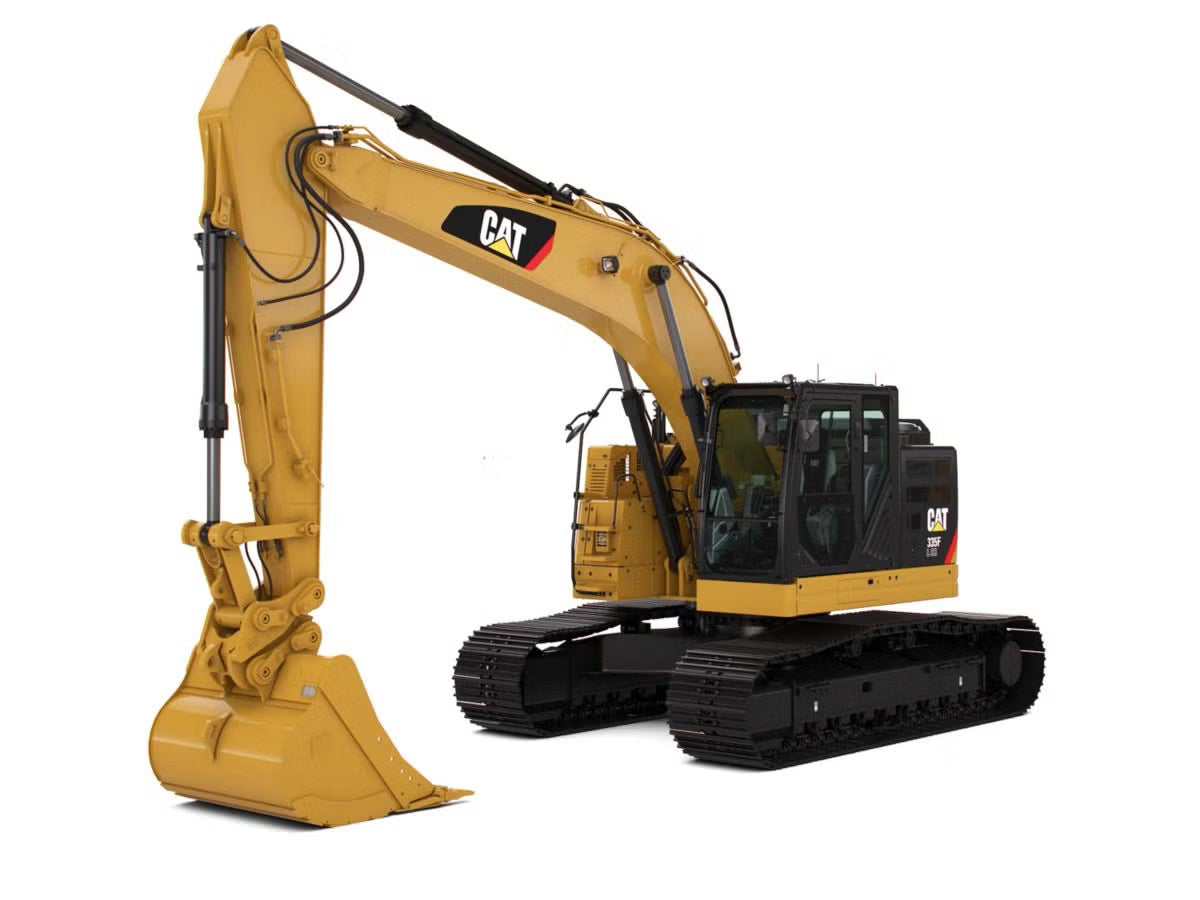

The Caterpillar 335F L CR is the largest compact radius hydraulic excavator available from any major manufacturer, engineered for up-close, space-restricted heavy-duty work. Powered by the fuel-efficient Cat C7.1 ACERT engine meeting EU Stage IV emissions, this machine delivers 203 hp while burning up to 16% less fuel than the model it replaces.
Attachment fitment for the Caterpillar 335F L CR should be verified against the carrier's operating weight range of 34,845 kg to 38,376 kg (76,820 lb to 84,610 lb), hydraulic flow of 493.2 L/min, auxiliary tool control system with programmable memory for up to 10 different tools, pin dimensions, coupler style, and the specific application requirements. BHE Attachments can help review these details before quoting or installing an attachment.
Caterpillar 335F L CR Attachment Matches
The attachment categories below are organized for the Caterpillar 335F L CR carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Demolition
Hydraulic breakers and hammers are a key attachment match for the Caterpillar 335F L CR when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition work in space-restricted areas. The standard tool control system gives you just the right amount of pressure for hammers and other powered tools.
Montabert breaker models previously identified for review with this carrier class include V45, V55, V2500, and XL2600. Final selection should be based on the carrier's hydraulic flow of 493.2 L/min, operating pressure up to 38,000 kPa in heavy lift mode, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Tilt Buckets
Bucket selection for the Caterpillar 335F L CR should match the work being performed. Heavy-duty digging buckets handle excavation and trenching with a 22 ft 11 in dig depth, while general duty and tilt buckets are ideal for utility work, finishing, slope work, and backfill shaping in confined spaces.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity up to 1.76 m3, tooth style, edge type, and material conditions. The CB2 bucket linkage supports versatile bucket options including GD, HD, and SD duty ratings.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples extend the Caterpillar 335F L CR's versatility for rapid attachment changes, debris handling, brush clearing, demolition cleanup, pipe handling, and sorting material on job sites. A coupler lets you swap between attachments in seconds without leaving the cab, and the monitor can memorize up to 10 different work tools.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting capacity and stability at full reach with its 7.7 mt counterweight.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Caterpillar 335F L CR when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation in confined areas. The CVP110 vibratory plate compactor is a native match for this carrier.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow 493.2 L/min, pressure range up to 35,000 kPa, mounting bracket, hose routing, and the compaction area required for the job.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Caterpillar 335F L CR when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool. Heavy lift mode increases max pressure to 38,000 kPa for improved controllability with demanding tools.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup in space-restricted areas.
Caterpillar 335F L CR Jobsite Applications
These application notes help connect the Caterpillar 335F L CR to the attachment type most often used for each kind of work in confined spaces.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker, such as the Montabert V45, V55, V2500, or XL2600, when the Caterpillar 335F L CR is tasked with concrete removal, rock breaking, asphalt removal, or demolition in space-restricted areas.
Excavation & Trenching
Use heavy-duty digging buckets when the machine is used for utility installation, drainage work, foundations, roadwork, and general excavation with its 22 ft 11 in maximum digging depth.
Grading & Cleanup
Use tilt buckets or grading buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup in confined utility and finishing work.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Caterpillar 335F L CR needs to handle demolition debris, brush, pipe, or irregular objects on job sites with its compact radius design.
Compaction
Use a plate compactor such as the CVP110 when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed in confined spaces.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation in space-restricted job sites.
Attachment Fitment Factors
The Caterpillar 335F L CR should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight range of 34,845 kg to 38,376 kg (76,820 lb to 84,610 lb) with standard equipment and operator.
- Check pin diameter, pin spread, stick width, and coupler configuration for Pin Grabber, Universal, or dedicated quick coupler setup.
- Match the attachment bracket to the Caterpillar 335F L CR mounting setup with 6.15 m reach boom and R3.2CB2 stick.
- Review attachment weight against machine lifting capacity and stability limits with 7.7 mt counterweight.
- For buckets, confirm width, capacity up to 1.76 m3, tooth style, edge type, and duty rating for material density up to 2,100 kg/m3.
Hydraulic & Application Requirements
- Confirm hydraulic flow of 493.2 L/min and pressure up to 38,000 kPa in heavy lift mode for powered attachments.
- Verify auxiliary tool control system setup with programmable memory for up to 10 different tools, controls, and hose routing.
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or demolition debris.
- Review duty cycle, production needs, operator use, and confined jobsite conditions before final selection.
Caterpillar 335F L CR Attachment Overview
Use this table as a quick reference for matching common Caterpillar 335F L CR attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Caterpillar 335F L CR | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material in confined spaces. | Hydraulic flow 493.2 L/min, pressure up to 38,000 kPa, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Caterpillar 335F L CR | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading with tilt bucket options. | Pin dimensions, coupler setup, bucket width, capacity up to 1.76 m3, tooth style, and edge type. | Excavation, utility work, grading, drainage, site development. |
| Caterpillar 335F L CR | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material in confined areas. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| Caterpillar 335F L CR | Plate Compactors | Compacting trench backfill, soil, and utility repair areas in confined spaces. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Caterpillar 335F L CR | Rippers & Specialty Tools | Loosening compacted or hard material before excavation in confined areas. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by Caterpillar 335F L CR configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Caterpillar 335F L CR
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Caterpillar 335F L CR. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground in confined spaces.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Caterpillar 335F L CR specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
Ready to quote attachments for your Caterpillar 335F L CR?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the Caterpillar 335F L CR carrier class, hydraulic setup, mounting requirements, and work conditions.
