Caterpillar 330F L Compatible Attachments

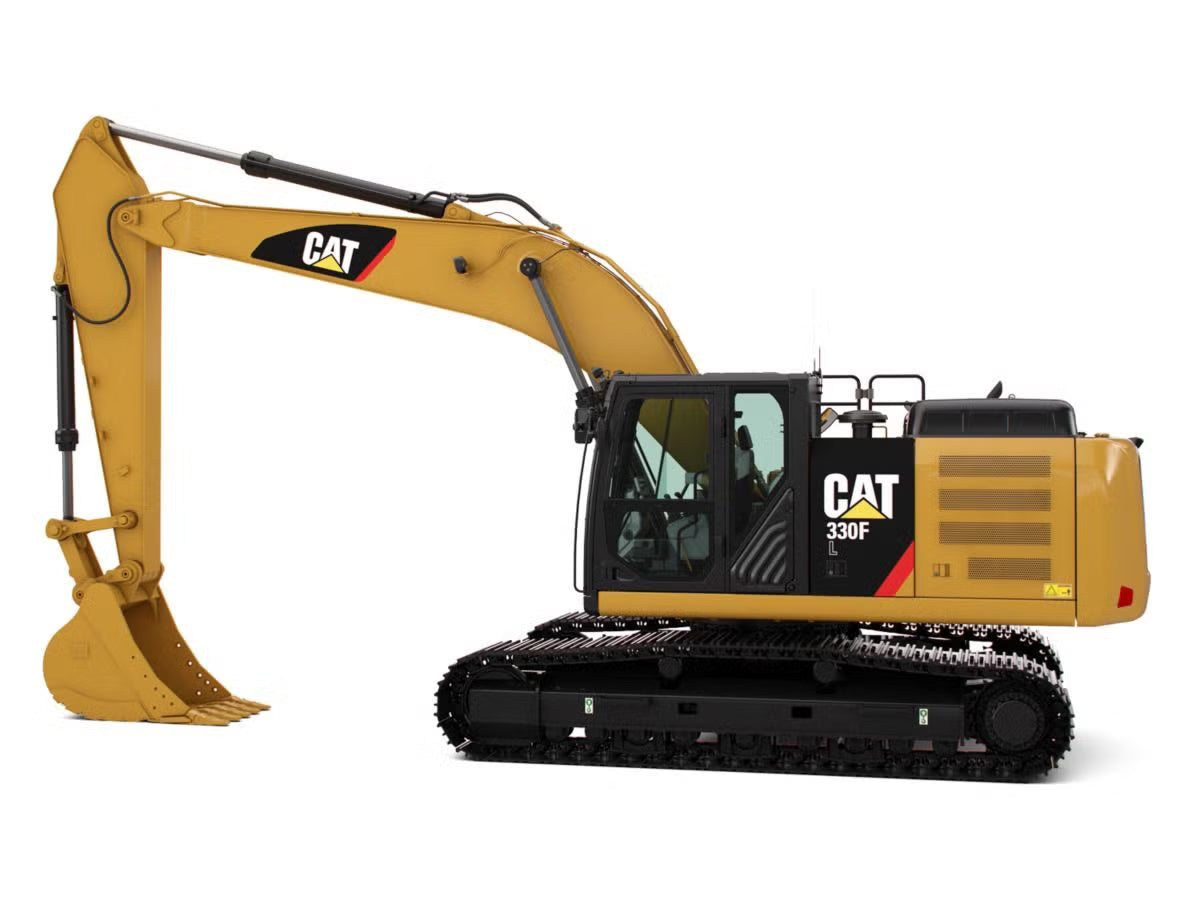

The Caterpillar 330F L is a 30-ton class hydraulic excavator designed for heavy-duty excavation, earthmoving, and civil construction work. Powered by the Cat C7.1 ACERT engine meeting Tier 4 Final / Stage IV emissions, this machine delivers 242 gross hp with integrated electronics and fuel-efficient operation across three selectable power modes.
Attachment fitment for the Caterpillar 330F L should be verified against the carrier's operating weight range of 29,209 kg to 30,335 kg (64,395 lb to 66,877 lb), hydraulic flow of 493 L/min, auxiliary tool control system, pin dimensions, coupler style, and the specific application requirements. BHE Attachments can help review these details before quoting or installing an attachment.
Caterpillar 330F L Attachment Matches
The attachment categories below are organized for the Caterpillar 330F L carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Caterpillar 330F L when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support. The auxiliary tool control system maximizes performance of hammers and other powered attachments.
Montabert breaker models previously identified for review with this carrier class include V32, V45, V1800, V2500, XL1900, and XL2600. Final selection should be based on the carrier's hydraulic flow of 493 L/min, operating pressure up to 38,000 kPa in heavy lift mode, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Caterpillar 330F L should match the work being performed. Heavy-duty digging buckets are commonly used for excavation and trenching with a 23 ft 9 in dig depth, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity up to 1.54 m3, tooth style, edge type, and material conditions. Common linkages between E and F Series support tool interchangeability.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Caterpillar 330F L's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on job sites. The machine's auxiliary tool control system supports seamless operation of these tools.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits with its 5.8 mt counterweight.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Caterpillar 330F L when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation. The auxiliary tool control system is designed to maximize compactor performance.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow 493 L/min, pressure range up to 35,000 kPa, mounting bracket, hose routing, and the compaction area required for the job.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Caterpillar 330F L when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. Heavy lift mode increases max pressure for improved controllability with demanding tools.
Caterpillar 330F L Jobsite Applications
These application notes help connect the Caterpillar 330F L to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker, such as the Montabert V32, V45, V1800, V2500, XL1900, or XL2600, when the Caterpillar 330F L is tasked with concrete removal, rock breaking, asphalt removal, or demolition support.
Excavation & Trenching
Use heavy-duty digging buckets when the machine is used for utility installation, drainage work, foundations, roadwork, and general excavation with its 23 ft 9 in maximum digging depth.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Caterpillar 330F L needs to handle debris, brush, pipe, or irregular objects on job sites.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation.
Attachment Fitment Factors
The Caterpillar 330F L should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight range of 29,209 kg to 30,335 kg (64,395 lb to 66,877 lb) with standard equipment and operator.
- Check pin diameter, pin spread, stick width, and coupler configuration for R2.65CB2 or R3.2CB2 stick options.
- Match the attachment bracket to the Caterpillar 330F L mounting setup with 6.15 m reach boom.
- Review attachment weight against machine lifting capacity and stability limits with 5.8 mt counterweight.
- For buckets, confirm width, capacity up to 1.54 m3, tooth style, edge type, and application rating.
Hydraulic & Application Requirements
- Confirm hydraulic flow of 493 L/min and pressure up to 38,000 kPa in heavy lift mode for powered attachments.
- Verify auxiliary tool control system setup, controls, and hose routing for hammers, shears, compactors, and multi-processors.
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Caterpillar 330F L Attachment Overview
Use this table as a quick reference for matching common Caterpillar 330F L attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Caterpillar 330F L | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material. | Hydraulic flow 493 L/min, pressure up to 38,000 kPa, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Caterpillar 330F L | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity up to 1.54 m3, tooth style, and edge type. | Excavation, utility work, grading, drainage, site development. |
| Caterpillar 330F L | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| Caterpillar 330F L | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Caterpillar 330F L | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by Caterpillar 330F L configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Caterpillar 330F L
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Caterpillar 330F L. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Caterpillar 330F L specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
Ready to quote attachments for your Caterpillar 330F L?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the Caterpillar 330F L carrier class, hydraulic setup, mounting requirements, and work conditions.
