Caterpillar 330D L Compatible Attachments

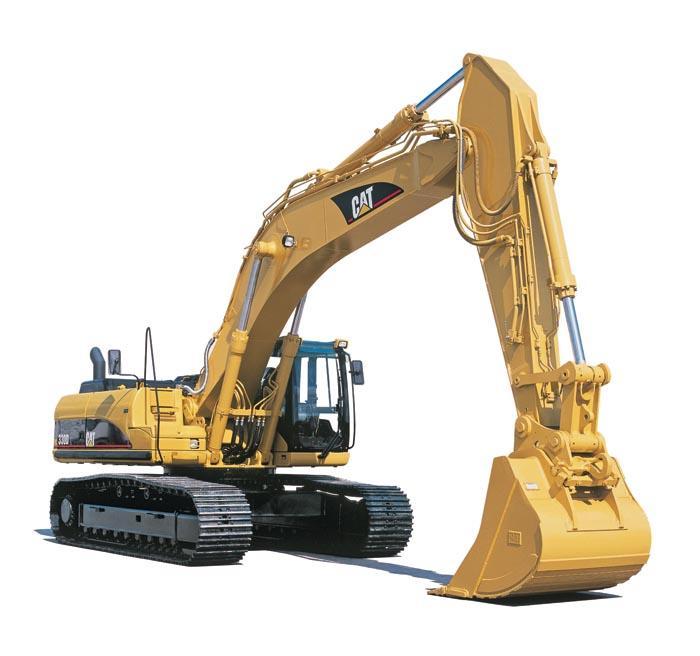

The Caterpillar 330D L is a 30-ton class hydraulic excavator engineered for heavy-duty excavation, earthmoving, quarry applications, and large-scale demolition. Featuring both reach and mass boom configurations, this machine delivers robust digging forces and versatile attachment compatibility for demanding job sites.
Attachment fitment for the Caterpillar 330D L should be verified against the carrier's base operating weight of approximately 29,117 kg (64,192 lb), hydraulic flow capacity, auxiliary circuit configuration, pin dimensions, coupler style (including Pin Grabber and dedicated quick coupler options), and the specific material conditions being worked. BHE Attachments can help review these details before quoting or installing an attachment.
Caterpillar 330D L Attachment Matches
The attachment categories below are organized for the Caterpillar 330D L carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Heavy Concrete, Rock & Quarry Work
Hydraulic breakers and hammers are a primary attachment match for the Caterpillar 330D L when the job requires concrete breaking, rock breaking, quarry work, asphalt removal, trenching through hard material, or demolition support. The machine supports H130s, H140Ds, and H160Ds Cat hammers natively.

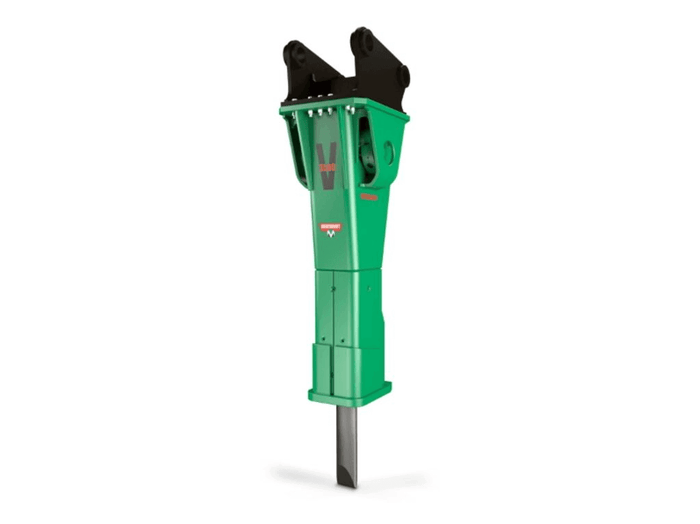

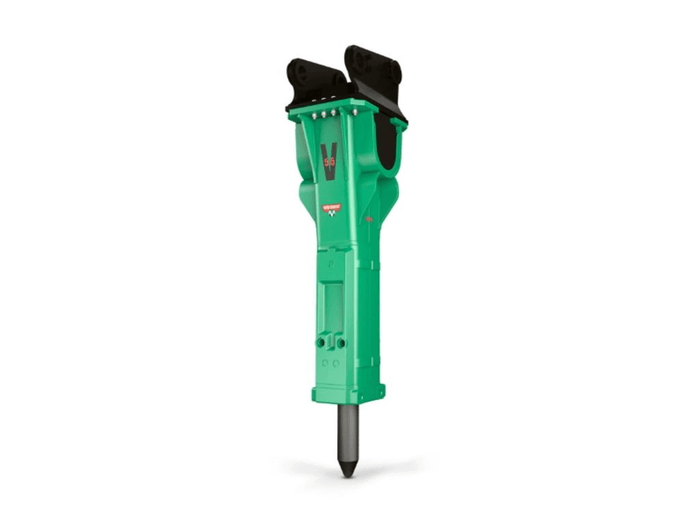

Montabert breaker models previously identified for review with this carrier class include V45, V55, V2500, V3500, and XL2600. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Heavy-Duty Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Caterpillar 330D L should match the scale and intensity of the work. Heavy-duty and heavy-duty power buckets handle mass excavation and deep trenching, while severe duty and extreme duty buckets are built for abrasive quarry conditions, rock loading, and high-impact applications.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration (Pin Grabber or pin-on), width, capacity up to 2.55 m3, tooth style, edge type, and material density up to 2,100 kg/m3. The DB and TB family linkages support a wide range of bucket sizes.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples extend the Caterpillar 330D L's versatility for rapid attachment changes, debris handling, brush clearing, demolition cleanup, pipe handling, and sorting bulk material on large job sites. The machine supports Pin Grabber quick couplers, dedicated quick couplers, and rotating sorting/demolition grapples.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting capacity and stability at full reach with its standard 6,020 kg counterweight.
Plate Compactors for Trench & Backfill Compaction
Plate compactors can be matched to the Caterpillar 330D L for compacting large trenches, utility backfill, road repair sub-base, and site preparation areas where high-production compaction is required. The CVP110 vibratory plate compactor is a native match for this carrier.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for heavy civil projects.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be fitted to the Caterpillar 330D L when working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool. The machine's heavy-duty power configuration delivers up to 238.3 kN bucket digging force for aggressive breakout.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before mass excavation or as part of demolition cleanup.
Caterpillar 330D L Jobsite Applications
These application notes help connect the Caterpillar 330D L to the attachment type most often used for each kind of heavy-duty work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker, such as the Montabert V45, V55, V2500, V3500, or XL2600, when the Caterpillar 330D L is assigned to heavy concrete removal, rock breaking, quarry work, asphalt removal, or large-scale demolition.
Excavation & Trenching
Use heavy-duty, severe duty, or extreme duty buckets when the machine is being used for mass excavation, deep utility installation with up to 8,185 mm dig depth, drainage work, foundations, roadwork, and quarry loading.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup on large civil projects.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Caterpillar 330D L needs to handle demolition debris, brush, large pipe, or irregular objects on construction and quarry sites.
Compaction
Use a plate compactor such as the CVP110 when the machine is supporting large trench backfill, utility repair, road construction, or site preparation where controlled compaction is needed.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before mass excavation or quarry development.
Attachment Fitment Factors
The Caterpillar 330D L should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier base operating weight of 29,117 kg (64,192 lb) with 800 mm shoes and standard counterweight.
- Check pin diameter, pin spread, stick width, and coupler configuration for Pin Grabber or dedicated quick coupler setup.
- Match the attachment bracket to the Caterpillar 330D L mounting setup with 6.5 m reach boom or 6.18 m mass boom.
- Review attachment weight against machine lifting capacity and stability limits with 6,020 kg standard counterweight.
- For buckets, confirm width, capacity up to 2.55 m3, tooth style, edge type, and duty rating for material density up to 2,100 kg/m3.
Hydraulic & Application Requirements
- Confirm hydraulic flow and pressure requirements for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing for hammers, shears, compactors, and multi-processors.
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools for quarry work.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or demolition debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Caterpillar 330D L Attachment Overview
Use this table as a quick reference for matching common Caterpillar 330D L attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Caterpillar 330D L | Hydraulic Breakers & Hammers | Breaking heavy concrete, rock, quarry material, asphalt, and hard demolition debris. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, quarry work, road repair, mass concrete removal, rock breaking. |
| Caterpillar 330D L | Excavator Buckets | Mass digging, deep trenching to 8,185 mm, grading, ditching, cleanup, and heavy material loading. | Pin dimensions, coupler setup, bucket width, capacity up to 2.55 m3, tooth style, and edge type. | Excavation, utility work, quarry loading, grading, drainage, site development. |
| Caterpillar 330D L | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material at scale. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush clearing, pipe handling, demolition cleanup, quarry sorting. |
| Caterpillar 330D L | Plate Compactors | Compacting large trench backfill, soil, and utility repair areas at high production. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Large trench compaction, road repair, mass backfill, utility installation, site prep. |
| Caterpillar 330D L | Rippers & Specialty Tools | Loosening compacted or hard material before mass excavation or quarry work. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, quarry prep, pre-excavation ripping, site development. |
Final compatibility can vary by Caterpillar 330D L configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Caterpillar 330D L
BHE Attachments can help compare hydraulic breakers, heavy-duty buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Caterpillar 330D L. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground in heavy civil or quarry environments.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, and a short description of the work being performed.
