Caterpillar 330C L
Couldn't load pickup availability
Ask an expert
Caterpillar 330C L Compatible Attachments

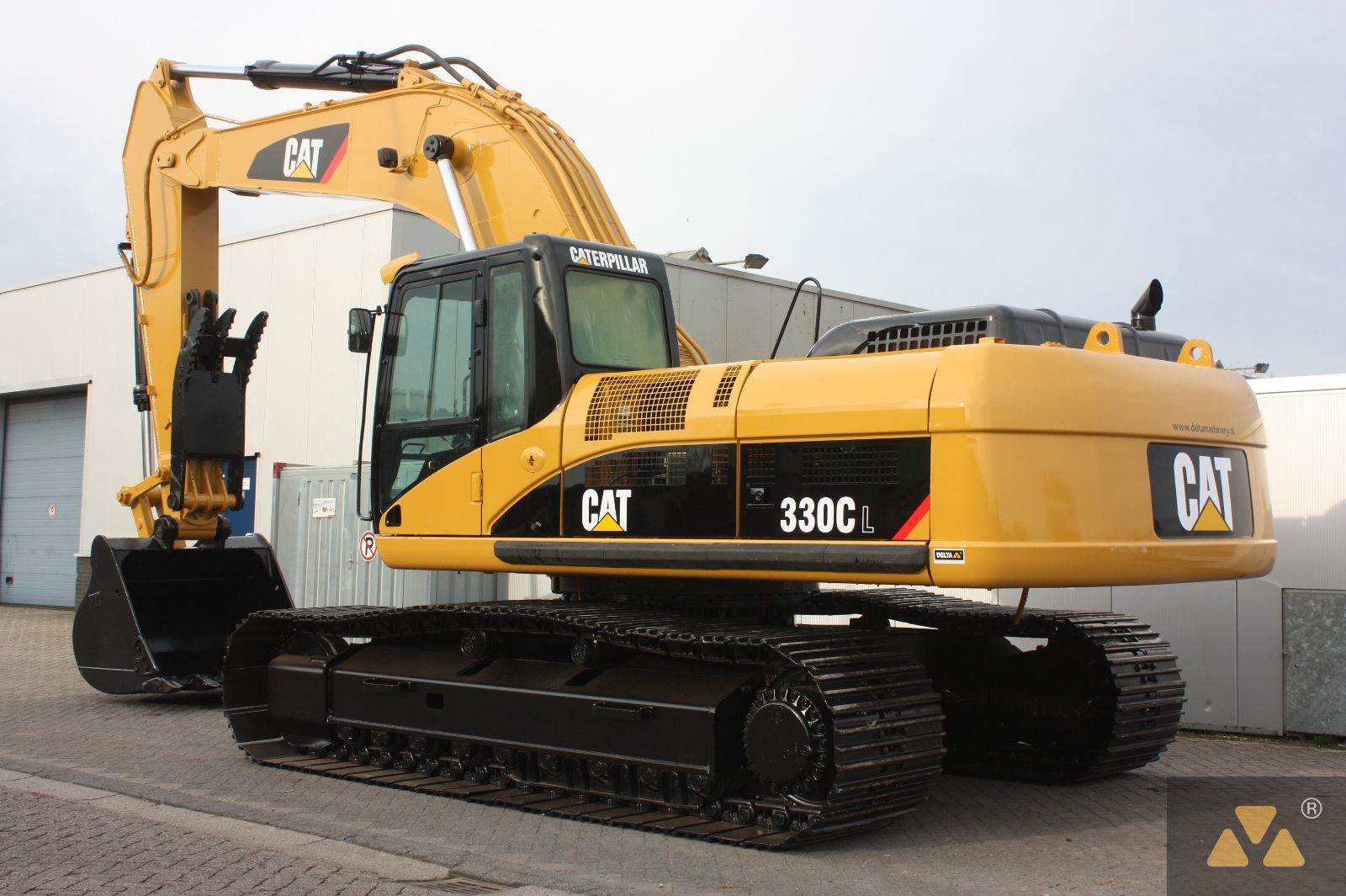

The Caterpillar 330C L is a 30-ton class hydraulic excavator built for demanding excavation, earthmoving, quarry applications, and heavy civil construction. Powered by the Cat C9 engine delivering 247 hp, this machine offers robust hydraulic output and proven reliability for tough job site conditions.
Attachment fitment for the Caterpillar 330C L should be verified against the carrier's operating weight of approximately 35,100 kg (77,400 lb), hydraulic flow capacity, auxiliary circuit configuration, pin dimensions, coupler style, and the material conditions being worked. BHE Attachments can help review these details before quoting or installing an attachment.
Caterpillar 330C L Attachment Matches
The attachment categories below are organized for the Caterpillar 330C L carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a primary attachment match for the Caterpillar 330C L when the job requires concrete breaking, rock breaking, quarry work, asphalt removal, trenching through hard material, or demolition support.
Montabert breaker models previously identified for review with this carrier class include V1800, V2500, V3500, XL2600, V45, and V55. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Caterpillar 330C L should match the scale and intensity of the work. Heavy-duty digging buckets handle excavation and trenching, while severe duty and extreme duty buckets are suited for abrasive quarry conditions, rock loading, and high-impact applications.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples extend the Caterpillar 330C L's versatility for rapid attachment changes, debris handling, brush clearing, demolition cleanup, pipe handling, and sorting bulk material on job sites.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting capacity and stability at full reach.
Plate Compactors for Trench & Backfill Work
Plate compactors can be matched to the Caterpillar 330C L for compacting trenches, utility backfill, road repair sub-base, and site preparation areas where controlled compaction is required.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow and pressure range, mounting bracket, hose routing, and the compaction area required for the job.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be fitted to the Caterpillar 330C L when working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before excavation or as part of demolition cleanup.
Caterpillar 330C L Jobsite Applications
These application notes help connect the Caterpillar 330C L to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker, such as the Montabert V1800, V2500, V3500, XL2600, V45, or V55, when the Caterpillar 330C L is assigned to concrete removal, rock breaking, quarry work, asphalt removal, or demolition support.
Excavation & Trenching
Use heavy-duty or severe duty buckets when the machine is being used for utility installation, drainage work, foundations, roadwork, and general excavation in medium-to-heavy conditions.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Caterpillar 330C L needs to handle demolition debris, brush, pipe, or irregular objects on job sites.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road construction, or site preparation where controlled compaction is needed.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation or site development.
Attachment Fitment Factors
The Caterpillar 330C L should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight of approximately 35,100 kg (77,400 lb) with standard equipment and operator.
- Check pin diameter, pin spread, stick width, and coupler configuration for Cat Pin Grabber or pin-on setup.
- Match the attachment bracket to the Caterpillar 330C L mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and duty rating for material density.
Hydraulic & Application Requirements
- Confirm hydraulic flow and pressure requirements for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing for hammer or compactor operation.
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or demolition debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Caterpillar 330C L Attachment Overview
Use this table as a quick reference for matching common Caterpillar 330C L attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Caterpillar 330C L | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material in medium-to-heavy applications. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, quarry work, road repair, concrete removal, rock breaking. |
| Caterpillar 330C L | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, site development. |
| Caterpillar 330C L | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush clearing, pipe handling, demolition cleanup. |
| Caterpillar 330C L | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Caterpillar 330C L | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by Caterpillar 330C L configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Caterpillar 330C L
BHE Attachments can help compare hydraulic breakers, heavy-duty buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Caterpillar 330C L. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Caterpillar 330C L specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
Ready to quote attachments for your Caterpillar 330C L?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the Caterpillar 330C L carrier class, hydraulic setup, mounting requirements, and work conditions.
