Caterpillar 328D LCR
Couldn't load pickup availability
Ask an expert
Caterpillar 328D LCR Compatible Attachments

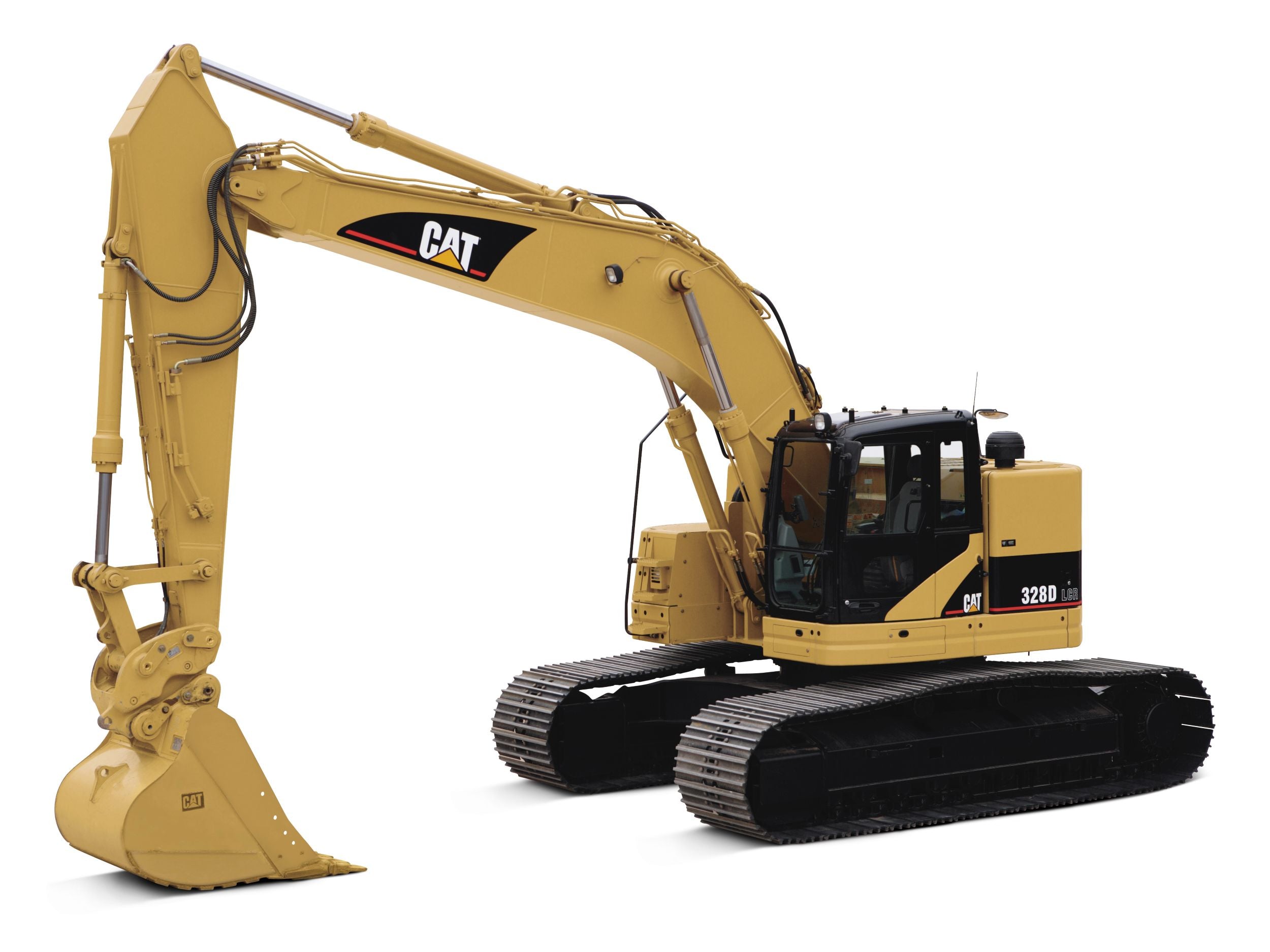

The Caterpillar 328D LCR is a 34-ton class hydraulic excavator engineered for heavy-duty earthmoving, quarry work, mining support, and large-scale infrastructure projects. Powered by the Cat C7 ACERT engine delivering 152 kW (204 hp), this machine combines Tier 3 emissions compliance with exceptional reliability and robust hydraulic performance for demanding job sites.
Attachment fitment for the Caterpillar 328D LCR should be checked against the machine's carrier weight, hydraulic flow and pressure, pin dimensions, stick configuration, undercarriage setup, and the material being handled or broken. BHE Attachments can help review these details before quoting or installing an attachment.
Caterpillar 328D LCR Attachment Matches
The attachment categories below are organized for the Caterpillar 328D LCR carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Caterpillar 328D LCR when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or large-scale demolition support.
Montabert breaker models previously identified for review with this carrier class include V45, V1800, V2500, and XL2600. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Caterpillar 328D LCR should match the work being performed. Digging buckets are commonly used for excavation and trenching in heavy earthmoving and quarry applications, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading on large job sites.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The 328D LCR offers reach boom configuration with R3.2CB2 and R2.65CB2 stick options, with a maximum bucket capacity of 1.2 m³ for versatile digging configurations. General Purpose, Heavy Duty, Heavy Duty Rock, and Heavy Duty Power bucket options are available.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Caterpillar 328D LCR's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on heavy construction and quarry job sites.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The 328D LCR features a robust long undercarriage with 850 mm shoes and a 7,720 kg counterweight for enhanced stability during material handling.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Caterpillar 328D LCR when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation on large-scale projects.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The 328D LCR delivers 235 L/min main pump flow with 35,000 kPa equipment pressure for smooth powered attachment operation.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Caterpillar 328D LCR when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The 328D LCR delivers 300 kN maximum drawbar pull and 82.2 kN·m swing torque for tough ground conditions.
Caterpillar 328D LCR Jobsite Applications
These application notes help connect the Caterpillar 328D LCR to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Caterpillar 328D LCR is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or large-scale demolition prep.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, foundations, roadwork, quarry excavation, and general heavy earthmoving.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup on large construction sites.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Caterpillar 328D LCR needs to handle debris, brush, pipe, demolition material, or irregular objects on heavy construction and quarry job sites.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed on large-scale projects.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation in quarry or heavy construction settings.
Attachment Fitment Factors
The Caterpillar 328D LCR should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (34,700 kg with standard configuration) and excavator size class.
- Check pin diameter, pin spread, stick width, and coupler configuration.
- Match the attachment bracket to the Caterpillar 328D LCR mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
- Verify boom and stick configuration (reach boom 6.15 m with R3.2CB2 or R2.65CB2 stick options).
Hydraulic & Application Requirements
- Confirm hydraulic flow (235 L/min main pump) and pressure (35,000 kPa equipment, 36,000 kPa heavy lift) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing (single-function, double-function, or tool control system available).
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Caterpillar 328D LCR Attachment Overview
Use this table as a quick reference for matching common Caterpillar 328D LCR attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Caterpillar 328D LCR | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material in heavy-duty applications. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking, quarry work. |
| Caterpillar 328D LCR | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, site development, quarry loading. |
| Caterpillar 328D LCR | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup, quarry sorting. |
| Caterpillar 328D LCR | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Caterpillar 328D LCR | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping, quarry stripping. |
Final compatibility can vary by Caterpillar 328D LCR configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Caterpillar 328D LCR
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Caterpillar 328D LCR. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground in heavy-duty environments.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, boom and stick configuration, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Caterpillar 328D LCR specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
Ready to quote attachments for your Caterpillar 328D LCR?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the Caterpillar 328D LCR carrier class, hydraulic setup, mounting requirements, and work conditions.
