Caterpillar 320E Compatible Attachments

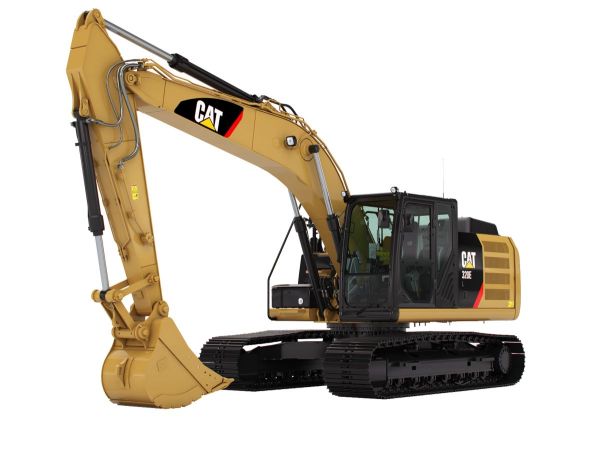

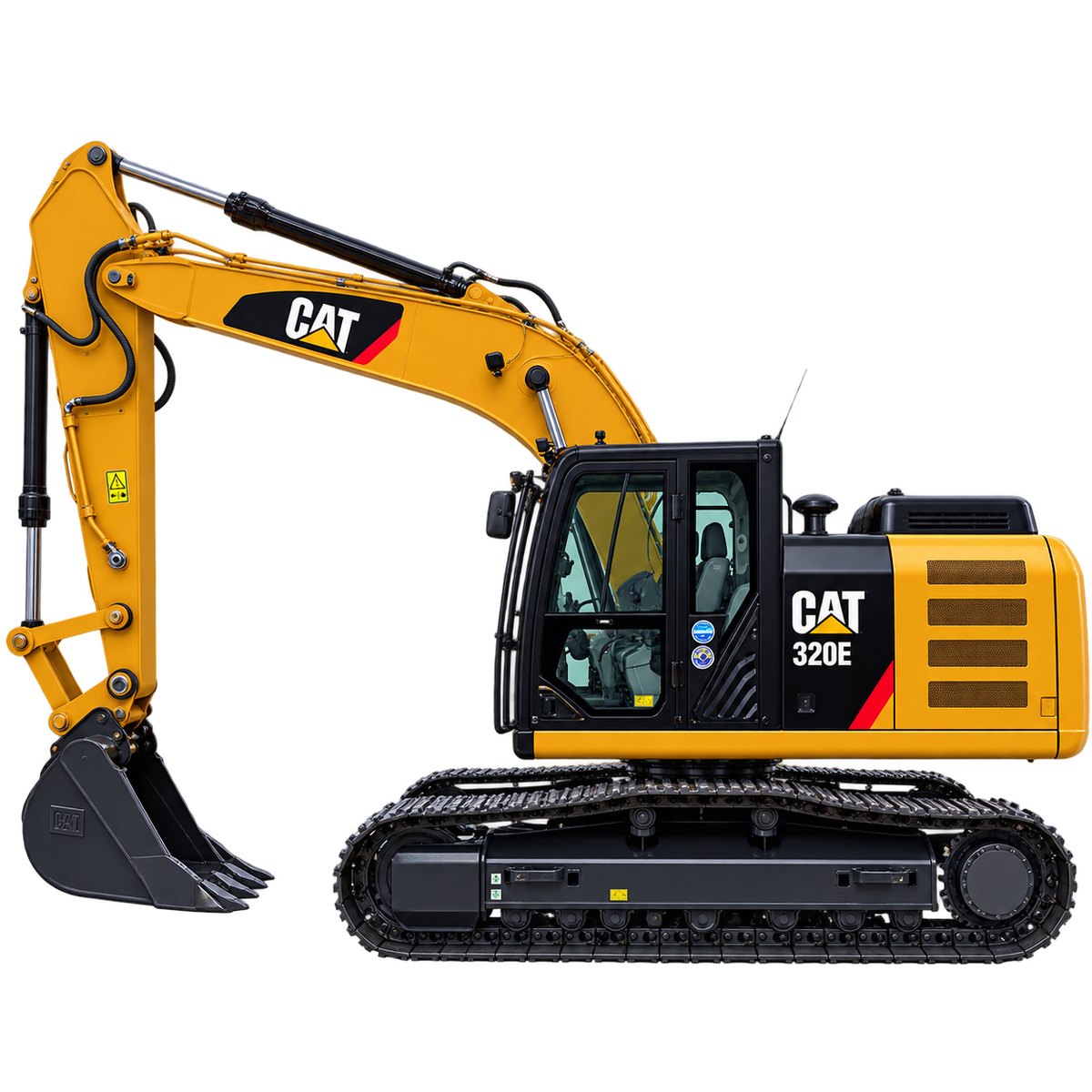

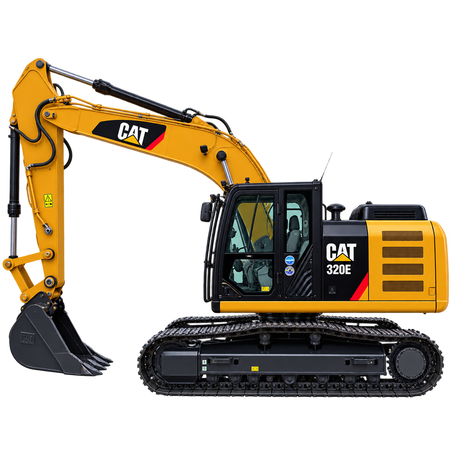

The Caterpillar 320E is a hydraulic excavator built for general, quarry, and heavy construction applications. Powered by the Cat C6.6 ACERT engine delivering 114 kW (155 hp), this E Series machine offers improved productivity, reduced fuel consumption, and enhanced operator comfort for demanding job sites.
Attachment fitment for the Caterpillar 320E should be checked against the machine's carrier weight, hydraulic flow, auxiliary circuit setup, pin dimensions, coupler style, and the type of material being handled or broken. BHE Attachments can help review these details before quoting or installing an attachment.
Caterpillar 320E Attachment Matches
The attachment categories below are organized for the Caterpillar 320E carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Caterpillar 320E when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support.
Montabert breaker models previously identified for review with this carrier class include the SC22, SC28, and SC36. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Caterpillar 320E should match the work being performed. Digging buckets are commonly used for excavation and trenching, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The 320E offers General Duty, Heavy Duty, and Severe Duty bucket categories.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Caterpillar 320E's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on job sites.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The CW Series quick coupler enables rapid tool changes while maintaining top machine performance.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Caterpillar 320E when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The CVP110 vibratory plate compactor is a common match for this carrier class.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Caterpillar 320E when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The 320E delivers high breakout forces with heavy duty power configuration.
Crushers, Pulverizers & Shears
Multi-processors, crushers, pulverizers, and demolition shears are available for the Caterpillar 320E when the job involves demolition, scrap processing, concrete crushing, or material separation.
These heavy-duty attachments should be reviewed for hydraulic flow requirements, mounting bracket compatibility, jaw configuration, and the specific material being processed. The MP15 multi-processor and P315 crusher are common matches for this carrier.
Caterpillar 320E Jobsite Applications
These application notes help connect the Caterpillar 320E to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Caterpillar 320E is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or demolition prep. The SC22, SC28, and SC36 Montabert breakers are sized for this carrier class.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, foundations, roadwork, and general excavation. The 320E offers multiple boom and stick configurations for various dig depths.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup. The 320E's SmartBoom feature reduces stress and vibrations during grading operations.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Caterpillar 320E needs to handle debris, brush, pipe, demolition material, or irregular objects. The CW quick coupler allows one-person tool changes in seconds.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed. The CVP110 vibratory plate compactor is designed for this carrier class.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation. The 320E's high breakout forces make it well suited for pre-excavation ripping work.
Demolition & Scrap Processing
Use multi-processors, crushers, pulverizers, or demolition shears when the Caterpillar 320E is assigned to building demolition, concrete crushing, scrap metal processing, or material separation tasks.
Long Reach & Ditch Cleaning
Use the Super Long Reach boom configuration for ditch cleaning, river maintenance, and slope work where extended reach at ground level is required.
Variable Angle Work
Use the VA (Variable Angle) boom configuration when the job requires flexibility in the working envelope, allowing boom adjustment from retracted to fully extended for maximum versatility.
Attachment Fitment Factors
The Caterpillar 320E should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight and excavator size class.
- Check pin diameter, pin spread, stick width, and coupler configuration (pin-on or CW quick coupler).
- Match the attachment bracket to the Caterpillar 320E mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating (GD, HD, or SD).
- Verify boom type (Reach, Super Long Reach, or VA) and stick length for proper reach and dig depth.
Hydraulic & Application Requirements
- Confirm hydraulic flow and pressure for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing.
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
- Consider the 320E's two power modes (high power and economy) for fuel-efficient attachment operation.
Caterpillar 320E Attachment Overview
Use this table as a quick reference for matching common Caterpillar 320E attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Caterpillar 320E | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Caterpillar 320E | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, site development. |
| Caterpillar 320E | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| Caterpillar 320E | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Caterpillar 320E | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
| Caterpillar 320E | Multi-Processors, Crushers & Shears | Demolition, concrete crushing, scrap processing, and material separation. | Hydraulic flow, pressure, jaw configuration, mounting bracket, and material type. | Building demolition, concrete recycling, scrap yards, material sorting. |
Final compatibility can vary by Caterpillar 320E configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Caterpillar 320E
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, multi-processors, and specialty tools for the Caterpillar 320E. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, preparing hard ground, or performing demolition work.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, boom and stick configuration, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Caterpillar 320E specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
Ready to quote attachments for your Caterpillar 320E?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the Caterpillar 320E carrier class, hydraulic setup, mounting requirements, and work conditions.
