Caterpillar 320C L Utility Compatible Attachments

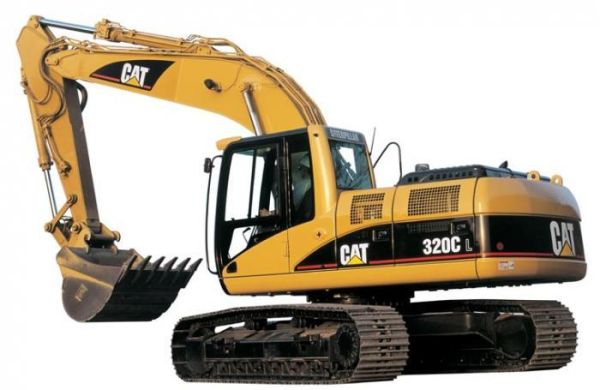

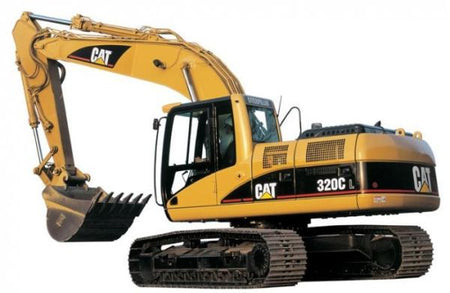

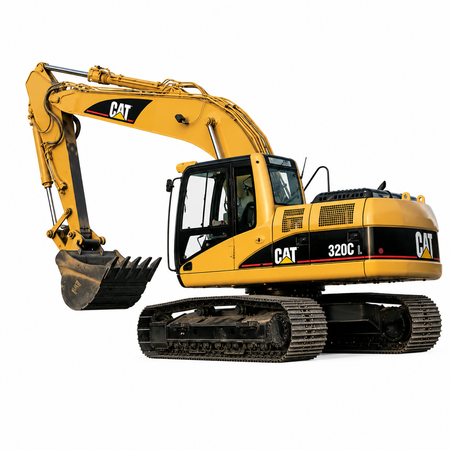

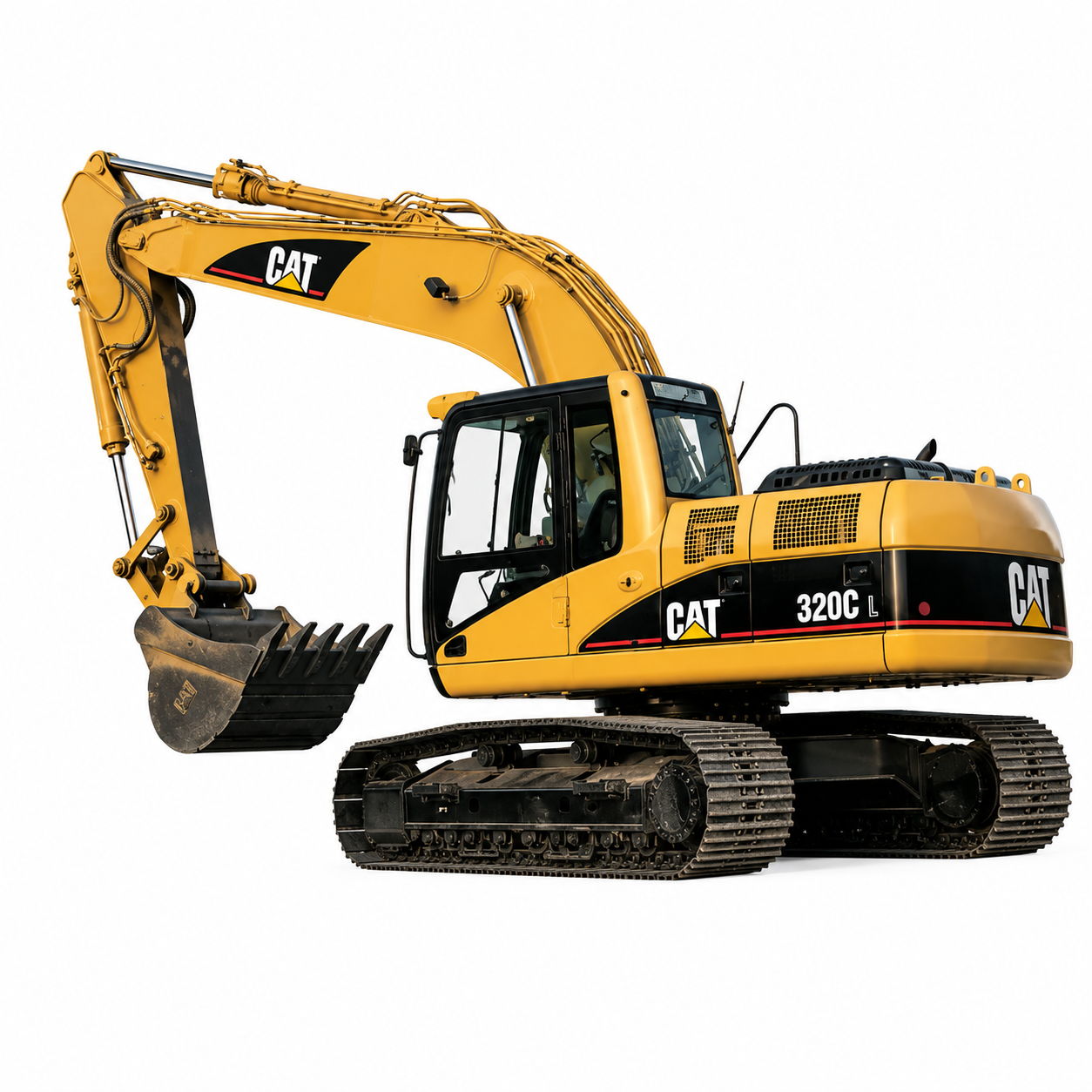

The Caterpillar 320C L Utility is a 20-ton class hydraulic excavator with a reduced tail swing design for working in space-restricted sites. It maintains the same level of operating performance as the standard 320C L while offering added flexibility for urban construction, logging roads, and confined areas. The machine is commonly used for excavation, trenching, utility work, grading, road repair, site preparation, and demolition support.
This page focuses on attachment compatibility for the Caterpillar 320C L Utility, especially hydraulic breakers, hammers, buckets, couplers, thumbs, compactors, grapples, rippers, and related excavator tools. Fitment should be checked against the machine's carrier weight, hydraulic flow, auxiliary circuit setup, pin dimensions, coupler style, mounting bracket, and the type of material being handled or broken.
Caterpillar 320C L Utility Attachment Matches
The attachment categories below are organized for the Caterpillar 320C L Utility carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Caterpillar 320C L Utility when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support.
Montabert breaker models previously identified for review with this carrier class include M900, V32, XL1700, XL1900, and V1800. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Caterpillar 320C L Utility should match the work being performed. Digging buckets are commonly used for excavation and trenching, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The 320C L Utility uses the same reach boom, sticks, and buckets as the standard 320C L for proven flexibility and versatility.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Caterpillar 320C L Utility's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on job sites.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The Pin Grabber Plus Hydraulic Quick Coupler is available from the factory for added versatility.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Caterpillar 320C L Utility when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Caterpillar 320C L Utility when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup.
Caterpillar 320C L Utility Jobsite Applications
These application notes help connect the Caterpillar 320C L Utility to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Caterpillar 320C L Utility is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or demolition prep. The reduced tail swing allows work closer to structures and in confined urban areas.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, foundations, roadwork, and general excavation. Multiple stick lengths are available to match reach and digging depth requirements.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup. The automatic boom and swing priority function selects the best mode based on joystick movement for smooth grading operations.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Caterpillar 320C L Utility needs to handle debris, brush, pipe, demolition material, or irregular objects. The heavier counterweight provides similar lifting performance to the standard 320C L for stable material handling.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation. The strong drawbar pull supports work on sloped or uneven terrain.
Attachment Fitment Factors
The Caterpillar 320C L Utility should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight and excavator size class.
- Check pin diameter, pin spread, stick width, and coupler configuration.
- Match the attachment bracket to the Caterpillar 320C L Utility mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
Hydraulic & Application Requirements
- Confirm hydraulic flow and pressure requirements for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing. Factory-installed auxiliary hydraulics include optional hammer circuit, thumb circuit, and tool control system.
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Caterpillar 320C L Utility Attachment Overview
Use this table as a quick reference for matching common Caterpillar 320C L Utility attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Caterpillar 320C L Utility | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. Compatible: M900, V32, XL1700, XL1900, V1800. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Caterpillar 320C L Utility | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, site development. |
| Caterpillar 320C L Utility | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| Caterpillar 320C L Utility | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Caterpillar 320C L Utility | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by Caterpillar 320C L Utility configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Caterpillar 320C L Utility
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Caterpillar 320C L Utility. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, and a short description of the work being performed.
