Caterpillar 316F L Compatible Attachments

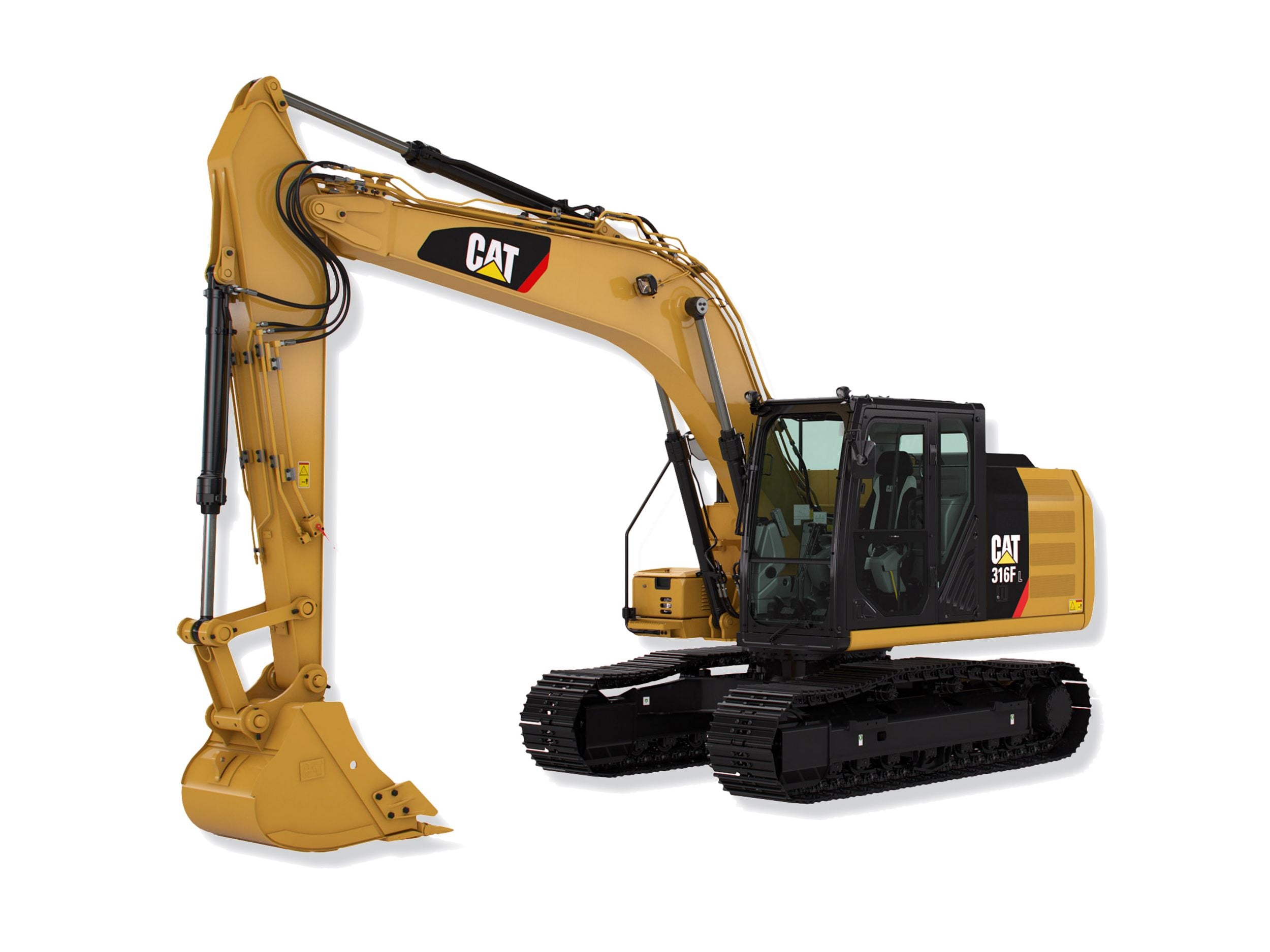

The Caterpillar 316F L is a 16-ton class hydraulic excavator built for demanding jobs that require power, precision, and fuel efficiency. Powered by the Cat C4.4 ACERT engine delivering 88 kW (117 hp), this machine excels at demolition, heavy excavation, utility work, and site preparation where reliability and versatility are critical.
Attachment fitment for the Caterpillar 316F L should be checked against the machine's carrier weight, hydraulic flow and pressure, pin dimensions, stick configuration, and the material being handled. BHE Attachments can help review these details before quoting or installing an attachment.
Caterpillar 316F L Attachment Matches
The attachment categories below are organized for the Caterpillar 316F L carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Caterpillar 316F L when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support on demanding job sites.
Montabert breaker models previously identified for review with this carrier class include the M900 and XL1300. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Caterpillar 316F L should match the work being performed. Digging buckets are commonly used for heavy excavation and trenching, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The 316F L offers a reach boom with 6,090 mm maximum dig depth and strong bucket and stick forces for tough digging conditions.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Caterpillar 316F L's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on busy job sites.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The 316F L features a modified X-frame structure for enhanced stability when handling heavy or irregular loads.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Caterpillar 316F L when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation on larger-scale projects.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The 316F L delivers 300 L/min total main system flow with 35 MPa maximum pressure for powerful attachment operation.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Caterpillar 316F L when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The 316F L delivers 111 kN bucket digging force and 80 kN stick digging force for tough ground conditions.
Caterpillar 316F L Jobsite Applications
These application notes help connect the Caterpillar 316F L to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Caterpillar 316F L is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or demolition prep on demanding sites.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, foundations, roadwork, and general heavy excavation.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup on larger job sites.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Caterpillar 316F L needs to handle debris, brush, pipe, demolition material, or irregular objects on busy construction sites.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed on medium-to-large projects.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation on challenging terrain.
Attachment Fitment Factors
The Caterpillar 316F L should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (17,420 kg minimum / 18,010 kg maximum) and excavator size class.
- Check pin diameter, pin spread, stick width, and coupler configuration.
- Match the attachment bracket to the Caterpillar 316F L mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
- Verify boom and stick configuration (reach boom 5.1 m with R2.6 m stick) for optimal reach and digging performance.
Hydraulic & Application Requirements
- Confirm hydraulic flow (300 L/min total main system) and pressure (35 MPa equipment, 23 MPa swing) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing for tool control and quick coupler compatibility.
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Caterpillar 316F L Attachment Overview
Use this table as a quick reference for matching common Caterpillar 316F L attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Caterpillar 316F L | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material on demanding sites. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Caterpillar 316F L | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, site development. |
| Caterpillar 316F L | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| Caterpillar 316F L | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Caterpillar 316F L | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by Caterpillar 316F L configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Caterpillar 316F L
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Caterpillar 316F L. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground on demanding job sites.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, stick configuration, and a short description of the work being performed.
