Caterpillar 302.7D CR
Couldn't load pickup availability
Ask an expert
Caterpillar 302.7D CR Compatible Attachments

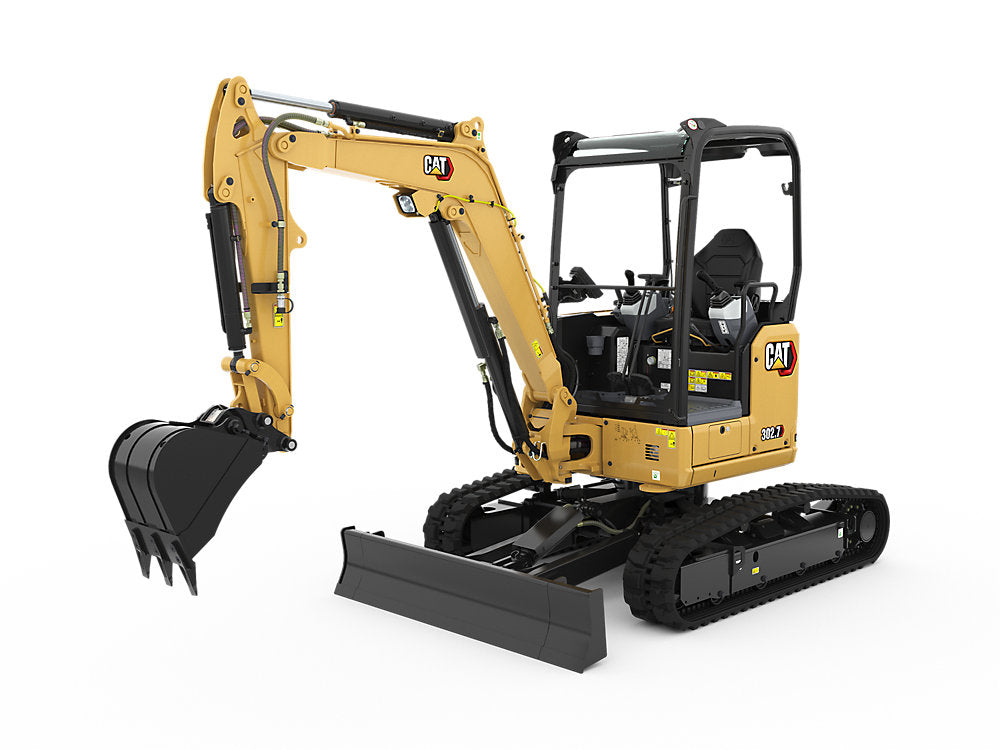

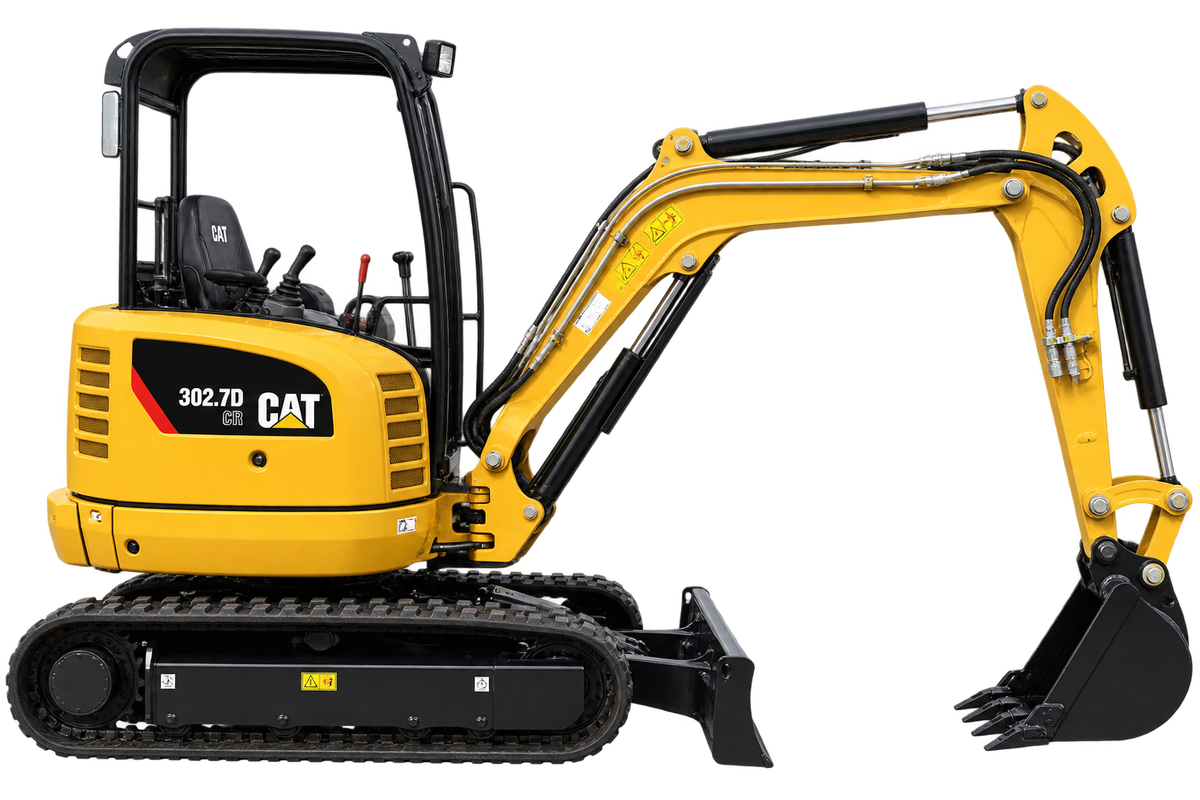

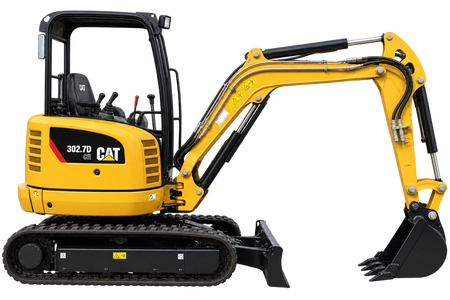

The Caterpillar 302.7D CR is a 2.7-ton class compact-radius mini hydraulic excavator, purpose-built for working in confined spaces where maneuverability and operator confidence are paramount. Powered by the Yanmar 3TNV76 engine delivering 15.2 kW (20.7 hp) rated net power and 17.9 kW (24.3 hp) gross power, this machine combines compact dimensions with robust construction for residential excavation, utility trenching, landscaping, grading, and light demolition in tight-access environments.
With a true zero tail swing configuration and transport weight below 2.7 tonnes, the 302.7D CR is designed for easy trailer transportation using a standard passenger vehicle. Attachment fitment should be checked against the machine's carrier weight, hydraulic flow and pressure, pin dimensions, stick configuration, and the material being handled. BHE Attachments can help review these details before quoting or installing an attachment.
Caterpillar 302.7D CR Attachment Matches
The attachment categories below are organized for the Caterpillar 302.7D CR carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Caterpillar 302.7D CR when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support in extremely confined residential and commercial spaces.
Montabert breaker models previously identified for review with this carrier class include the SC16 and SC22. Final selection should be based on the carrier's hydraulic flow of 89.4 L/min at 2,500 rpm with 225 bar operating pressure, breaker weight, bracket setup, and duty cycle. The machine comes standard with hammer and two-way auxiliary lines with quick disconnect fittings.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Caterpillar 302.7D CR should match the work being performed. Digging buckets are commonly used for excavation and trenching in tight utility and landscaping projects, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading alongside the standard dozer blade.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The 302.7D CR offers standard and long stick options with 2,544 mm and 2,744 mm maximum digging depths respectively. The machine is also thumb-ready with pre-configured brackets and relief valves for simple hydraulic thumb mounting.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Caterpillar 302.7D CR's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on compact job sites where space is at a premium.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The 302.7D CR features a boom swing of 75° left and 50° right for enhanced maneuverability in tight spaces, with simultaneous upper body swing and boom offset control for faster positioning.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Caterpillar 302.7D CR when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation in very compact work zones.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The 302.7D CR delivers 89.4 L/min pump flow at 2,500 rpm with 225 bar equipment operating pressure for smooth powered attachment operation. Adjustable hydraulic flow control is available on machines with proportional auxiliary hydraulics.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Caterpillar 302.7D CR when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The 302.7D CR delivers 22.5 kN maximum bucket force and 15.4 kN standard stick force for tough ground conditions. Steel bushings on all front linkage pivot points provide long life and easy replacement.
Caterpillar 302.7D CR Jobsite Applications
These application notes help connect the Caterpillar 302.7D CR to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Caterpillar 302.7D CR is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or demolition prep in confined spaces.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, residential foundations, landscaping, and general excavation in very tight areas.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup in compact job sites. The standard dozer blade with dozer float function simplifies ground leveling and site clean-up.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Caterpillar 302.7D CR needs to handle debris, brush, pipe, demolition material, or irregular objects in restricted spaces.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed in limited work areas.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation in residential or utility settings.
Attachment Fitment Factors
The Caterpillar 302.7D CR should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (2,670 kg with cab / 2,577 kg with canopy) and excavator size class.
- Check pin diameter, pin spread, stick width, and coupler configuration.
- Match the attachment bracket to the Caterpillar 302.7D CR mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
- Verify stick length (standard or long) and compact dimensions for transport and access needs.
- Consider optional additional counterweight for increased lifting capability (standard in North America and Australia).
Hydraulic & Application Requirements
- Confirm hydraulic flow (89.4 L/min at 2,500 rpm) and pressure (225 bar equipment, 206 bar swing) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing (primary 52.2 L/min at 225 bar and secondary 30.8 L/min at 206 bar circuits available).
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Caterpillar 302.7D CR Attachment Overview
Use this table as a quick reference for matching common Caterpillar 302.7D CR attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Caterpillar 302.7D CR | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material in tight spaces. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Caterpillar 302.7D CR | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, landscaping, site development. |
| Caterpillar 302.7D CR | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| Caterpillar 302.7D CR | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Caterpillar 302.7D CR | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by Caterpillar 302.7D CR configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Caterpillar 302.7D CR
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Caterpillar 302.7D CR. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground in tight-access environments.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, stick length, and a short description of the work being performed.
