Caterpillar 300.9D Compatible Attachments

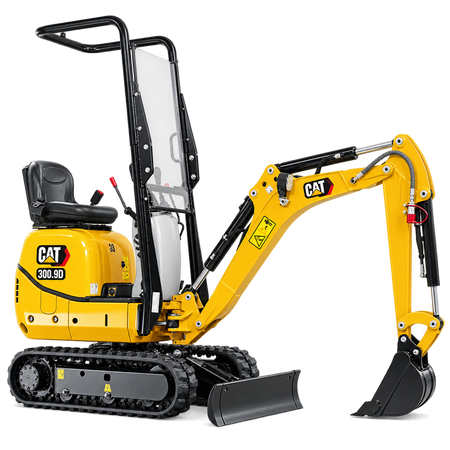

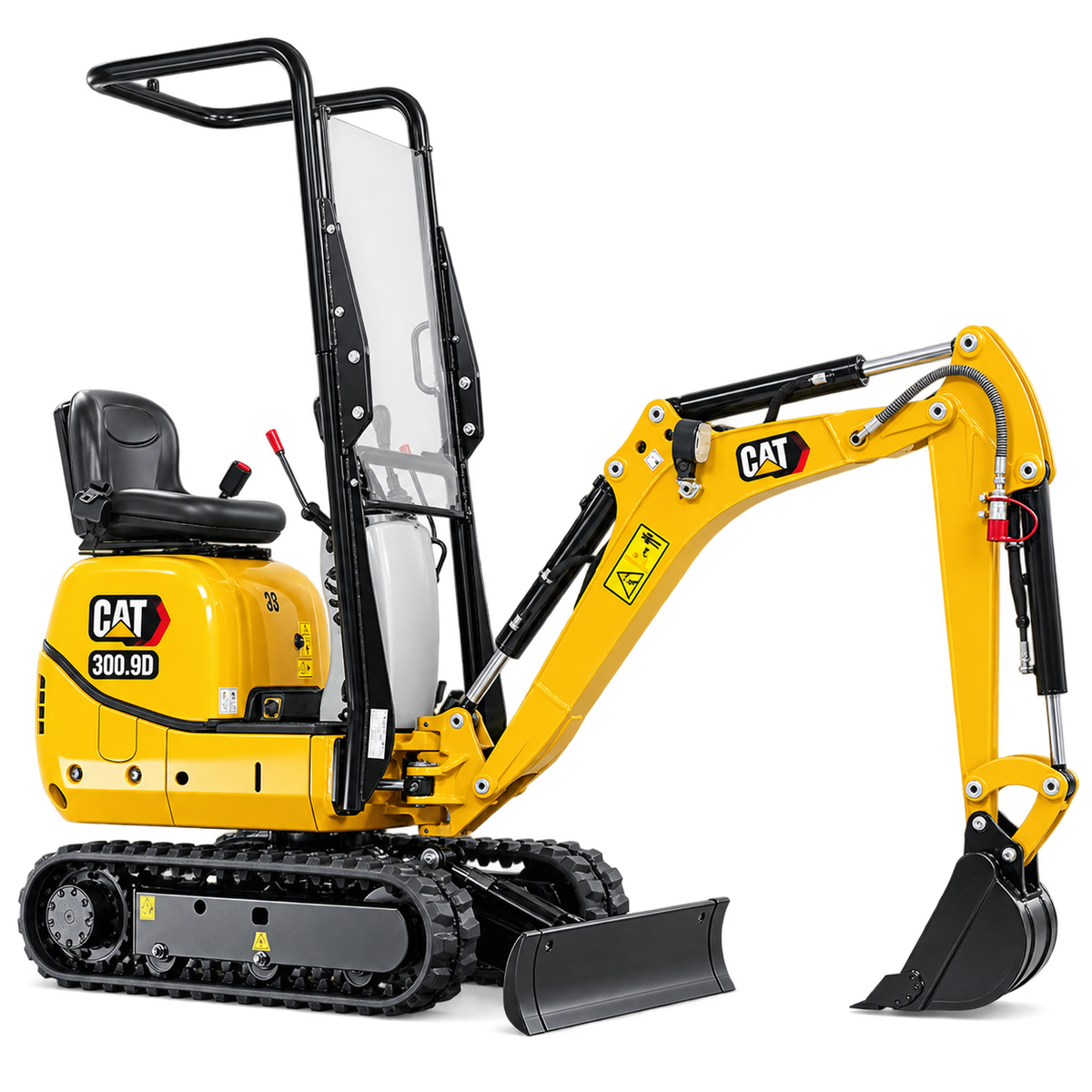

The Cat 300.9D is a compact hydraulic excavator designed for excavation, trenching, utility work, grading, and other tasks in confined work areas. Its compact dimensions and attachment-ready hydraulic system make it suitable for a range of small excavator attachments. This guide covers attachment compatibility for the 300.9D, with emphasis on breakers, hammers, buckets, couplers, thumbs, compactors, grapples, rippers, and other job-matched tools.
Before selecting an attachment for the 300.9D, verify the machine configuration, hydraulic requirements, mounting dimensions, coupler or quick-hitch style, attachment weight, and the material or task involved. BHE Attachments can help review these factors before you request a quote or install an attachment.
Caterpillar 300.9D Attachment Matches
Browse the attachment categories below for the 300.9D. Final fit must be confirmed against your machine's exact configuration, mounting dimensions, coupler style, hydraulic requirements, and jobsite demands.
Hydraulic Breakers for Concrete, Rock & Asphalt
Breakers and hammers are a natural fit for the 300.9D when you need to fracture concrete, break rock, remove asphalt, or clear obstructions in trenches and demolition zones.
For the Caterpillar 300.9D, the Montabert SC6 is identified for fitment review. Final breaker compatibility can depend on machine weight, hydraulic flow, pressure, mounting configuration, and application.
Digging, Trenching, Grading & Cleanup Buckets
Match the bucket to the task. Compact digging buckets handle excavation and trenching, while grading and cleanup buckets are suited to ditching, surface shaping, backfill finishing, and cleanup work.
Fitment checks should cover pin diameter and spread, stick width, coupler or quick-hitch type, bucket width and capacity, tooth profile, edge configuration, and ground conditions.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples extend what the 300.9D can handle on site-rapid attachment swaps, debris and brush cleanup, pipe placement, demolition sorting, and irregular load handling.
Review stick geometry, thumb reach, coupler type, hydraulic line routing, bracket design, and the machine's lift and stability ratings before selecting these tools.
Plate Compactors for Trench & Backfill Work
Plate compactors are worth reviewing for the 300.9D when the job calls for compacting trench backfill, utility bedding, road repair bases, or general site-prep surfaces.
Key fitment items include attachment weight, hydraulic flow and pressure range, mounting bracket, hose routing, and the compaction footprint needed for the work area.
Rippers & Specialty Excavator Tools
When the 300.9D faces compacted soil, frost, hardpan, or rocky subgrade, a ripper or specialty ground-engagement tool can loosen material before the bucket takes over.
Selection depends on material hardness, required breakout force, carrier class, mounting interface, and whether the tool is used for pre-excavation ripping or demolition cleanup.
Caterpillar 300.9D Jobsite Applications
Match the attachment to the task. The notes below link common 300.9D work scenarios to the tools best suited for each.
Concrete & Rock Breaking
Deploy a correctly sized hydraulic breaker or hammer when the 300.9D is tasked with concrete demolition, rock fracturing, asphalt removal, trench obstruction clearing, or teardown prep.
Excavation & Trenching
Fit digging, trenching, or suitable ground-engagement buckets for utility work, drainage lines, landscaping, site preparation, and general earthmoving.
Grading & Cleanup
Grading, cleanup, and ditching buckets give the 300.9D the edge for finish contouring, slope dressing, ditch maintenance, loose material cleanup, and surface finishing.
Material Handling
Thumbs, grapples, and coupler-based tools let the 300.9D grab debris, brush, pipe sections, demolition fragments, and odd-shaped loads that a bucket alone cannot secure.
Compaction
A plate compactor adds value when the 300.9D is backfilling trenches, repairing utility cuts, restoring road bases, or preparing pads that require controlled density.
Hard Ground Preparation
A ripper or specialty ground tool breaks up compacted soil, frost layers, hardpan, or rocky subgrade so the bucket can follow through efficiently.
Attachment Fitment Factors
Pairing the right tool with the 300.9D means checking both machine-side specs and job-side demands. The points below help avoid mismatches that waste time and money.
Machine & Mounting Requirements
- Confirm the 300.9D's operating weight and compact machine configuration.
- Measure pin diameter, pin spread, stick width, and coupler or quick-hitch type.
- Align the attachment bracket with the 300.9D's mounting interface.
- Check attachment weight against the machine's lift capacity and stability requirements.
- For buckets, verify width, capacity, tooth style, edge type, and duty rating.
Hydraulic & Application Requirements
- Confirm hydraulic flow and pressure for powered attachments.
- Verify auxiliary circuit layout, control mapping, and hose routing.
- Choose breaker tool profiles-moil, chisel, blunt, or specialty-based on material.
- Match the attachment to the target material: concrete, rock, asphalt, soil, brush, or debris.
- Factor in duty cycle, production targets, operator skill, and site conditions before finalizing.
Caterpillar 300.9D Attachment Overview
Use this table as a quick reference to connect each attachment category to its primary purpose on the 300.9D.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Caterpillar 300.9D | Hydraulic Breakers & Hammers | Fracturing concrete, rock, asphalt, and other hard materials. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Caterpillar 300.9D | Excavator Buckets | Earthmoving, trenching, grading, ditching, cleanup, and load handling. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, site development. |
| Caterpillar 300.9D | Couplers, Thumbs & Grapples | Swapping attachments and handling loose, bulky, or irregular loads. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush removal, pipe placement, demolition cleanup. |
| Caterpillar 300.9D | Plate Compactors | Densifying trench backfill, soil, and utility repair zones. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Caterpillar 300.9D | Rippers & Specialty Tools | Loosening compacted or hard ground before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility varies by Caterpillar 300.9D configuration, mounting dimensions, hydraulic setup, and job application. Always confirm fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Caterpillar 300.9D
BHE Attachments can compare breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the 300.9D. The ideal attachment hinges on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground.
To narrow the field, share the serial number if you have it, current coupler or quick-hitch setup, hydraulic flow and pressure readings, pin dimensions, and a brief description of the work.
