Bobcat E50 R2 Compatible Attachments

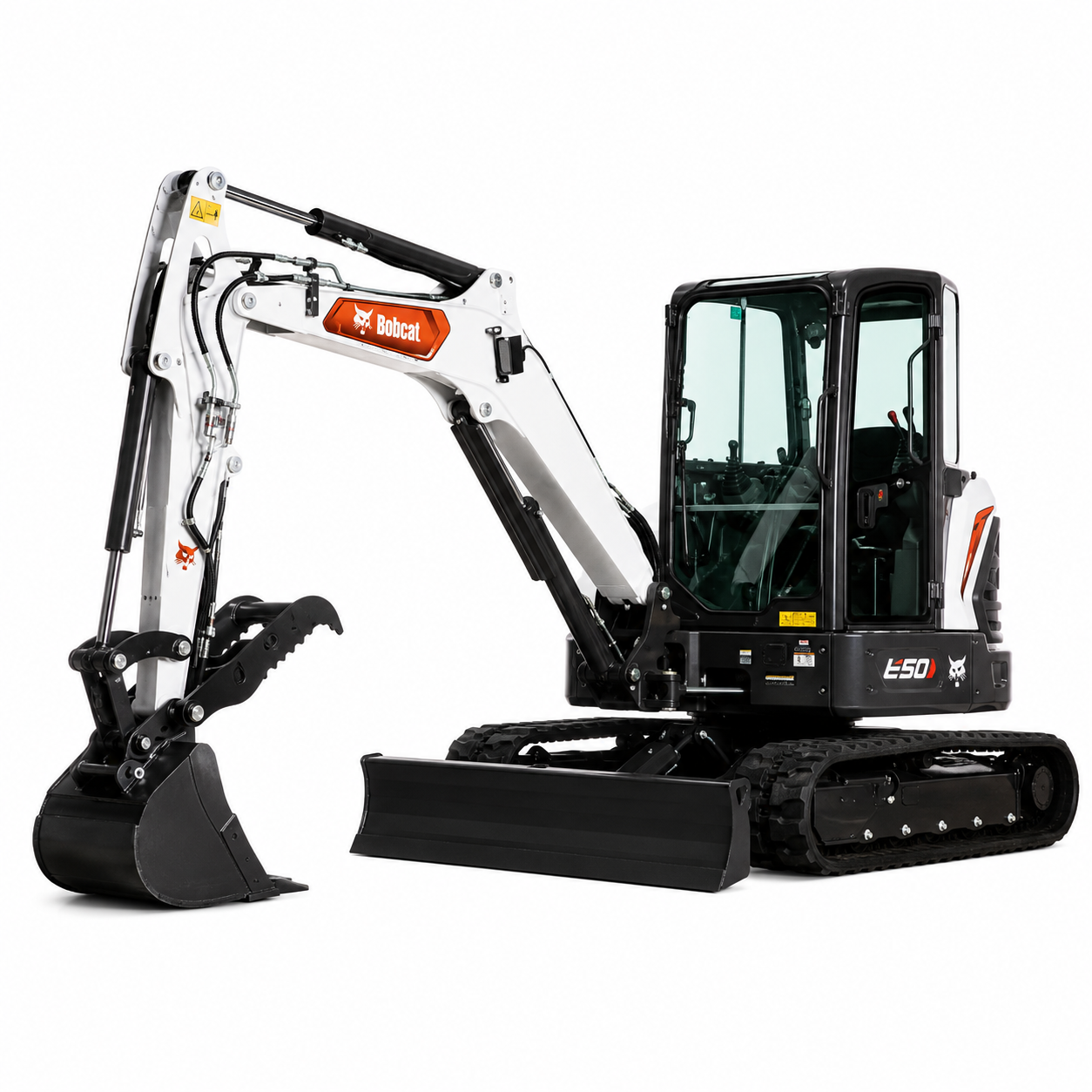

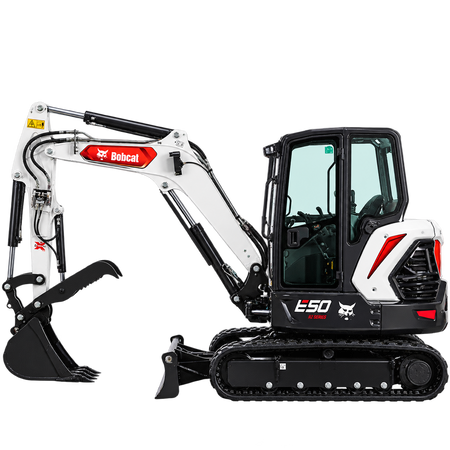

The Bobcat E50 R2 is a 5-ton class compact excavator engineered for versatility and productivity in tight-access work environments. Powered by the Bobcat D18 engine delivering 36.54 kW (49.68 hp), this machine is ideal for residential excavation, utility trenching, landscaping, backfilling, and light demolition where minimal tail swing and selectable auxiliary hydraulic flow are essential.
Attachment fitment for the Bobcat E50 R2 should be checked against the machine's carrier weight, hydraulic flow and pressure, pin dimensions, stick configuration, and the material being handled. BHE Attachments can help review these details before quoting or installing an attachment.
Bobcat E50 R2 Attachment Matches
The attachment categories below are organized for the Bobcat E50 R2 carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Bobcat E50 R2 when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support in confined residential and commercial spaces.
Montabert breaker models previously identified for review with this carrier class include the SC28 and SC36. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Bobcat E50 R2 should match the work being performed. Digging buckets are commonly used for excavation and trenching in tight utility and landscaping projects, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading alongside the standard dozer blade.
Bucket fitment should be checked by pin diameter, pin spread, stick width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The E50 R2 offers standard and long arm options with 3.5 m and 3.9 m maximum dig depths respectively.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Bobcat E50 R2's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on compact job sites where space is at a premium.
These tools should be reviewed for stick geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The E50 R2 features a boom swing of 75° left and 50° right for enhanced maneuverability in tight spaces.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Bobcat E50 R2 when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation in compact work zones.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The E50 R2 delivers 75.7 L/min auxiliary standard flow with 209.95 bar auxiliary pressure for smooth powered attachment operation.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Bobcat E50 R2 when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The E50 R2 delivers 42,307 N bucket digging force and 31,080 N arm digging force for tough ground conditions.
Bobcat E50 R2 Jobsite Applications
These application notes help connect the Bobcat E50 R2 to the attachment type most often used for each kind of work.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Bobcat E50 R2 is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or demolition prep in confined spaces.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, residential foundations, landscaping, and general excavation in very tight areas.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup in compact job sites. The standard 1,961 mm blade width simplifies ground leveling.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Bobcat E50 R2 needs to handle debris, brush, pipe, demolition material, or irregular objects in restricted spaces.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed in limited work areas.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation in residential or utility settings.
Attachment Fitment Factors
The Bobcat E50 R2 should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (5,151 kg standard / 5,395 kg long arm) and excavator size class.
- Check pin diameter, pin spread, stick width, and coupler configuration.
- Match the attachment bracket to the Bobcat E50 R2 mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
- Verify arm length (standard or long) and compact dimensions for transport and access needs.
Hydraulic & Application Requirements
- Confirm hydraulic flow (75.7 L/min auxiliary standard) and pressure (209.95 bar auxiliary) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing (selectable auxiliary hydraulic flow available).
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Bobcat E50 R2 Attachment Overview
Use this table as a quick reference for matching common Bobcat E50 R2 attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Bobcat E50 R2 | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material in tight spaces. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Bobcat E50 R2 | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, landscaping, site development. |
| Bobcat E50 R2 | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Stick geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| Bobcat E50 R2 | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Bobcat E50 R2 | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by Bobcat E50 R2 configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Bobcat E50 R2
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Bobcat E50 R2. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground in tight-access environments.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, arm length, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Bobcat E50 R2 specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
Ready to quote attachments for your Bobcat E50 R2?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the Bobcat E50 R2 carrier class, hydraulic setup, mounting requirements, and work conditions.
