Bobcat E42 Compatible Attachments

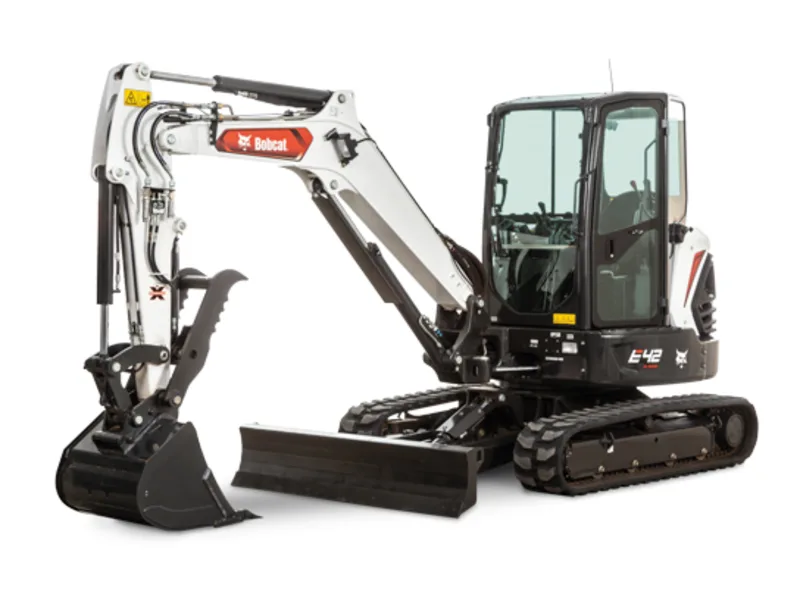

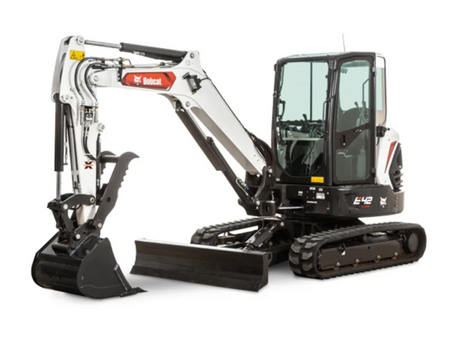

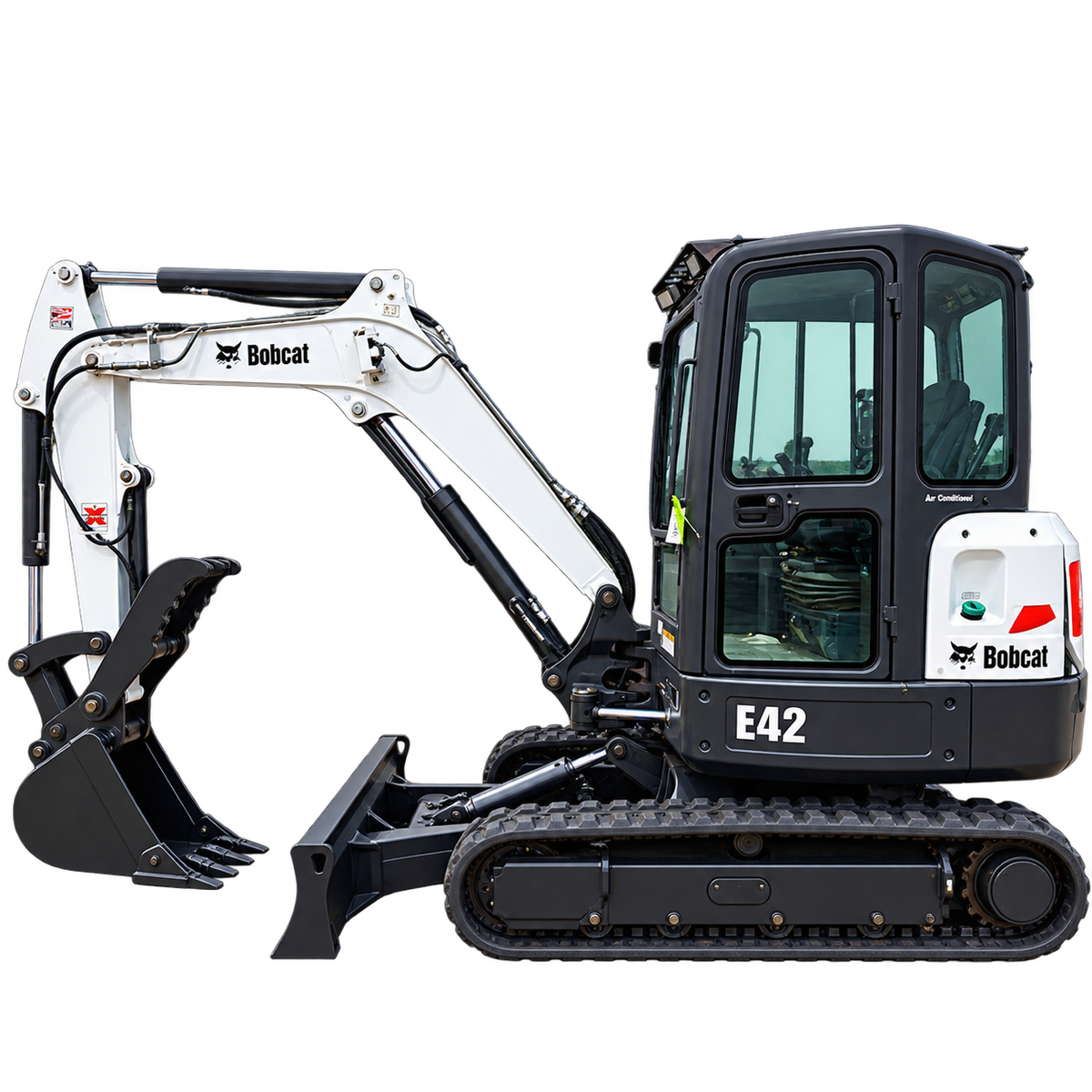

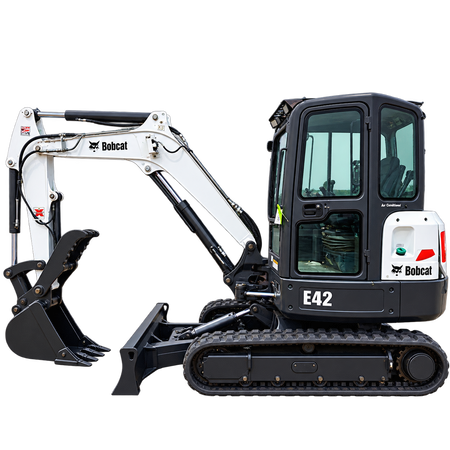

The Bobcat E42 is a conventional tail-swing compact excavator in the 4.2-ton class, engineered for reliable performance in tight-access jobsites. With an Interim Tier 4 diesel engine producing 31.2 kW, this machine is commonly used for residential excavation, utility trenching, landscaping, backfilling, grading, and light demolition work where a compact footprint is essential.
Attachment fitment for the Bobcat E42 should be checked against the machine's carrier weight, hydraulic flow and pressure, pin dimensions, arm configuration, and the material being handled. BHE Attachments can help review these details before quoting or installing an attachment.
Bobcat E42 Attachment Matches
The attachment categories below are organized for the Bobcat E42 carrier class. Final compatibility should be confirmed using the exact machine configuration, hydraulic setup, mounting dimensions, coupler style, and job application.
Hydraulic Breakers for Concrete, Rock & Asphalt
Hydraulic breakers and hammers are a key attachment match for the Bobcat E42 when the job requires concrete breaking, rock breaking, asphalt removal, trenching through hard material, or demolition support in confined residential and commercial spaces.
Montabert breaker models previously identified for review with this carrier class include the SC28 and SC36. Final selection should be based on the carrier's hydraulic flow, operating pressure, breaker weight, bracket setup, and duty cycle.
Digging, Trenching, Grading & Cleanup Buckets
Bucket selection for the Bobcat E42 should match the work being performed. Digging buckets are commonly used for excavation and trenching in utility and landscaping projects, while grading or cleanup buckets are better suited for ditching, slope work, backfill shaping, and finish grading alongside the optional angle blade.
Bucket fitment should be checked by pin diameter, pin spread, arm width, coupler configuration, width, capacity, tooth style, edge type, and material conditions. The E42 offers standard and long arm options with 3.2 m and 3.5 m maximum dig depths respectively.
Couplers, Thumbs & Grapples
Couplers, thumbs, and grapples can improve the Bobcat E42's usefulness for attachment changes, debris handling, brush handling, demolition cleanup, pipe handling, and sorting material on compact job sites.
These tools should be reviewed for arm geometry, thumb length, coupler type, hydraulic plumbing, bracket style, and the machine's lifting and stability limits. The E42 features a quick tach system and selectable auxiliary hydraulic flow for versatile attachment operation.
Plate Compactors for Trench & Backfill Work
Plate compactors can be reviewed for the Bobcat E42 when the work involves trench compaction, utility installation, backfill compaction, road repair, or site preparation in compact work zones.
Compactor compatibility should be confirmed by attachment weight, hydraulic flow, pressure range, mounting bracket, hose routing, and the compaction area required for the job. The E42 delivers 75.7 L/min auxiliary standard flow at 210 bar pressure for smooth powered attachment operation.
Rippers & Specialty Excavator Tools
Rippers and specialty tools may be considered for the Bobcat E42 when the machine is working in compacted soil, frost, hardpan, rocky material, or site preparation conditions where a standard bucket is not the most efficient first tool.
Tool selection should be based on material type, breakout needs, carrier size, mounting setup, and whether the tool will be used before bucket excavation or as part of demolition cleanup. The E42 delivers 40,850 N bucket digging force and 25,230 N arm digging force for tough ground conditions.
Bobcat E42 Jobsite Applications
These application notes help connect the Bobcat E42 to the attachment type most often used for each kind of work, especially in tight-access and residential environments.
Concrete & Rock Breaking
Use a properly sized hydraulic breaker or hammer when the Bobcat E42 is assigned to concrete removal, rock breaking, asphalt removal, trench obstruction removal, or demolition prep in confined spaces.
Excavation & Trenching
Use digging, trenching, or rock buckets when the machine is being used for utility installation, drainage work, residential foundations, landscaping, and general excavation in tight areas.
Grading & Cleanup
Use grading, cleanup, or ditching buckets when the job requires finish shaping, slope work, ditch cleaning, loose material handling, or surface cleanup in compact job sites. The optional angle blade further expands grading capability.
Material Handling
Use thumbs, grapples, or coupler-supported tools when the Bobcat E42 needs to handle debris, brush, pipe, demolition material, or irregular objects in restricted spaces.
Compaction
Use a plate compactor when the machine is supporting trench backfill, utility repair, road repair, or site preparation where controlled compaction is needed in limited work areas.
Hard Ground Preparation
Use a ripper or specialty ground-engagement tool when compacted soil, frost, hardpan, or rocky material needs to be loosened before excavation in residential or utility settings.
Attachment Fitment Factors
The Bobcat E42 should be matched with attachments using both machine specifications and jobsite requirements. These checks help reduce incorrect fitment, poor performance, and unnecessary attachment wear.
Machine & Mounting Requirements
- Confirm carrier operating weight (4,194–4,410 kg depending on arm option) and excavator size class.
- Check pin diameter, pin spread, arm width, and coupler configuration (quick tach system available).
- Match the attachment bracket to the Bobcat E42 mounting setup.
- Review attachment weight against machine lifting capacity and stability limits.
- For buckets, confirm width, capacity, tooth style, edge type, and application rating.
- Verify arm length (standard or long) and optional angle blade for reach and clearance needs.
Hydraulic & Application Requirements
- Confirm hydraulic flow (75.7 L/min auxiliary standard) and pressure (210 bar) for powered attachments.
- Verify auxiliary hydraulic circuit setup, controls, and hose routing (secondary auxiliary hydraulics available).
- Select breaker tools based on material, including moil point, chisel, blunt, or specialty tools.
- Match the attachment to the material being worked: concrete, rock, asphalt, soil, brush, or debris.
- Review duty cycle, production needs, operator use, and jobsite conditions before final selection.
Bobcat E42 Attachment Overview
Use this table as a quick reference for matching common Bobcat E42 attachment categories to their main purpose.
| Carrier Model | Attachment Type | Best Use | Fitment Checks | Typical Applications |
|---|---|---|---|---|
| Bobcat E42 | Hydraulic Breakers & Hammers | Breaking concrete, rock, asphalt, and hard material in tight spaces. | Hydraulic flow, pressure, breaker weight, bracket, tool type, and duty cycle. | Demolition, road repair, trenching, concrete removal, rock breaking. |
| Bobcat E42 | Excavator Buckets | Digging, trenching, grading, ditching, cleanup, and material loading. | Pin dimensions, coupler setup, bucket width, capacity, tooth style, and edge type. | Excavation, utility work, grading, drainage, landscaping, site development. |
| Bobcat E42 | Couplers, Thumbs & Grapples | Changing attachments and handling loose, bulky, or irregular material. | Arm geometry, coupler type, thumb length, hydraulic plumbing, and lift limits. | Debris handling, brush handling, pipe handling, demolition cleanup. |
| Bobcat E42 | Plate Compactors | Compacting trench backfill, soil, and utility repair areas. | Hydraulic flow, pressure range, compactor weight, bracket, and hose routing. | Trench compaction, road repair, backfill, utility installation, site prep. |
| Bobcat E42 | Rippers & Specialty Tools | Loosening compacted or hard material before excavation. | Carrier size, mounting setup, tooth design, material conditions, and breakout needs. | Hardpan, frost, rocky soil, site prep, pre-excavation ripping. |
Final compatibility can vary by Bobcat E42 configuration, coupler, pin dimensions, hydraulic setup, and job application. Always verify fitment before purchasing or installing an attachment.
Find the Right Attachment for Your Bobcat E42
BHE Attachments can help compare hydraulic breakers, buckets, couplers, thumbs, compactors, grapples, rippers, and specialty tools for the Bobcat E42. The best attachment depends on whether the machine will be breaking, digging, grading, compacting, handling material, or preparing hard ground in tight-access environments.
To narrow the right option, provide the machine serial number if available, current coupler setup, hydraulic flow and pressure information, pin dimensions, arm length, and a short description of the work being performed.
Need Help Confirming Compatibility?
BHE Attachments can review your Bobcat E42 specifications, hydraulic requirements, mounting setup, pin dimensions, coupler configuration, and application needs to help identify the right attachment category and product fit.
Ready to quote attachments for your Bobcat E42?
Send the machine setup and job application to BHE Attachments so the attachment recommendation can be matched to the Bobcat E42 carrier class, hydraulic setup, mounting requirements, and work conditions.
